SELECT A DIAGRAM

1 - Freezer Door

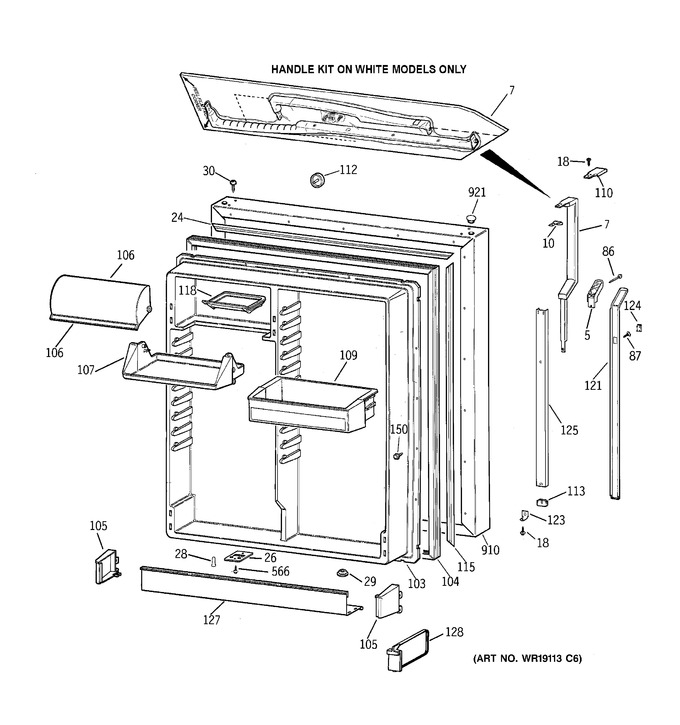

2 - Fresh Food Door


3 - Cabinet Parts


4 - Shelf Parts


5 - Compartment Separator Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR2X8714		Cap End		Appelez-nous	-
7	WR12X10176		Pk Handle Asm Wh		Appelez-nous	-
10	WR2X8002		Shim Handle Door		Appelez-nous	-
18	WR1X1726		Scr 10-16 Abx3/4 Ss		Appelez-nous	-
24	WR17X2279		Retainer Strip H		Appelez-nous	-
26	WR2X7681		Stop Door		Appelez-nous	-
28	WR2X7627		Thimble Door Plastic		Appelez-nous	-
29	WR2X8087		Plug Button Insert Wh		Appelez-nous	-
30	WR1X5475		Screw		Appelez-nous	-
86	WH2X940		Scr 8-32 Tt Fl 1/2 S		Appelez-nous	-
87	WZ04X0241		Screw		Appelez-nous	-
103	WR77X614		Door Inner Ff Dp		Appelez-nous	-
104	WR24X450		Gasket Door Ff Wh		Appelez-nous	-
105	WR2X8700		Cap Shelf Front Rh		Appelez-nous	-
105	WR2X8699		Cap Shelf Front Lh		Appelez-nous	-
106	WR38X1986		Trim Bright		Appelez-nous	-
106	WR22X473		Door Dairy (no Trim)		Appelez-nous	-
107	WR22X474		Extension Dairy		Appelez-nous	-
109	WR71X2566		Shelf Module Asm		Appelez-nous	-
110	WR2X8210		Cap Top		Appelez-nous	-
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
113	WR2X7980		Cap Trim Handle Btm		Appelez-nous	-
115	WR17X2280		Retainer Strip V		Appelez-nous	-
118	WR19X5003		Butter Dish		Appelez-nous	-
121	WR12X896		Insert Handle Ff Wh		Appelez-nous	-
123	WR2X8009		Trim Handle Btm		Appelez-nous	-
124	WR12X721		Plug Button Insert Wh		Appelez-nous	-
125	WR12X914		Channel Handle Ff		Appelez-nous	-
127	WR71X10127		Shelf Front Ff Full   (Replaces: WR71X2567)		Appelez-nous	-
128	WR2X7971		Snugger Module		Appelez-nous	-
150	WR1X1791		Screw		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
910	WR78X8730		Door Outer Ff Wh		Appelez-nous	-
921	WR2X7624		Plug Button Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
