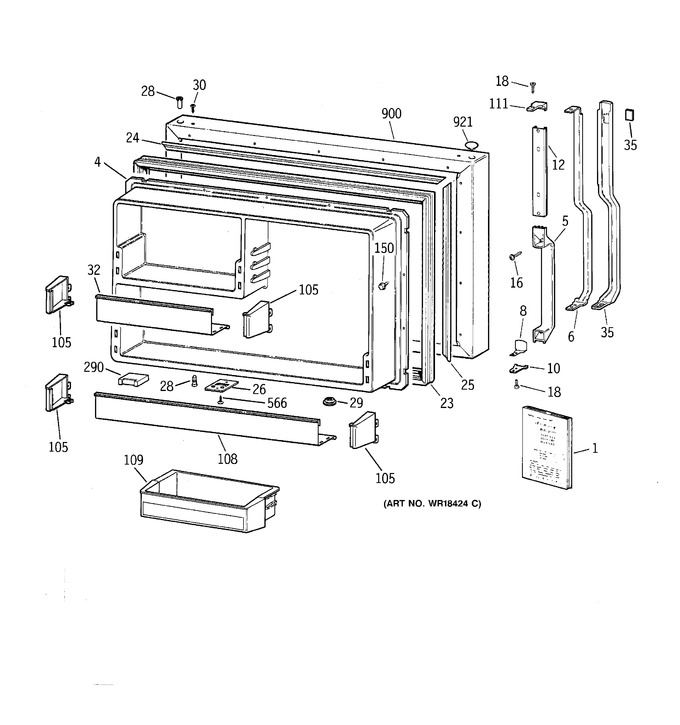

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet Parts


4 - Shelf Parts


5 - Compartment Separator Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51048		Mini Manual Wiring		Appelez-nous	-
1	49-6904		Guide Owners		Appelez-nous	-
1	31-5025		Attention Installer		Appelez-nous	-
4	WR77X613		Door Inner Fz Dp		Appelez-nous	-
5	WR12X553		Door Handle		Appelez-nous	-
6	WR12X2845		Stiffener Handle Fz		Appelez-nous	-
8	WR2X8089		Shim Handle Wh		Appelez-nous	-
10	WR2X7613		Shim Handle Door		Appelez-nous	-
12	WR12X587		Channel Handle Fz		Appelez-nous	-
16	WR1X1724		Screw		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
23	WR24X449		Gasket Door Fz Wh		Appelez-nous	-
24	WR17X2279		Retainer Strip H		Appelez-nous	-
25	WR17X2281		Retainer Strip V		Appelez-nous	-
26	WR2X7681		Stop Door		Appelez-nous	-
28	WR2X7627		Thimble Wh		Appelez-nous	-
29	WR2X8087		Plug Button Insert Wh		Appelez-nous	-
30	WR1X5475		Scr 8/10-16 Ab Pa 5/8		Appelez-nous	-
32	WR71X10014		Shelf Front Fz 1/2		Appelez-nous	-
35	WR4X220		Lens Nameplate		Appelez-nous	-
35	WR12X735		Insert/np Hndl Fz Wh		Appelez-nous	-
105	WR2X8699		Cap Shelf Front Lh		Appelez-nous	-
105	WR2X8700		Cap Shelf Front Rh		Appelez-nous	-
108	WR71X10013		Shelf Front Fz Full		Appelez-nous	-
109	WR71X10015		Shelf Module Asm		Appelez-nous	-
111	WR2X7610		Cap Trim Handle		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
290	WR2X8376		Magnet Pad		Appelez-nous	-
566	WR1X1728		Scr 10-16 1/2 Ph		Appelez-nous	-
900	WR78X8731		Door Outer Fz Dp Wh		Appelez-nous	-
921	WR2X7624		Plug Button Wh		Appelez-nous	-
