SELECT A DIAGRAM

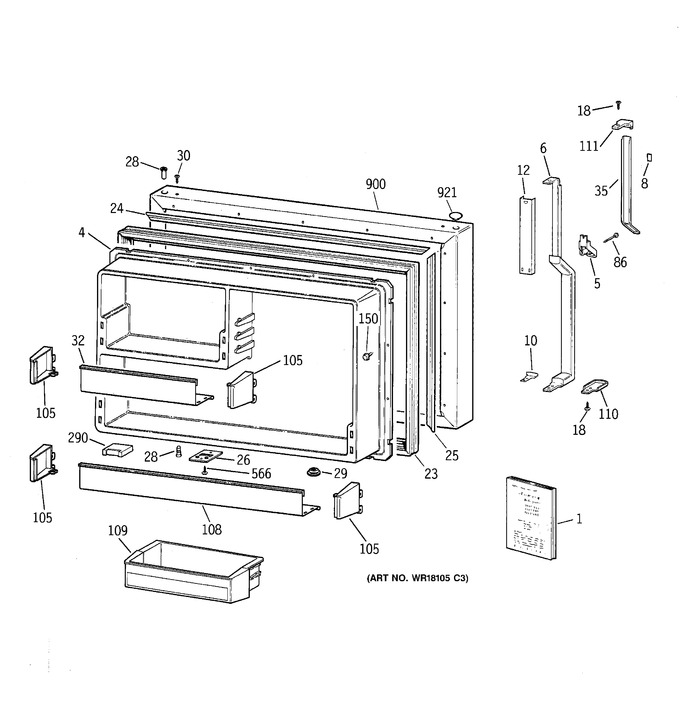

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet Parts


4 - Shelf Parts


5 - Compartment Separator Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-45508		Pm Mini Manual Wiring		Appelez-nous	-
1	49-6842		Pm Guide Owner		Appelez-nous	-
4	WR77X606		Door Inner Fz		Appelez-nous	-
5	WR2X8714		Cap End		Appelez-nous	-
6	WR12X886		Handle Fz Ad		Appelez-nous	-
8	WR4X213		Lens Nameplate Almond		Appelez-nous	-
10	WR2X8002		Shim Handle Door		Appelez-nous	-
12	WR12X913		Channel Handle Fz		Appelez-nous	-
18	WR1X1726		Screw		Appelez-nous	-
23	WR24X438		Gasket O.door Frz White		Appelez-nous	-
24	WR17X2136		Retainer Strip H		Appelez-nous	-
25	WR17X2135		Retainer Strip V		Appelez-nous	-
26	WR2X9016		Stop Door		Appelez-nous	-
28	WR2X7627		Thimble White		Appelez-nous	-
29	WR2X8088		Plug Button Insert Ad		Appelez-nous	-
30	WR1X5475		Screw		Appelez-nous	-
32	WR71X2601		Shelf Fronts		Appelez-nous	-
35	WR12X903		Insert Handle Fz Almond		Appelez-nous	-
86	WH2X940		Scr 8-32 Tt Fl 1/2 S		Appelez-nous	-
105	WR2X8699		Cap Shelf Front Lh		Appelez-nous	-
105	WR2X8700		Cap Shelf Front Rh		Appelez-nous	-
108	WR71X2600		Shelf Fronts		Appelez-nous	-
109	WR71X2602		Shelf Module Asm		Appelez-nous	-
110	WR2X8210		Cap Top		Appelez-nous	-
111	WR2X7979		Cap Trim Handle		Appelez-nous	-
150	WR1X1791		Screw		Appelez-nous	-
290	WR2X8376		Magnet Pad		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
900	WR78X8755		Door Asm Fz Ad		Appelez-nous	-
921	WR2X7625		Plug Button Almond		Appelez-nous	-
