SELECT A DIAGRAM
1 - Freezer Door
2 - Fresh Food Door
3 - Cabinet Parts
4 - Shelf Parts
5 - Compartment Separator Parts
6 - Unit Parts
SELECT A DIAGRAM
New Model Search:

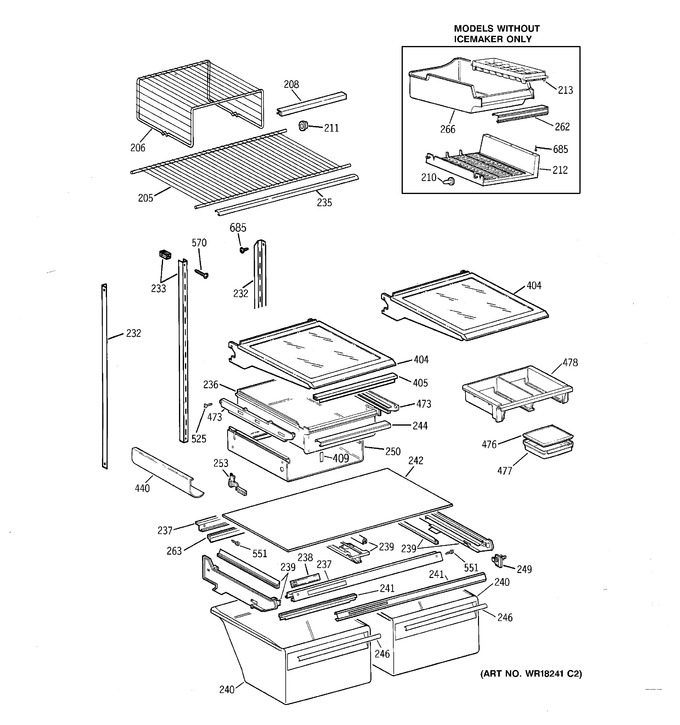

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 205 | WR71X7646 | Shelf Asm Fz Wire |
|
- | |||||
| 206 | WR71X2317 | Shelf Freezer Small |
|
- | |||||
| 208 | WR38X2107 | Trim Shelf |
|
- | |||||
| 210 | WR2X6261 | Grommet Shelf Fz |
|
- | |||||
| 211 | WR01A00967 | Support Shelf (Replaces: WR2X7973) |
|
$ 4.20 | |||||
| 212 | WR30X300 | Shelf Ice Tray |
|
- | |||||
| 213 | WR30X311 | Tray Ice |
|
- | |||||
| 232 | WR72X96 | Track Cant Shelf Ff |
|
- | |||||
| 233 | WR72X97 | Track Center Ff |
|
- | |||||
| 233 | WR2X7018 | Spacer Track |
|
- | |||||
| 235 | WR38X2133 | Trim Shelf Wire Fz Full |
|
- | |||||
| 236 | WR32X1019 | Pan Meat |
|
- | |||||
| 237 | WR17X2766 | Rail Veg Pan Front |
|
- | |||||
| 237 | WR17X3168 | Rail Veg Pan Rear |
|
- | |||||
| 238 | WR17X3905 | Slide Asm Control Vp |
|
- | |||||
| 239 | WR17X2770 | Slide Veg Pan L/s |
|
- | |||||
| 239 | WR14X366 | Gasket Slide Vp |
|
- | |||||
| 239 | WR14X384 | Gasket Veg Pan Slide |
|
- | |||||
| 239 | WR17X2768 | Slide Cover Center |
|
- | |||||
| 239 | WR17X2769 | Slide Veg Pan R/s |
|
- | |||||
| 240 | WR32X1128 | Pan 1/2 |
|
- | |||||
| 241 | WR14X354 | Gasket Cvr Pan Front |
|
- | |||||
| 241 | WR17X3194 | Trim Frame Vp |
|
- | |||||
| 242 | WR32X1491 | Shelf Cant Glass |
|
- | |||||
| 244 | WR38X2152 | Handle Pan Meat |
|
- | |||||
| 246 | WR38X2153 | Handle Veg Pan |
|
- | |||||
| 249 | WR2X8695 | Support Twist Vp Cvr |
|
- | |||||
| 250 | WR17X2846 | Shroud Asm |
|
- | |||||
| 253 | WR2X8446 | Lever |
|
- | |||||
| 262 | WR17X3908 | Handle I B |
|
- | |||||
| 263 | WR14X397 | Gasket Cvr Pan Rear |
|
- | |||||
| 266 | WR30X321 | Bucket Ice |
|
- | |||||
| 404 | WR32X1490 | Shelf Cant Ff Encap |
|
- | |||||
| 405 | WR14X473 | Gasket Meat Pan |
|
- | |||||
| 409 | WR2X8454 | Decal Meat Pan |
|
- | |||||
| 473 | WR72X169 | Slide Meat Pan Lh Wh |
|
- | |||||
| 473 | WR72X168 | Slide Meat Pan Rh Wh |
|
- | |||||
| 476 | WR2X8520 | Lid Dish Snack |
|
- | |||||
| 477 | WR17X3327 | Dish Snack Tray Small |
|
- | |||||
| 478 | WR71X2316 | Module Quick Serve |
|
- | |||||
| 525 | WR1X1763 | Screw |
|
- | |||||
| 551 | WZ04X0244 | Screw |
|
- | |||||
| 570 | WR1X1757 | Screw |
|
- | |||||
| 685 | WR1X1804 | Screw 8-18 Ab Hxw 3/4 |
|
- |
