SELECT A DIAGRAM
1 - Freezer Door
2 - Fresh Food Door
3 - Cabinet
4 - Shelf Parts
5 - Compartment Separator Parts
6 - Unit Parts
SELECT A DIAGRAM
New Model Search:

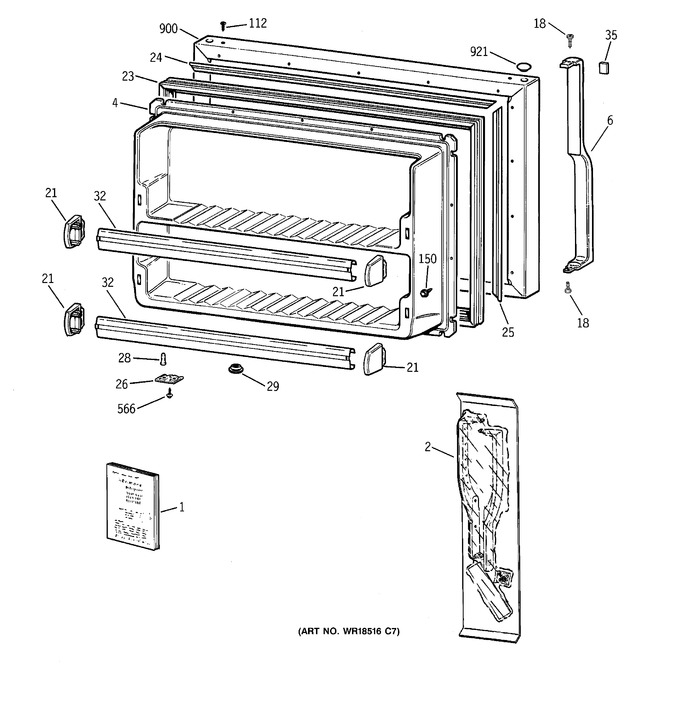

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51228 | Pm Mini Manual Wiring |
|
- | |||||
| 1 | 49-60012 | Pm Guide Owners |
|
- | |||||
| 2 | WR12X10137 | Handle Pk Asm Bk |
|
- | |||||
| 4 | WR77X610 | Door Inner Fz |
|
- | |||||
| 6 | WR12X10138 | Handle/np Asm Fz Bk |
|
- | |||||
| 18 | WR1X1726 | Scr 10-16 Ab 3/4 Ss |
|
- | |||||
| 21 | WR2X7975 | Cap Shelf Front |
|
- | |||||
| 23 | WR24X539 | Gasket Door Fz Bk |
|
- | |||||
| 24 | WR17X2279 | Retainer Strip H |
|
- | |||||
| 25 | WR17X2281 | Retainer Strip V |
|
- | |||||
| 26 | WR2X7628 | Door Stop |
|
- | |||||
| 28 | WR02X10111 | Thimble Door Plastic |
|
- | |||||
| 29 | WR2X8542 | Plug Button Insert Bk |
|
- | |||||
| 32 | WR71X10092 | Front Door Shelf Fz |
|
- | |||||
| 35 | WR04X10030 | Lens Nameplate Bk |
|
- | |||||
| 112 | WR01A00518 | Beauty Button (black) (Replaces: WR2X8701) |
|
$ 4.20 | |||||
| 150 | WR1X1791 | Scr 8-15 Spec |
|
- | |||||
| 566 | WR1X1728 | Screw |
|
- | |||||
| 900 | WR78X10086 | Door Outer Fz Bk |
|
- | |||||
| 921 | WR2X8541 | Plug Button Bk |
|
- |
