SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet Parts


4 - Shelf Parts

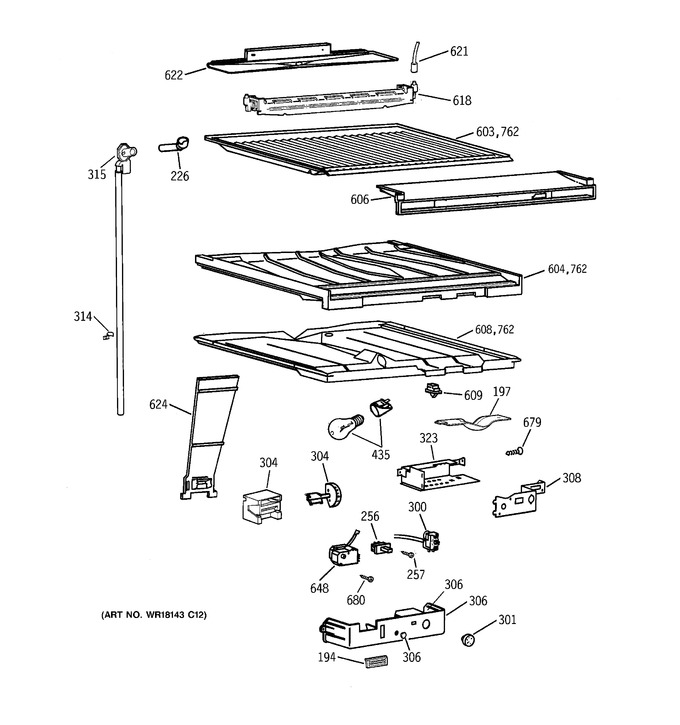

5 - Compartment Separator Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
197	WR2X8378		Shield Light		Appelez-nous	-
226	WG03A00378		Funnel Drain   (Replaces: WR2X7640)				$ 10.72
256	WR23X309		Switch Power Saver		Appelez-nous	-
257	WR1X1762		Screw		Appelez-nous	-
300	WG03L00275		Sleeve Vinyl   (Replaces: WR2X8344)				$ 30.98
300	WR9X559		Control Temp		Appelez-nous	-
301	WR2X8692		Knob Temp Cont		Appelez-nous	-
304	WR2X8363		Nozzle Foam		Appelez-nous	-
304	WR2X9298		Shaft/knob Damper		Appelez-nous	-
306	WR2X7652		Plug Button		Appelez-nous	-
306	WR17X3196		Housing Control		Appelez-nous	-
306	WR2X7669		Insul Elect		Appelez-nous	-
308	WR2X7768		Bracket Control Hsg		Appelez-nous	-
314	WR2X8503		Clamp Tube		Appelez-nous	-
315	WR2X8504		Grommet&tube Drain		Appelez-nous	-
323	WR2X7767		Brkt Control Back		Appelez-nous	-
435	STD372402		Lamp		Appelez-nous	-
435	WR2X8202		Socket & Term Wh		Appelez-nous	-
603	WR17X2275		Liner Bottom Fz		Appelez-nous	-
604	WR17X3494		Insul Divider		Appelez-nous	-
606	WR17X2385		Front Liner Fz		Appelez-nous	-
608	WR17X2774		Liner Top Ff		Appelez-nous	-
609	WR23X193		Switch Light Wh		Appelez-nous	-
618	WR51X447		Def Htr & Fuse Kit		Appelez-nous	-
621	WR2X4495		Connector W/lead		Appelez-nous	-
622	WR17X2283		Trough Drain		Appelez-nous	-
622	WR14X357		Gasket Trough		Appelez-nous	-
624	WR17X3883		Cover Ff Supply		Appelez-nous	-
648	WR9X520		Control Defrost		Appelez-nous	-
679	WZ06X0133		Screw		Appelez-nous	-
680	WR1X1850		Screw 7-19 X 1/2 Hxw		Appelez-nous	-
762	WR14X313		Foam Strip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
