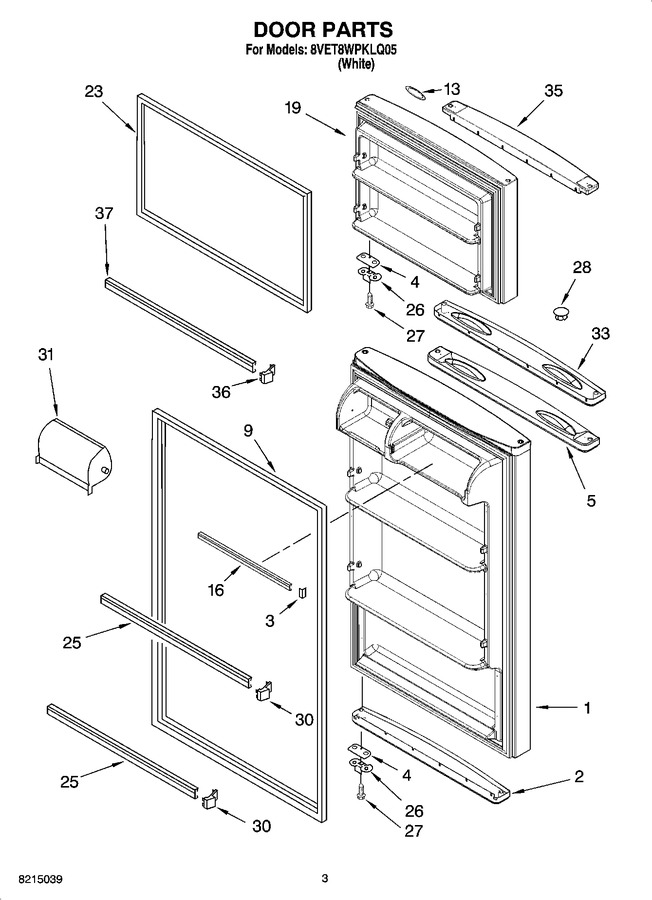

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316159W | Refrigerator Door Panel (includes Items 2 & 5) |
|
$ 479.27 | |||||
| 2 | 2265647W | Endcap, Bottom (rc Door) |
|
$ 63.82 | |||||
| 3 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 4 | WP2258681W | Shim, Door Stop (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 5 | 2265645W | Endcap, Handle (rc Door) |
|
$ 219.98 | |||||
| 9 | WP2319264T | Door Gasket, Magnetic (Replaces: 2263258) |
|
Immediately | $ 215.51 | ||||
| 13 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 93.18 | ||||
| 16 | 2321046 | Trim, Door Shelf (upper) |
|
- | |||||
| 19 | 2316367W | Freezer Door Panel (includes Items 33 & 35) |
|
$ 570.75 | |||||
| 23 | WP2319263T | Door Gasket, Magnetic (Replaces: 2263257) |
|
Immediately | $ 215.86 | ||||
| 25 | WP2266738 | Trim, Door Shelf (Replaces: 2321049) |
|
$ 111.69 | |||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 28 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 30 | WP2195916K | End Cap-trim (rc) (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 31 | 2192641 | Compartment Door |
|
- | |||||
| 33 | 2265645W | Endcap, Handle (fc Door) (Replaces: 2265646W) |
|
$ 219.98 | |||||
| 35 | 2265644W | Endcap, Top (fc Door) |
|
$ 148.05 | |||||
| 36 | WP2156003 | End Cap-trim-fc (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 37 | WP2266727 | Trim, Door (2) (Replaces: 2321047) |
|
Immediately | $ 120.57 |
