SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow

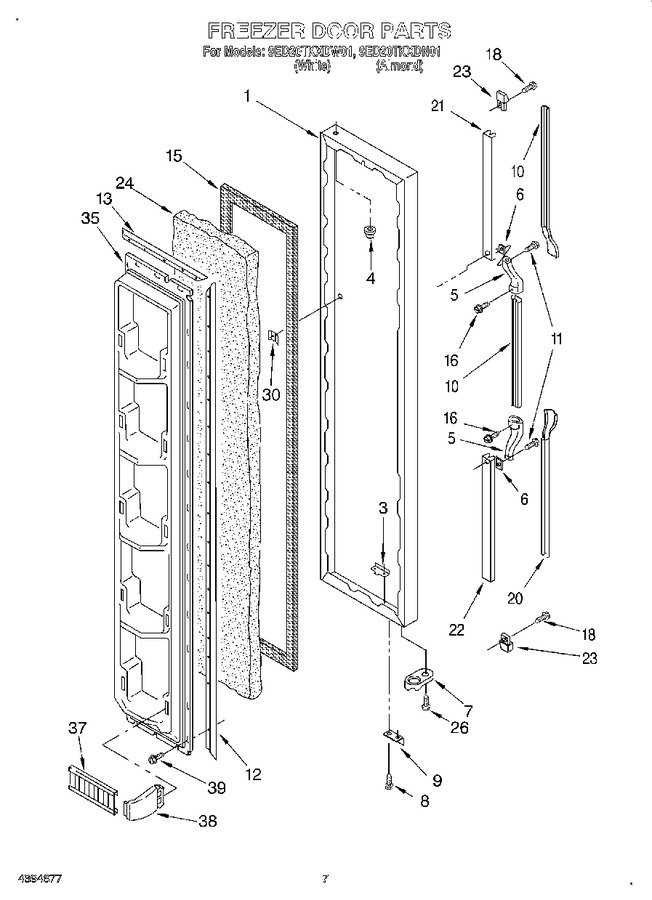

05 - Freezer Door


06 - Refrigerator Door


07 - Unit


08 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194997W		Freezer, Door Panel (white)		Appelez-nous	-
1	2194997N		Freezer, Door Panel (almond (also Order Item 24))		Appelez-nous	-
3	2155335		Tap, Plate		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
5	1119359		End Cap (2)		Appelez-nous	-
6	935075		Shim		Appelez-nous	-
7	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
8	WP999367		Screw   (Replaces: 489367)				$ 8.56
9	2195950		Bracket, Door Stop				$ 5.84
10	2194774W		Insert, Top (white)		Appelez-nous	-
10	2194774N		Insert, Top (almond)		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 8.25
12	1117766		Gasket Retainer, Side (2)				$ 36.55
13	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
15	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
16	489022		Screw		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	2194767W		Handle, Center (white)		Appelez-nous	-
19	2194767N		Handle, Center (almond)		Appelez-nous	-
20	2194773W		Insert, Bottom (white)		Appelez-nous	-
20	2194773N		Insert, Bottom (almond)		Appelez-nous	-
21	2194771		Insert Retainer (top)		Appelez-nous	-
22	2194770		Insert Retainer (bottom)		Appelez-nous	-
23	2156220		End Cap (2)		Appelez-nous	-
24	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
26	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
30	941242		Screw Anchor		Appelez-nous	-
35	1129241		Panel, Interior Door		Appelez-nous	-
37	2195922		Trim, Door Shelf		Appelez-nous	-
38	WP2196100		Support Trim End   (Replaces: 1110719)			Immediately	$ 9.09
39	WP489069		Screw, (28)   (Replaces: 489101)			Immediately	$ 8.40
