SELECT A DIAGRAM

1 - Freezer Door

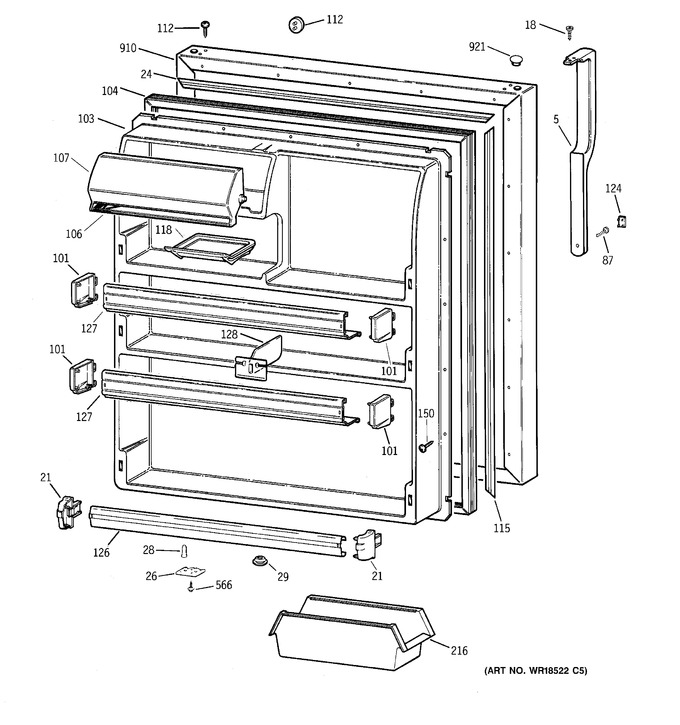

2 - Fresh Food Door


3 - Cabinet


4 - Shelf Parts


5 - Compartment Separator Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR12X10359		Handle Door Asm Ff		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
21	WR2X7975		Cap Shelf Front		Appelez-nous	-
24	WR17X2136		Retainer Strip H		Appelez-nous	-
26	WR2X7628		Door Stop		Appelez-nous	-
28	WR02X10111		Thimble Door Plastic		Appelez-nous	-
29	WR02X10462		Plug Button Foam Bq		Appelez-nous	-
87	WZ04X0241		Scr 8-15 Ab Tr 1/2 Ss		Appelez-nous	-
101	WG03L00278		End Cap - L.h. (wide)   (Replaces: WR2X9295)				$ 27.16
101	WG03F00926		Cap Shelf Front R.h.   (Replaces: WR2X9296)				$ 12.36
103	WR77X607		Door Inner Ff		Appelez-nous	-
104	WR24X437		Gasket Door Ff Wh		Appelez-nous	-
106	WR38X10120		Trim Bright Dairy Door		Appelez-nous	-
107	WR22X521		Door Utility		Appelez-nous	-
112	WR02X10459		Plug Door Rvsbl Bq		Appelez-nous	-
115	WR17X2137		Retainer Strip V		Appelez-nous	-
118	WR19X5003		Butter Dish		Appelez-nous	-
124	WR12X10356		Plug Button Handle		Appelez-nous	-
126	WR71X10106		Front Door Shelf Ff		Appelez-nous	-
127	WR71X10107		Shelf Front Ff		Appelez-nous	-
128	WR2X9297		Divider Shelf		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
216	WR32X1435		Bucket Egg		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
910	WR78X10318		Door Foam Asm Ff		Appelez-nous	-
921	WR02X10461		Plug Button Thimble Bq		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
