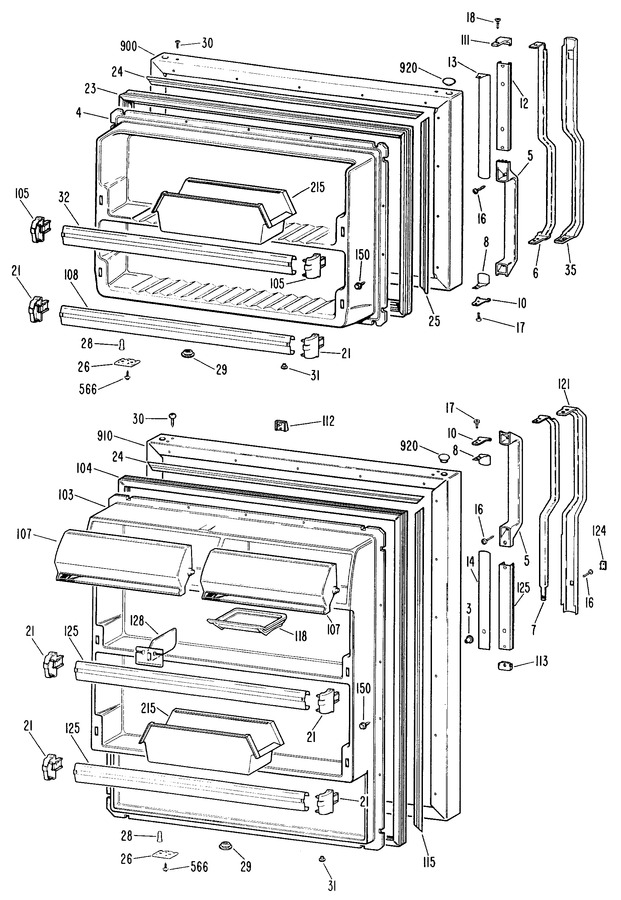

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-5025 | Attention Installer |
|
- | |||||
| 3 | WR2X3757 | Fastener Tubular |
|
- | |||||
| 4 | WR77X476 | Door Inner Fz |
|
- | |||||
| 5 | WR12X553 | Door Handle |
|
- | |||||
| 6 | WR12X554 | Stiffener Handle |
|
- | |||||
| 7 | WR12X555 | Stiffener Handle |
|
- | |||||
| 8 | WR2X7616 | Shim Door Handle |
|
- | |||||
| 10 | WR2X7613 | Shim Handle Door |
|
- | |||||
| 13 | WR2X7612 | Shim Handle Door |
|
- | |||||
| 14 | WR2X7672 | Shim Handle Door |
|
- | |||||
| 16 | WR1X1724 | Screw |
|
- | |||||
| 17 | WR1X1727 | Screw |
|
- | |||||
| 18 | WR1X1726 | Screw |
|
- | |||||
| 21 | WG03L00280 | Cap Shelf Frt (Replaces: WR2X7617) |
|
$ 24.30 | |||||
| 23 | WR24X436 | Gasket O.door Frz(brn) |
|
- | |||||
| 24 | WR17X2136 | Retainer Strip H |
|
- | |||||
| 25 | WR17X2135 | Retainer Strip V |
|
- | |||||
| 26 | WR2X7628 | Door Stop |
|
- | |||||
| 28 | WR2X7627 | Door Thimble |
|
- | |||||
| 29 | WR2X7618 | Plug Button White |
|
- | |||||
| 30 | WR1X5475 | Screw |
|
- | |||||
| 31 | WR2X7643 | Plug Foam Vent(wh) |
|
- | |||||
| 32 | WR17X2172 | Front Door Shelf Ge Sm |
|
- | |||||
| 35 | WR12X552 | Insert Frz Hdle(brn) |
|
- | |||||
| 87 | WZ04X0241 | Screw |
|
- | |||||
| 103 | WR77X477 | Door Inner Ff |
|
- | |||||
| 104 | WR24X435 | Gasket O.door Ff(brn) |
|
- | |||||
| 105 | WR2X7671 | Cap Shelf Frt |
|
- | |||||
| 107 | WR22X339 | Door Dairy/utility Asm |
|
- | |||||
| 108 | WR17X2173 | Front Door Shelf Ge Lg |
|
- | |||||
| 111 | WR2X7610 | Cap Trim Handle |
|
- | |||||
| 112 | WR4X180 | Nameplate Dr Rsv(wh) |
|
- | |||||
| 113 | WR2X7611 | Cap Trim Handle Btm |
|
- | |||||
| 115 | WR17X2137 | Retainer Strip V |
|
- | |||||
| 118 | WR19X5003 | Dish Butter |
|
- | |||||
| 121 | WR12X560 | Insert Ff Dr Hdl(brn) |
|
- | |||||
| 124 | WR12X559 | Plug Button Insert (brn) |
|
- | |||||
| 125 | WR12X557 | Channel Handle |
|
- | |||||
| 125 | WR17X2174 | Front Door Shelf Ge Lg |
|
- | |||||
| 150 | WR1X1725 | Scr 8-18 Spec |
|
- | |||||
| 215 | WR32X913 | Bucket Utility |
|
- | |||||
| 216 | WR1X1332 | Rivet-plastic |
|
- | |||||
| 324 | WR2X7069 | Plug Button |
|
- | |||||
| 435 | WR2X8265 | Socket & Terminal Asm |
|
- | |||||
| 435 | STD372402 | Lamp 40w |
|
- | |||||
| 566 | WR1X1728 | Screw |
|
- | |||||
| 566 | WR1X1487 | Screw |
|
- | |||||
| 687 | WZ04X0224 | Scr 6-19 Hi/lo Hxw 1/2 S |
|
- | |||||
| 689 | WZ05X0246 | Screw |
|
- | |||||
| 900 | WR78X7910 | Frz O.door(wh) |
|
- | |||||
| 900 | WR78X7912 | Frz O.door(ha) |
|
- | |||||
| 900 | WR78X7911 | Frz O.door(ad) |
|
- | |||||
| 910 | WR78X7915 | Ff O.door(ha) |
|
- | |||||
| 910 | WR78X7913 | Ff O.door(wh) |
|
- | |||||
| 910 | WR78X7914 | Ff O.door(ad) |
|
- | |||||
| 921 | WR2X7624 | Plug Button White |
|
- | |||||
| 32767 | WR84X115 | Condenser Asm. |
|
- | |||||
| 32767 | 49-6522 | Pm Guide Owners |
|
- | |||||
| 32767 | 49-6413 | Pm Rvsbl Hdw Inst |
|
- | |||||
| 32767 | WR51X299 | Heater Element Def |
|
- | |||||
| 32767 | WR1X1466 | Scr 8-32 Bp Hxw 3/8 S |
|
- |
