SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet Parts


4 - Shelf Parts


5 - Compartment Separator Parts


6 - Unit Parts

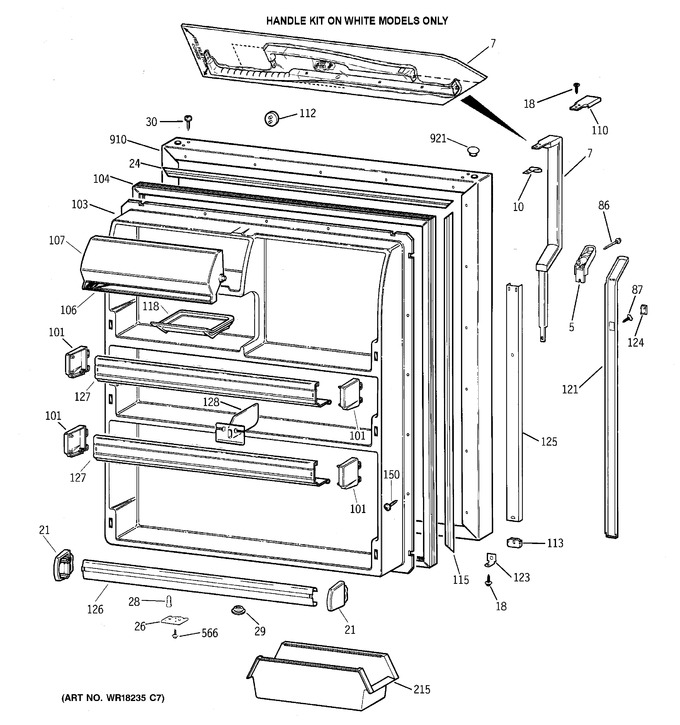

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR2X8714		Cap End		Appelez-nous	-
7	WR12X10225		Pk Handle Asm Wh		Appelez-nous	-
10	WR2X8002		Shim Handle Door		Appelez-nous	-
18	WR1X1726		Scr 10-16 Abx3/4 Ss		Appelez-nous	-
21	WR2X7975		Cap Shelf Front		Appelez-nous	-
24	WR17X2136		Retainer Strip H		Appelez-nous	-
26	WR2X7628		Door Stop		Appelez-nous	-
28	WR2X7627		Thimble Door Plastic		Appelez-nous	-
29	WR2X8087		Plug Button Insert Wh		Appelez-nous	-
30	WR1X5475		Screw		Appelez-nous	-
86	WH2X940		Scr 8-32 Tt Fl 1/2 S		Appelez-nous	-
87	WZ04X0241		Screw		Appelez-nous	-
101	WG03L00278		Cap Shelf Front L.h.   (Replaces: WR2X9295)				$ 27.16
101	WG03F00926		Cap Shelf Front R.h.   (Replaces: WR2X9296)				$ 12.36
103	WR77X607		Door Inner Ff		Appelez-nous	-
104	WR24X437		Gasket Door Ff Wh		Appelez-nous	-
106	WR38X2131		Trim Bright		Appelez-nous	-
107	WR22X521		Door Utility		Appelez-nous	-
110	WR2X8210		Cap Top		Appelez-nous	-
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
113	WR2X7980		Cap Trim Handle Btm		Appelez-nous	-
115	WR17X2137		Retainer Strip V		Appelez-nous	-
118	WR19X5003		Dish Butter		Appelez-nous	-
121	WR12X894		Insert Handle Ff Wh		Appelez-nous	-
123	WR2X8009		Trim Handle Btm		Appelez-nous	-
124	WR12X721		Plug Button Insert Wh		Appelez-nous	-
125	WR12X912		Channel Handle Ff		Appelez-nous	-
126	WR71X2594		Front Door Shelf		Appelez-nous	-
127	WR71X2592		Front Shelf Ff Full		Appelez-nous	-
128	WR2X9297		Divider Shelf		Appelez-nous	-
150	WR1X1791		Screw		Appelez-nous	-
215	WR32X1435		Bucket Egg		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
910	WR78X8752		Door Asm Ff Wh		Appelez-nous	-
921	WR2X7624		Plug Button Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
