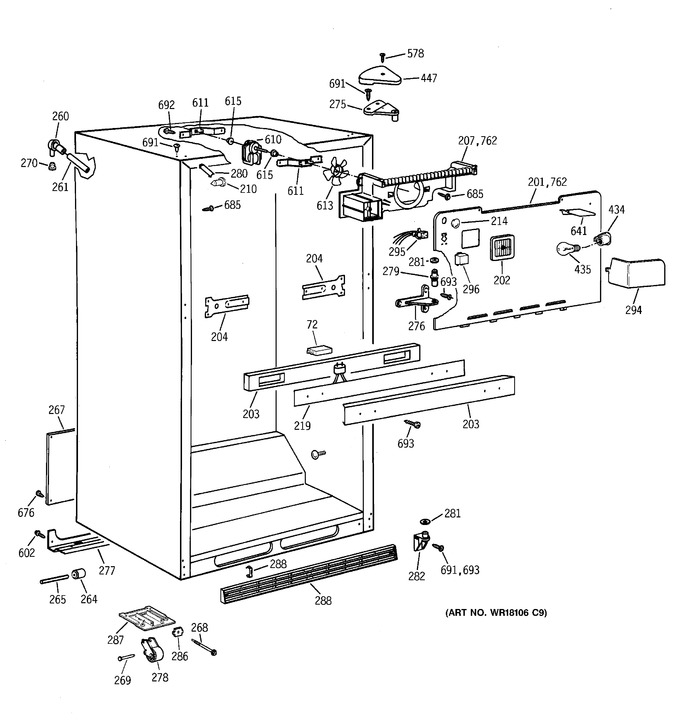

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 72 | WR23X334 | Switch Lamp Reed |
|
- | |||||
| 201 | WR17X2425 | Cover Evap Asm |
|
- | |||||
| 202 | WR2X8629 | Grille Ice Serv Snap-in |
|
- | |||||
| 203 | WR14X347 | Foam Strip Mullion |
|
- | |||||
| 203 | WR17X2141 | Mullion Crosspiece Wh |
|
- | |||||
| 204 | WR2X7823 | Bracket Mullion Lh |
|
- | |||||
| 204 | WR2X7822 | Bracket Mullion Rh |
|
- | |||||
| 207 | WR17X2990 | Plenum |
|
- | |||||
| 210 | WR2X6261 | Grommet Shelf Fz |
|
- | |||||
| 214 | WR2X7148 | Plug Button |
|
- | |||||
| 219 | WR51X357 | Heater Mullion |
|
- | |||||
| 260 | WR2X7773 | Grommet Wtr Fill |
|
- | |||||
| 261 | WR2X6087 | Tube Water Fill |
|
- | |||||
| 264 | WG03A00502 | Wheel Mobility (Replaces: WR2X3594) |
|
$ 17.24 | |||||
| 265 | WR1X1774 | Axle Wheel Rear |
|
- | |||||
| 267 | WR82X319 | Cover Access Asm |
|
- | |||||
| 268 | WR1X1816 | Screw Mobility |
|
- | |||||
| 269 | WR1X1803 | Key Pivot |
|
- | |||||
| 270 | WG03L01693 | Plug Button (Replaces: WR2X8247) |
|
$ 4.20 | |||||
| 275 | WR13X626 | Hinge Top Asm |
|
- | |||||
| 276 | WR13X714 | Hinge Center Asm Wh |
|
- | |||||
| 277 | WR17X2165 | Rail Rear |
|
- | |||||
| 278 | WR2X8842 | Mobility Front Asm |
|
- | |||||
| 279 | WR13X587 | Pin Hinge Ctr |
|
- | |||||
| 280 | WR2X7656 | Cap Corner O.c. Wh |
|
- | |||||
| 281 | WR1X1797 | Washer Hinge |
|
- | |||||
| 282 | WR13X648 | Hinge Btm Asm Wh |
|
- | |||||
| 286 | WR1X1815 | Leveling Nut |
|
- | |||||
| 287 | WR2X9168 | Gusset |
|
- | |||||
| 288 | WR2X7646 | Clip Base Grille |
|
- | |||||
| 288 | WR74X218 | Grille Base Asm Wh |
|
- | |||||
| 294 | WR2X9010 | Shield Light Fz |
|
- | |||||
| 295 | WR23X315 | Receptacle Icemaker |
|
- | |||||
| 296 | WR2X8444 | Cover Plug I M |
|
- | |||||
| 434 | WR2X8005 | Socket Lamp |
|
- | |||||
| 435 | WR2X8202 | Socket & Term Wh |
|
- | |||||
| 435 | STD372402 | Lamp |
|
- | |||||
| 447 | WR2X8478 | Cover Hinge Wh |
|
- | |||||
| 578 | WZ02X0503 | Screw |
|
- | |||||
| 602 | WR1X1591 | Scr 1/4-14 X 3/4 |
|
- | |||||
| 610 | GEFM | Motor Evap Fan (Replaces: WR60X190) |
|
Immediately | $ 106.65 | ||||
| 611 | WR2X7664 | Bracket Evap Fan |
|
- | |||||
| 613 | WR60X123 | Fan Blade Evap Motor |
|
- | |||||
| 613 | WR2X3198 | Ring Fan Blade |
|
- | |||||
| 615 | WR2X7391 | Grommet |
|
- | |||||
| 641 | WR2X8816 | Heat Shield |
|
- | |||||
| 676 | WZ04X0263 | Screw |
|
- | |||||
| 685 | WR1X1804 | Screw 8-18 Ab Hxw 3/4 |
|
- | |||||
| 691 | WR01A01036 | Scr 12-24 Tt Bht .700 (Replaces: WR1X1753) |
|
$ 3.57 | |||||
| 692 | WZ04X0416 | Screw |
|
- | |||||
| 693 | WR1X1754 | Scr 12-24 Tt 0ht .900 |
|
- | |||||
| 762 | WR14X313 | Foam Strip |
|
- |
