SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts

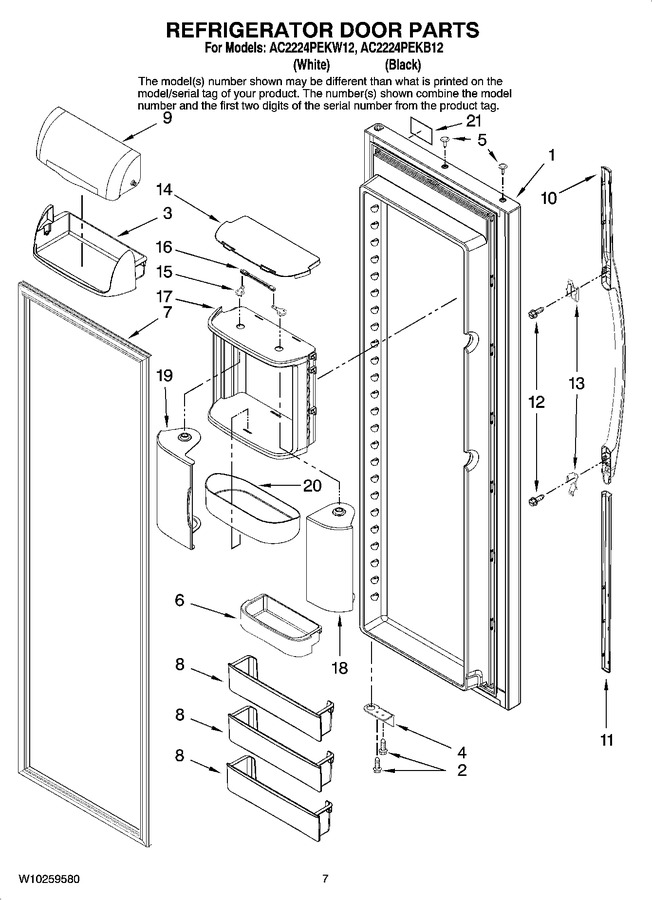

05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12818235WQ		Door, Refrigerator (white)		Appelez-nous	-
1	12818236BQ		Door, Refrigerator (black)		Appelez-nous	-
2	WP8281227		Screw (2)   (Replaces: M0220432)				$ 10.96
3	67002304		Tray, Dairy		Appelez-nous	-
4	67006517		Stop, Door (white)		Appelez-nous	-
4	67007017		Stop, Door (black)		Appelez-nous	-
5	M0311604		Plug, Button (2) (black)		Appelez-nous	-
6	67004339		Bucket, Door (gallon)		Appelez-nous	-
7	W10133828		Gasket, Door (white)				$ 165.36
7	W10840101		Gasket, Door (black)   (Replaces: W10133482)				$ 327.25
8	67004285		Bucket, Door (3)		Appelez-nous	-
9	67002957		Door, Dairy		Appelez-nous	-
10	WPW10119678		Handle Assembly (white)   (Replaces: W10119678)				$ 195.97
10	W10119680		Handle Assembly (black)		Appelez-nous	-
11	67004297		Trim, Handle		Appelez-nous	-
12	WP67006197		Screw, Handle   (Replaces: 67006197)				$ 9.11
13	W10132420		Clip, Handle		Appelez-nous	-
14	67002291		Cover, Chiller		Appelez-nous	-
15	67002293		Linkage, Chiller (2)				$ 11.76
16	67002292		Linkage, Center Chiller		Appelez-nous	-
17	67002294		Frame, Chiller		Appelez-nous	-
18	67002297		Door, Chiller (rt)		Appelez-nous	-
19	67003136		Door, Chiller (lt)		Appelez-nous	-
20	67002296		Tray, Chiller				$ 26.66
21	Y12528501		Nameplate, Amana   (Replaces: 12528501)			Immediately	$ 62.74

    View Diagram in Separate Window       Print Part List
