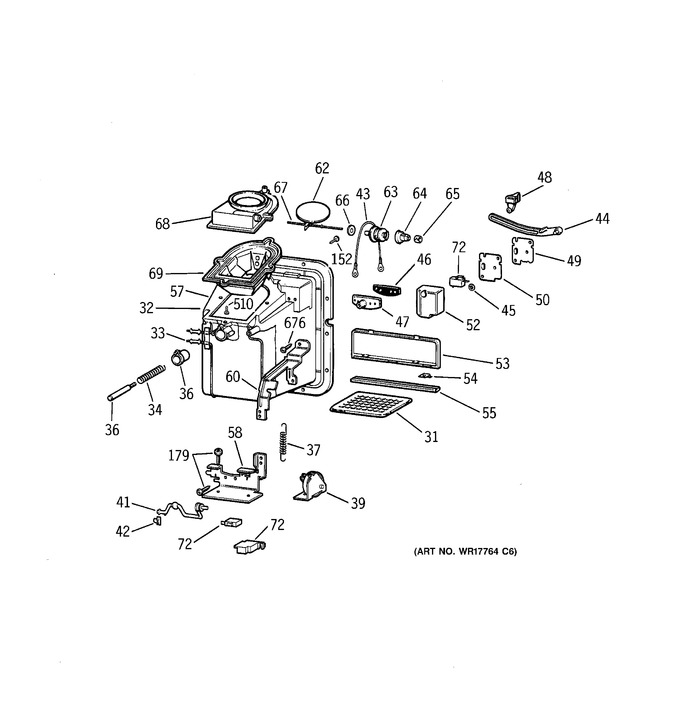

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	WR2X8205		Grille Recess Bk		Appelez-nous	-
32	WR17X2220		Recess Disp Bk		Appelez-nous	-
33	WR51X362		Heater Recess & Duct		Appelez-nous	-
34	WR2X3951		Spring-recess Duct		Appelez-nous	-
36	WR2X4822		Plunger Screw & Sleeve		Appelez-nous	-
37	WR2X8403		Spring Disp		Appelez-nous	-
39	WR9X506		Delay & Brkt Asm Disp		Appelez-nous	-
41	WR17X2820		Crank Time Delay Disp		Appelez-nous	-
42	WR2X4234		Bearing-crank		Appelez-nous	-
43	WR2X8447		Lanyard Asm Disp		Appelez-nous	-
44	WR2X4685		Lever Selector Sw Disp		Appelez-nous	-
45	WR2X4240		Retainer Ring Ext		Appelez-nous	-
46	WR2X8471		Pad Cradle Bk		Appelez-nous	-
47	WR2X3948		Cradle Disp		Appelez-nous	-
48	WR2X7951		Knob Selector Disp		Appelez-nous	-
49	WR2X4592		Plate Housing Disp		Appelez-nous	-
50	WR2X4591		Insulator Sw Housing		Appelez-nous	-
52	WR2X4593		Housing Switch		Appelez-nous	-
53	WR2X8718		Shield & Insert Asm Bk		Appelez-nous	-
54	WR2X4231		Bracket Light Shield		Appelez-nous	-
55	WR38X851		Trim C Metal		Appelez-nous	-
57	WR14X411		Gasket Recess Disp		Appelez-nous	-
58	WR17X2794		Plate Bearing Disp		Appelez-nous	-
60	WR2X8026		Support Recess		Appelez-nous	-
62	WR17X1255		Door Recess Duct Asm		Appelez-nous	-
63	WR17X1457		Pulley Time Delay		Appelez-nous	-
64	WR17X1045		Arm Time Delay Disp		Appelez-nous	-
65	WR2X4595		Ring Compression		Appelez-nous	-
66	WR1X1385		Washer		Appelez-nous	-
67	WR2X4814		Crank Door Duct Disp		Appelez-nous	-
68	WR2X4751		Pad-r & L Sides		Appelez-nous	-
68	WR17X1355		Duct Recess		Appelez-nous	-
68	WR14X260		Gasket Duct Disp		Appelez-nous	-
69	WR17X5881		Shield & Funnel Asm Bk		Appelez-nous	-
72	WR2X7942		Cradle Switch Supt Disp		Appelez-nous	-
72	WR23X144		Select Switch-cubes/disp		Appelez-nous	-
152	WZ04X0324		Screw		Appelez-nous	-
179	WZ04X0364		Screw		Appelez-nous	-
510	WE2X263		Screw 10-16x1/2 Hxw		Appelez-nous	-
676	WZ04X0263		Screw		Appelez-nous	-
