SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


04 - Section


05 - Section


06 - Section

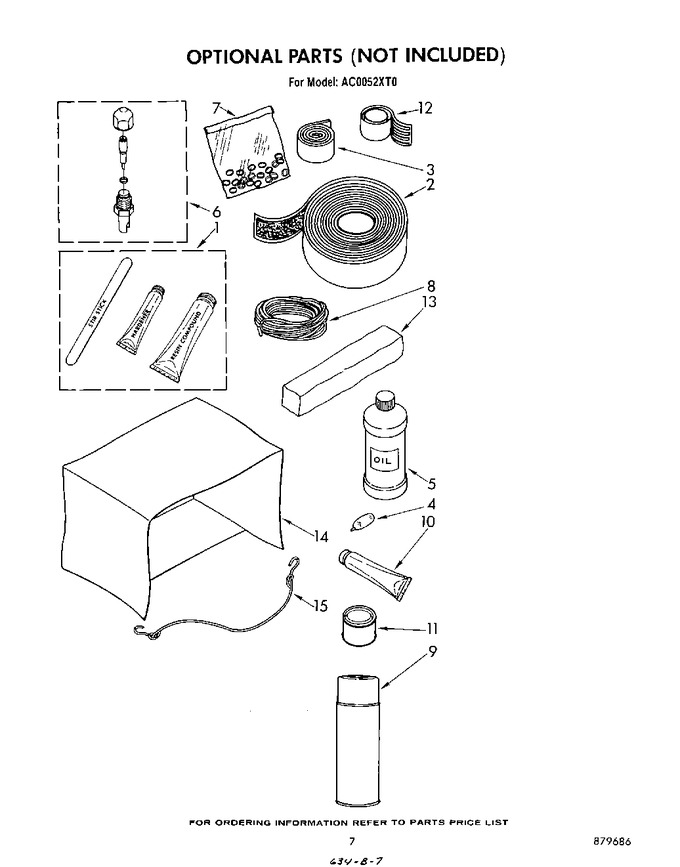

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	799833		Epoxy, Tube (aluminum Repair)		Appelez-nous	-
2	505168		Tape, No Drip 30`		Appelez-nous	-
3	479502		Tape, Vinyl 36`				$ 66.77
4	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
5	99243		Oil, Turbine 8 Fl. Oz.		Appelez-nous	-
6	WP978025		Valve, Access (1/4`` Tube O.d.)   (Replaces: 978025)			Immediately	$ 99.46
6	876764		Valve, Access (3/16`` Tube O.d.)   (Replaces: 876620)			Immediately	$ 86.33
6	978026		Valve Access (5/16`` Tube O.d.)			Immediately	$ 121.04
6	SF5538		Valve, Access (3/8`` Tube O.d.)   (Replaces: 978027)				$ 16.79
6	978028		Valve, Access (1/2`` Tube O.d.)		Appelez-nous	-
6	978029		Valve, Access (5/8`` Tube O.d.)				$ 93.85
6	978030		Valve, Access (3/4`` Tube O.d.)				$ 123.53
7	978865		Seal, Ring (access Valve) (20 - Pack)		Appelez-nous	-
8	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
8	47263		Wire, 25`` Roll (white 12 Ga.)		Appelez-nous	-
8	299885		Wire, 25` Roll (red 12 Ga.)		Appelez-nous	-
8	47261		Wire, 25`` Roll (black 12 Ga.)		Appelez-nous	-
8	242826		Wire, 25`` Roll (white 14 Ga.)		Appelez-nous	-
8	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
8	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
9	813684		Adhesive, Insulation (24 Oz. Spray)		Appelez-nous	-
10	WP279368		Adhesive, Insulation (2oz Tube)   (Replaces: 279368)			Immediately	$ 104.81
11	485426		Paint, Touch-up Starlight Gray 1/2 Pint (lacquer)		Appelez-nous	-
12	212643		Sealer, Permagum 4 - 1` Strips			Immediately	$ 86.78
13	4318168		Sealer, Permagum 1 Lb. Bar   (Replaces: 99344)			Immediately	$ 74.82
14	484067		Cover, Winter				$ 85.58
15	813610		Retainer, Cord (winter Cover)				$ 5.71

    View Diagram in Separate Window       Print Part List
