01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

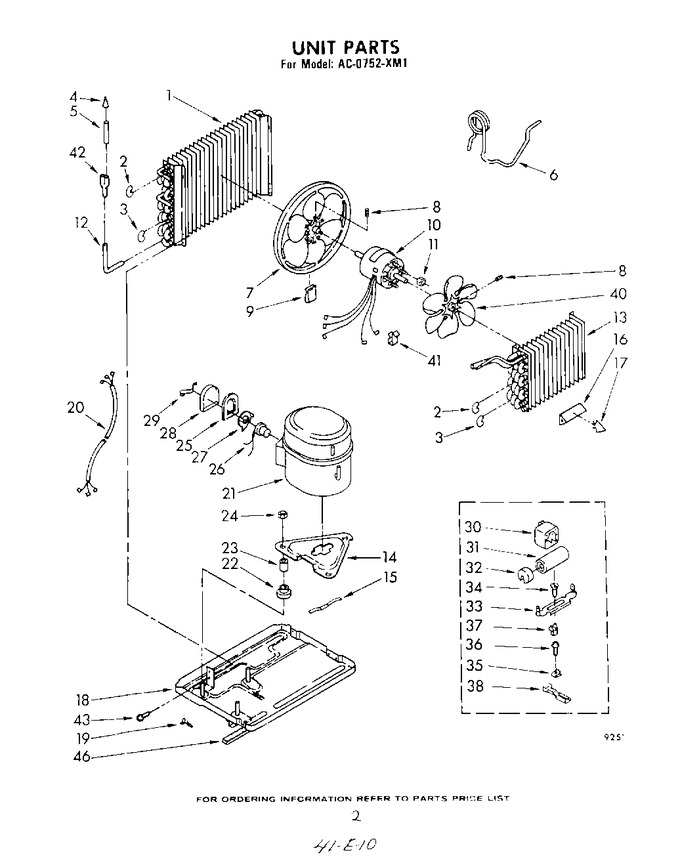

| 1 | 950844 | Condenser |
|
- | |||||
| 2 | 854624 | Bend, Return Condenser (2) Evaporator (8) |
|
- | |||||
| 3 | 855199 | Bend, Return Condenser (15) Evaporator (4) |
|
- | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 484230 | Tube & Strainer (includes Illus. 4) |
|
- | |||||
| 6 | 950843 | Tube, Restrictor (length 30.0``) |
|
- | |||||
| 7 | 997885 | Blade, Fan |
|
- | |||||
| 8 | 595085 | Setscrew, 5/16 X 1/4 |
|
- | |||||
| 9 | 485334 | Clip, Balancing |
|
- | |||||
| 10 | 949678 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | 950814 | Tube, 90~ Connect (1) |
|
- | |||||
| 13 | 950840 | Evaporator |
|
- | |||||
| 14 | 646497 | Plate, Mounting |
|
- | |||||
| 15 | 643179 | Spring, Mounting |
|
- | |||||
| 16 | 994262 | Anticipator, Temperature |
|
- | |||||
| 17 | 475577 | Clip, Anticipator |
|
- | |||||
| 18 | 950323 | Base |
|
$ 30.30 | |||||
| 19 | 855930 | Clamp, Restrictor Tube |
|
- | |||||
| 20 | 484136 | Harness, Wiring |
|
- | |||||
| 21 | 485397 | Compressor |
|
- | |||||
| 22 | 646499 | Grommet (3) |
|
- | |||||
| 23 | 949990 | Sleeve (3) |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | 643296 | Gasket, Terminal Cover |
|
- | |||||
| 26 | 950834 | Overload |
|
- | |||||
| 27 | 994171 | Spring, Overload |
|
- | |||||
| 28 | 643297 | Cover, Terminal |
|
- | |||||
| 29 | 643299 | Retainer, Terminal Cover |
|
- | |||||
| 30 | 484177 | Xrelay, Starting |
|
- | |||||
| 31 | 467614 | Xcapacitor |
|
- | |||||
| 32 | 791869 | Xcap, Capacitor |
|
- | |||||
| 33 | 35564 | Xbracket, Capacitor |
|
$ 262.34 | |||||
| 34 | 487880 | Xscrew, 10 X 5/8 (2) |
|
- | |||||
| 35 | 488660 | Xnut, Speed (Replaces: 486197) |
|
- | |||||
| 36 | WP965173 | Xscrew, 8 X 3/8 (Replaces: 487869) |
|
Immediately | $ 10.68 | ||||
| 37 | 90654 | Multiplier, Terminal |
|
- | |||||
| 38 | 45571 | Xclip, Terminal (8) |
|
- | |||||
| 40 | 997887 | Fan, Blade Evaporator |
|
- | |||||
| 41 | 852451 | Clamp, Wiring |
|
- | |||||
| 42 | 947364 | Tube, Flow Divider |
|
- | |||||
| 43 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 43 | 488481 | Screw, Repair |
|
- | |||||
| 46 | 484220 | Kit, Start Assist |
|
- | |||||
| 46 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 46 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 46 | 484067 | Cover, Winter |
|
$ 85.58 | |||||
| 46 | 485884 | Compressor Start Kit |
|
- | |||||
| 46 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 46 | 993191 | Seal, Base (r.s.) |
|
- | |||||
| 46 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 46 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 46 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 46 | 978028 | Valve, Access (1/2) |
|
- |
