SELECT A DIAGRAM

02 - Unit


03 - Lit/optional


04 - Air Flow And Control


05 - Optional (continued)


06 - Cabinet , Literature

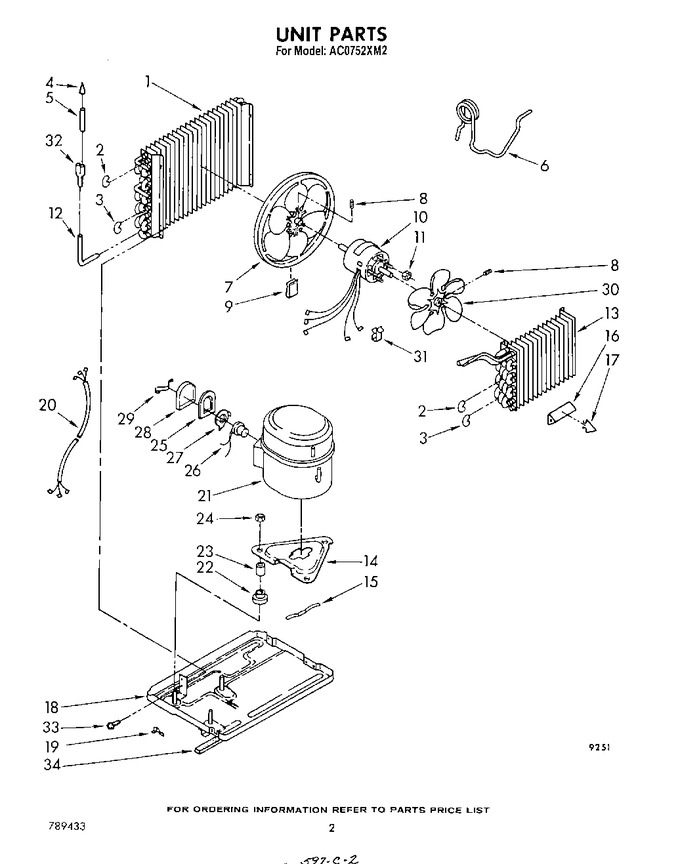

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	952576		Condenser		Appelez-nous	-
2	854624		Bend, Return Condenser (2) Evaporator (7)		Appelez-nous	-
3	855199		Bend, Return Condenser (15) Evaporator (5)		Appelez-nous	-
4	49599		Strainer, Tube		Appelez-nous	-
5	484230		Tube, Outlet (includes No.4)		Appelez-nous	-
6	952820		Tube, Restrictor (length 41.0``)		Appelez-nous	-
7	997885		Blade, Fan		Appelez-nous	-
8	595085		Setscrew, 5/16-24 X 1/4		Appelez-nous	-
9	876034		Clip, Balancing		Appelez-nous	-
10	952809		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	950814		Tube, 90~ Connect (1)		Appelez-nous	-
13	952572		Evaporator		Appelez-nous	-
14	949975		Plate, Mounting		Appelez-nous	-
15	643179		Spring, Mounting		Appelez-nous	-
16	994262		Anticipator, Temperature		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	950323		Base				$ 30.30
19	855930		Clamp, Restrictor Tube		Appelez-nous	-
20	484136		Harness, Wiring		Appelez-nous	-
21	952609		Compressor		Appelez-nous	-
22	646499		Grommet (3)		Appelez-nous	-
23	949990		Sleeve (3)		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	643296		Gasket, Terminal Cover		Appelez-nous	-
26	952610		Overload		Appelez-nous	-
27	949997		Spring, Overload		Appelez-nous	-
28	949999		Cover, Terminal		Appelez-nous	-
29	950005		Retainer, Terminal Cover		Appelez-nous	-
30	997887		Fan, Blade Evaporator		Appelez-nous	-
31	852451		Clamp, Wiring		Appelez-nous	-
32	947364		Tube, Flow Divider		Appelez-nous	-
33	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
33	488481		Screw, Repair		Appelez-nous	-
34	993191		Seal, Base (r.s.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
