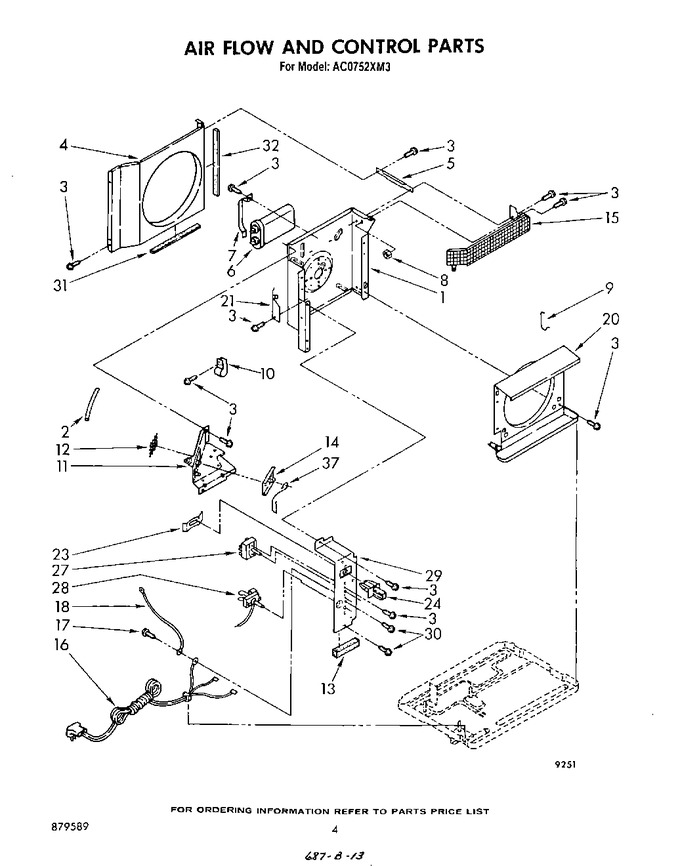

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	859822		Wall, Dividing		Appelez-nous	-
2	212643		Sealer, Tube   (Replaces: 859934)			Immediately	$ 86.78
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
3	488481		Screw, Repair		Appelez-nous	-
4	646297		Shroud, Condenser		Appelez-nous	-
5	649879		Support, Unit		Appelez-nous	-
6	999754		Capacitor, Running		Appelez-nous	-
7	856105		Bracket, Capacitor		Appelez-nous	-
8	486288		Nut, Speed No.8a		Appelez-nous	-
9	477442		Clip, Shroud		Appelez-nous	-
10	947072		Clamp, Wiring		Appelez-nous	-
11	646130		Extension, Dividing Wall		Appelez-nous	-
12	856929		Screen, Exhaust Door		Appelez-nous	-
13	857774		Seal, Control Panel Bottom		Appelez-nous	-
14	646134		Door, Exhaust		Appelez-nous	-
15	996685		Guard, Evaporator Impeller		Appelez-nous	-
16	646306		Cord, Appliance		Appelez-nous	-
17	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
18	856094		Wire, Ground		Appelez-nous	-
20	646123		Shroud, Evaporator		Appelez-nous	-
21	859955		Plate, Dividing Wall		Appelez-nous	-
23	853565		Retainer, Detent Spring		Appelez-nous	-
24	947468		Actuator, Exhaust Door		Appelez-nous	-
27	950283		Switch, Rotary		Appelez-nous	-
28	949411		Control, Temperature		Appelez-nous	-
29	993398		Panel, Control		Appelez-nous	-
30	488734		Screw, 6-32 X .175		Appelez-nous	-
31	859931		Seal, Condenser		Appelez-nous	-
32	857923		Seal, Condenser Shroud R.s.		Appelez-nous	-
37	950255		Arm, Exhaust Door		Appelez-nous	-
