SELECT A DIAGRAM

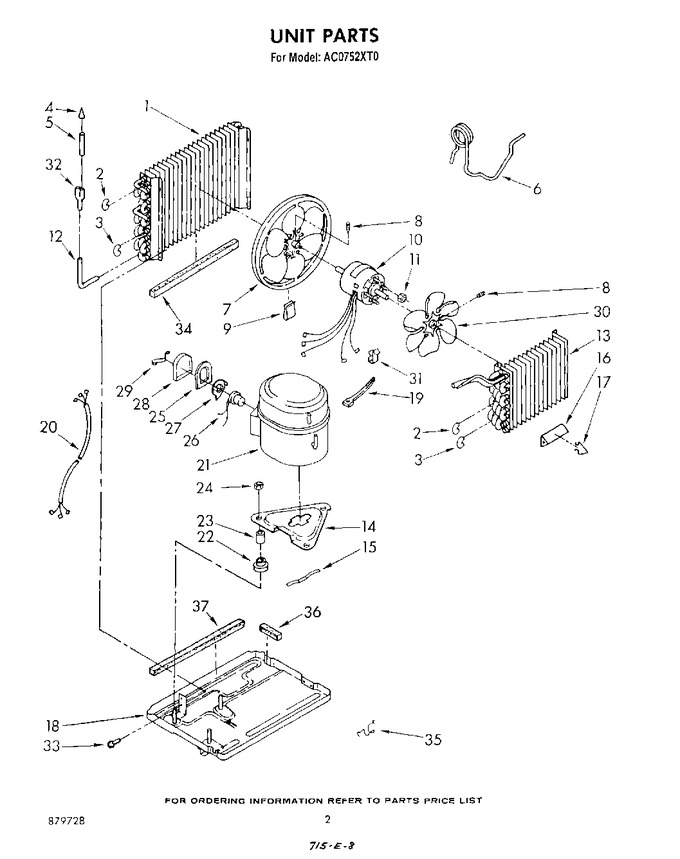

02 - Unit
03 - Airflow And Control
04 - Cabinet , Literature
05 - Accessory Kit
06 - Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 950844 | Condenser |
|
- | |||||
| 2 | 854624 | Bend, Return Condenser (2) Evaporator (7) |
|
- | |||||
| 3 | 855199 | Bend, Return Condenser (15) Evaporator (5) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 484230 | Tube, Outlet (includes No.4) |
|
- | |||||
| 6 | 952820 | Tube, Restrictor (length 41.0``) |
|
- | |||||
| 7 | 997885 | Blade, Fan |
|
- | |||||
| 8 | 595085 | Setscrew, 5/16-24 X 1/4 |
|
- | |||||
| 9 | 876034 | Clip, Balancing |
|
- | |||||
| 10 | 949678 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | 950814 | Tube, 90~ Connect (1) |
|
- | |||||
| 13 | 950840 | Evaporator |
|
- | |||||
| 14 | 646497 | Plate, Mounting |
|
- | |||||
| 15 | 643179 | Spring, Mounting |
|
- | |||||
| 16 | 994262 | Anticipator, Temperature |
|
- | |||||
| 17 | 475577 | Clip, Anticipator |
|
- | |||||
| 18 | 950323 | Base |
|
$ 30.30 | |||||
| 19 | WPW10339879 | Tie, Wire (4) (Replaces: 612805) |
|
$ 7.47 | |||||
| 20 | 484136 | Harness, Wiring |
|
- | |||||
| 21 | 485397 | Compressor |
|
- | |||||
| 22 | 646499 | Grommet (3) |
|
- | |||||
| 23 | 949990 | Sleeve (3) |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | 647154 | Gasket, Terminal Cover |
|
- | |||||
| 26 | 950834 | Overload |
|
- | |||||
| 27 | 994171 | Spring, Overload |
|
- | |||||
| 28 | 647152 | Cover, Terminal |
|
- | |||||
| 29 | 643299 | Retainer, Terminal Cover |
|
- | |||||
| 30 | 997887 | Fan, Blade Evaporator |
|
- | |||||
| 31 | 852451 | Clamp, Wiring |
|
- | |||||
| 32 | 947364 | Tube, Flow Divider |
|
- | |||||
| 33 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 33 | 488481 | Screw, Repair |
|
- | |||||
| 34 | WP854334 | Seal, Condensate (condenser Bottom) (Replaces: 852063) |
|
$ 12.55 | |||||
| 35 | 949634 | Clip, Front Mtg. (2) |
|
- | |||||
| 36 | 646870 | Seal, Condensate (base R.h. Flange) |
|
- | |||||
| 37 | 854841 | Seal, Strip (base Rear Flange) |
|
- |
