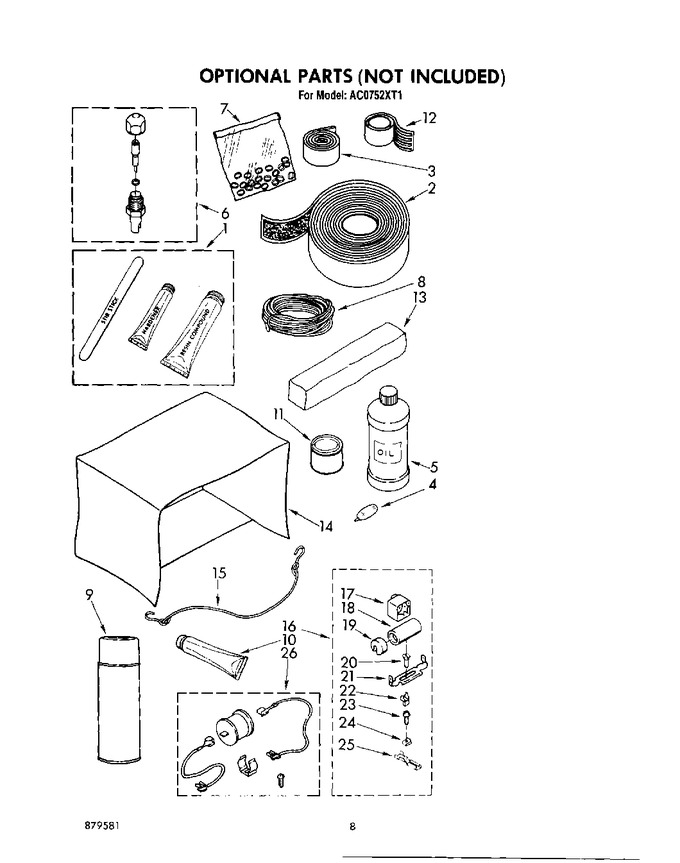

06 - Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 799833 | Epoxy, Tube (aluminum Repair) |
|
- | |||||
| 2 | 505168 | Tape, No Drip 30` |
|
- | |||||
| 3 | 479502 | Tape, Vinyl 36` |
|
$ 66.77 | |||||
| 4 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 5 | 99243 | Oil, Turbine 8 Fl. Oz. |
|
- | |||||
| 6 | 978029 | Valve, Access (5/8`` Tube O.d.) |
|
$ 93.85 | |||||
| 6 | 978026 | Valve Access (5/16`` Tube O.d.) |
|
Immediately | $ 121.04 | ||||
| 6 | 978028 | Valve, Access (1/2`` Tube O.d.) |
|
- | |||||
| 6 | SF5538 | Valve, Access (3/8`` Tube O.d.) (Replaces: 978027) |
|
$ 16.79 | |||||
| 6 | WP978025 | Valve, Access (1/4`` Tube O.d.) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 6 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| 6 | 978030 | Valve, Access (3/4`` Tube O.d.) |
|
$ 123.53 | |||||
| 7 | 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- | |||||
| 8 | 47263 | Wire, 25`` Roll (white 12 Ga.) |
|
- | |||||
| 8 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 8 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 8 | 242826 | Wire, 25`` Roll (white 14 Ga.) |
|
- | |||||
| 8 | 47261 | Wire, 25`` Roll (black 12 Ga.) |
|
- | |||||
| 8 | 299885 | Wire, 25` Roll (red 12 Ga.) |
|
- | |||||
| 8 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 9 | 813684 | Adhesive, Insulation (24 Oz. Spray) |
|
- | |||||
| 10 | WP279368 | Adhesive, Insulation (2oz Tube) (Replaces: 279368) |
|
Immediately | $ 104.81 | ||||
| 11 | 485426 | Paint, Touch-up Starlight Gray 1/2 Pint (lacquer) |
|
- | |||||
| 12 | 212643 | Sealer, Permagum 4 - 1` Strips |
|
Immediately | $ 86.78 | ||||
| 13 | 4318168 | Sealer, Permagum 1 Lb. Bar (Replaces: 99344) |
|
Immediately | $ 74.82 | ||||
| 14 | 484067 | Cover, Winter |
|
$ 85.58 | |||||
| 15 | 813610 | Retainer, Cord (winter Cover) |
|
$ 5.71 | |||||
| 16 | 485884 | Hard Start Kit (use With 833896 Compressor) |
|
- | |||||
| 17 | 484177 | Relay, Start |
|
- | |||||
| 18 | 467614 | Capacitor, Start |
|
- | |||||
| 19 | WP965173 | Cap, Capacitor (Replaces: 965173) |
|
Immediately | $ 10.68 | ||||
| 20 | WP965173 | Screw (2) (Replaces: 965173) |
|
Immediately | $ 10.68 | ||||
| 21 | 35564 | Bracket |
|
$ 262.34 | |||||
| 22 | 350914 | Multiplier, Terminal |
|
- | |||||
| 23 | 487880 | Screw |
|
- | |||||
| 24 | 488660 | Nut, Speed |
|
- | |||||
| 25 | WP90028 | Terminal (8) (Replaces: 90028) |
|
$ 5.82 | |||||
| 26 | 484220 | Start Assist Kit |
|
- |
