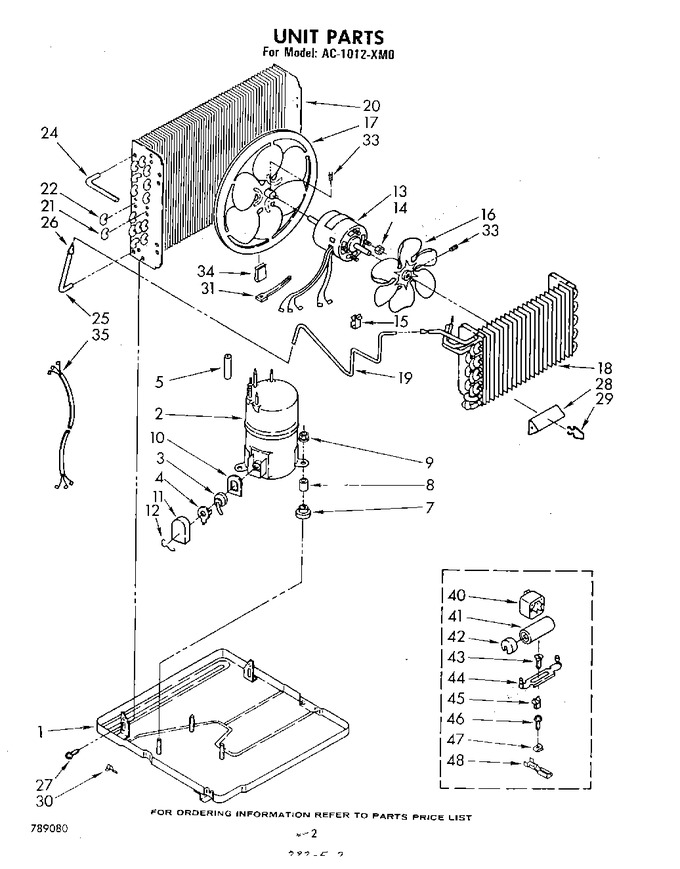

01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 859405 | Base |
|
- | |||||
| 2 | 484081 | Compressor |
|
- | |||||
| 3 | 852521 | Overload |
|
- | |||||
| 4 | 644362 | Spring, Overload |
|
- | |||||
| 5 | 857548 | Split Dampener |
|
- | |||||
| 7 | 469581 | Grommet, Compressor Mounting (3) |
|
- | |||||
| 8 | 858148 | Sleeve, Compressor Mounting (3) |
|
- | |||||
| 9 | 858121 | Nut, Lock (3) |
|
- | |||||
| 10 | 643296 | Gasket, Terminal Cover |
|
- | |||||
| 11 | 855762 | Cover, Terminal |
|
- | |||||
| 12 | 475062 | Retainer, Terminal Cover |
|
- | |||||
| 13 | 995305 | Motor, Fan |
|
- | |||||
| 14 | WP488130 | Nut, Hex Keps 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 15 | 852451 | Clamp, Cable |
|
- | |||||
| 16 | 998090 | Blade, Fan (evaporator) |
|
- | |||||
| 17 | 997904 | Blade, Fan (condenser) |
|
- | |||||
| 18 | 948367 | Evaporator |
|
- | |||||
| 19 | 997903 | Tube, Restrictor (length 28.0``) |
|
- | |||||
| 20 | 949834 | Condenser |
|
- | |||||
| 21 | 854624 | Bend, Return (7) |
|
- | |||||
| 22 | 855199 | Bend, Return (15) |
|
- | |||||
| 24 | 947612 | Tube, 90o Connect |
|
- | |||||
| 25 | 484230 | Tube, Strainer Assembly (includes Part No. 49599) |
|
- | |||||
| 26 | 49599 | Strainer |
|
- | |||||
| 27 | WP489069 | Screw, Sm No.8 X 1/2a (7) (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 28 | 996773 | Anticipator, Temperature |
|
- | |||||
| 29 | 475577 | Clip, Temperature Anticipator |
|
- | |||||
| 30 | 855930 | Clamp, Tube |
|
- | |||||
| 31 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 33 | 595085 | Setscrew, 5/16 X 1/4 |
|
- | |||||
| 34 | 485334 | Clip, Fan Balancing |
|
- | |||||
| 35 | 484136 | Harness, Wiring |
|
- | |||||
| 40 | 484177 | Xrelay |
|
- | |||||
| 41 | 48616 | Xcapacitor |
|
- | |||||
| 42 | 465280 | Xcap, Capacitor |
|
- | |||||
| 43 | 487880 | Xscrew, 10 X 5/8 |
|
- | |||||
| 44 | 35564 | Xbracket, Capacitor |
|
$ 262.34 | |||||
| 45 | 90654 | Multiplier, Terminal |
|
- | |||||
| 46 | WP965173 | Xscrew, 8 X 3/8 (Replaces: 487869) |
|
Immediately | $ 10.68 | ||||
| 47 | 488660 | Xnut, Speed (Replaces: 486197) |
|
- | |||||
| 48 | 484184 | Cover, Winter |
|
$ 64.85 | |||||
| 48 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 48 | 485608 | Start Kit |
|
- | |||||
| 48 | 484220 | Start Assist Kit |
|
- | |||||
| 48 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 48 | 45571 | Xclip, Terminal |
|
- | |||||
| 48 | 505168 | No Drip Tape (for Sweating Tubes) |
|
- | |||||
| 48 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 48 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 48 | SF5516 | Valve, Access (5/16``) (Replaces: 978026) |
|
Immediately | $ 14.69 | ||||
| 48 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 48 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 48 | 978029 | Valve Access (5/8``) |
|
$ 93.85 |
