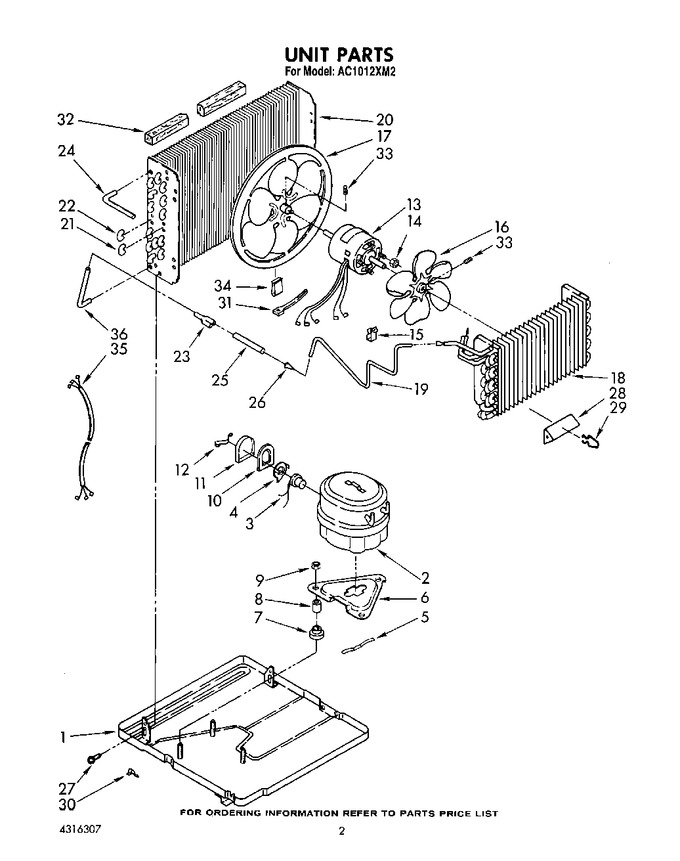

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	858949		Base		Appelez-nous	-
2	952609		Compressor		Appelez-nous	-
3	952610		Overload		Appelez-nous	-
4	949997		Spring, Overload		Appelez-nous	-
5	643179		Spring, Compressor Mounting		Appelez-nous	-
6	646497		Plate, Compressor Mounting		Appelez-nous	-
7	469581		Grommet, Compressor Mounting (3)		Appelez-nous	-
8	951094		Sleeve, Compressor Mounting (3)		Appelez-nous	-
9	858121		Nut, Lock (3)		Appelez-nous	-
10	643296		Gasket, Terminal Cover		Appelez-nous	-
11	949999		Cover, Terminal		Appelez-nous	-
12	950005		Retainer, Terminal Cover		Appelez-nous	-
13	995303		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex Keps 8-32 (4)   (Replaces: 488130)				$ 6.59
15	852451		Clamp, Cable		Appelez-nous	-
16	998090		Blade, Fan (evaporator)		Appelez-nous	-
17	997904		Blade, Fan (condenser)		Appelez-nous	-
18	948367		Evaporator		Appelez-nous	-
19	951001		Tube, Restrictor (length 28.0``)		Appelez-nous	-
20	950933		Condenser		Appelez-nous	-
21	854624		Bend, Return (7)		Appelez-nous	-
22	855199		Bend, Return (16)		Appelez-nous	-
23	947364		Tube, Flow Divider		Appelez-nous	-
24	858187		Tube, 90~ Connect		Appelez-nous	-
25	484230		Tube, Outlet (includes No. 26)		Appelez-nous	-
26	49599		Strainer, Tube		Appelez-nous	-
27	WP489069		Screw, Sm No.8 X 1/2a (7)   (Replaces: 488480)			Immediately	$ 7.56
28	996773		Anticipator, Temperature		Appelez-nous	-
29	475577		Clip, Temperature Anticipator		Appelez-nous	-
30	855930		Clamp, Tube		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	948090		Seal, Condenser Top		Appelez-nous	-
33	595085		Setscrew, 5/16-24 X 1/4		Appelez-nous	-
34	876034		Clip, Fan Balancing		Appelez-nous	-
35	484136		Harness, Wiring		Appelez-nous	-
36	950814		Tube, 90~ Connect		Appelez-nous	-
