02 - Unit
03 - Airflow And Control
04 - Cabinet
05 - Lit/optional
06 - Accessory Kit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

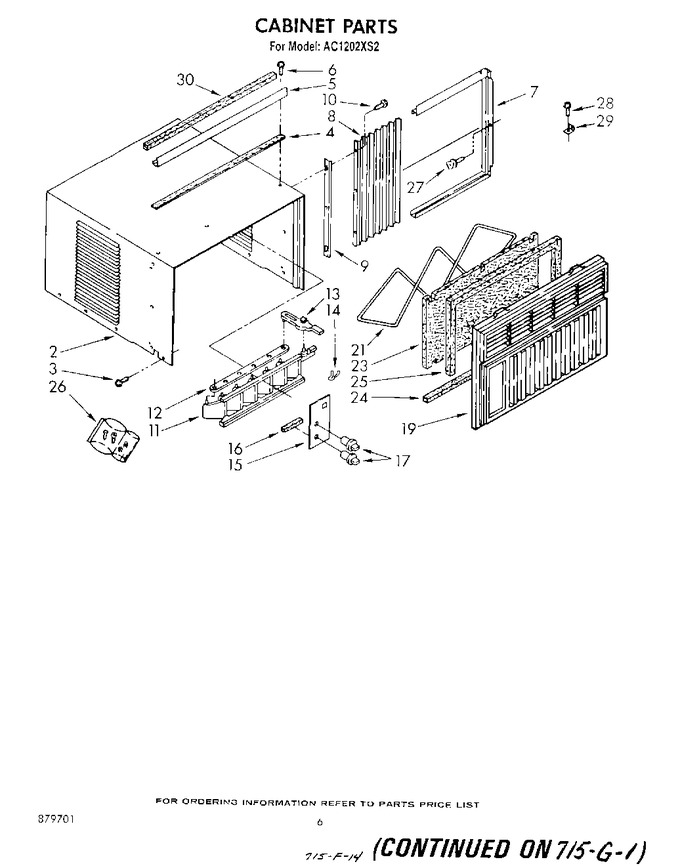

| 2 | 856686 | Cabinet |
|
- | |||||
| 3 | WP489128 | Screw, St 8-32 X 3/8 (8) (Replaces: 488875) |
|
$ 10.26 | |||||
| 4 | 856989 | Strip, Seal |
|
- | |||||
| 5 | 993786 | Channel, Top Mounting |
|
- | |||||
| 6 | WP308685 | Screw, Sm No.10 X 1/2ab (3) (Replaces: 488720) |
|
Immediately | $ 7.08 | ||||
| 7 | 855572 | Housing, Curtain (r.s.) |
|
- | |||||
| 7 | 855573 | Housing, Curtain L.s. |
|
- | |||||
| 8 | 947160 | Curtain (2) |
|
- | |||||
| 9 | 644224 | Retainer, Curtain (2) |
|
- | |||||
| 10 | 488730 | Screw, Sm No.8 X 7/16a (6) |
|
- | |||||
| 11 | 641481 | Louver, Vertical |
|
- | |||||
| 12 | 641482 | Link, Vertical Louver |
|
- | |||||
| 13 | 645887 | Handle, Vertical Louver |
|
- | |||||
| 14 | 641484 | Spring, Dent |
|
$ 150.14 | |||||
| 15 | 952539 | Plate, Escutcheon |
|
- | |||||
| 16 | 470036 | Spacer, Escutcheon Plate (2) |
|
- | |||||
| 17 | 947264 | Knob, Control (2) |
|
- | |||||
| 19 | 950534 | Front, Cabinet |
|
- | |||||
| 21 | 646963 | Retainer, Filter |
|
- | |||||
| 23 | 855246 | Filter |
|
- | |||||
| 24 | 852923 | Seal, Cabinet Front |
|
- | |||||
| 25 | 645883 | Seal, Strip (top & Sides) |
|
- | |||||
| 26 | 476180 | Bag, Accessory |
|
- | |||||
| 27 | 475581 | Screw, Thumb |
|
- | |||||
| 28 | 488255 | Screw, Round Head Wood No.8 X 3/4 (1) |
|
- | |||||
| 29 | 644228 | Bracket, Window Lock |
|
- | |||||
| 30 | 469877 | Seal, Meeting Rail |
|
- |
