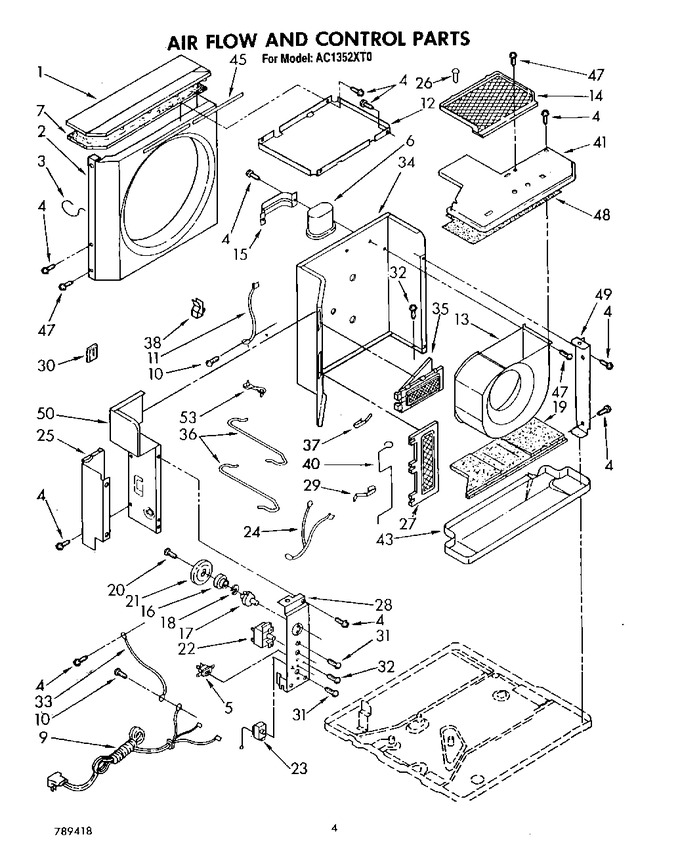

03 - Air Flow And Control


04 - Cabinet


05 - Accessory Kit


06 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	997264		Cover, Condenser Shroud		Appelez-nous	-
2	953028		Shroud, Condenser		Appelez-nous	-
3	994686		Clip, Shroud (2)		Appelez-nous	-
4	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
4	WP308685		Screw, Repair   (Replaces: 488861)			Immediately	$ 7.08
5	950529		Switch, Sliding		Appelez-nous	-
6	1156153		Capacitor, Running		Appelez-nous	-
7	948600		Seal, Condenser Fin		Appelez-nous	-
9	61253		Cable, Appliance   (Replaces: 859444)				$ 25.10
10	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
11	998177		Ground Wire		Appelez-nous	-
12	1156536		Unit, Support		Appelez-nous	-
13	997220		Housing, Blower Wheel		Appelez-nous	-
14	1160859		Guard, Evaporator Impeller		Appelez-nous	-
15	852992		Bracket		Appelez-nous	-
16	647879		Bushing		Appelez-nous	-
17	852669		Shaft, Control		Appelez-nous	-
18	00647881		Spring, Washer   (Replaces: 647881)				$ 366.51
19	997236		Insulation, Blower Wheel		Appelez-nous	-
20	489092		Screw, Sems 8-15 X 5/8		Appelez-nous	-
21	647882		Cam		Appelez-nous	-
22	950522		Switch, Rotary		Appelez-nous	-
23	951071		Control, Temperature		Appelez-nous	-
24	950369		Wire Asm.		Appelez-nous	-
25	952208		Cover, Control Access		Appelez-nous	-
26	1161162		Clip (2)		Appelez-nous	-
27	997222		Door, Fresh Air		Appelez-nous	-
28	950545		Panel, Control		Appelez-nous	-
29	998178		Spring, Fresh Air Door		Appelez-nous	-
30	1162510		Seal, Evaporator Outlet Tube		Appelez-nous	-
31	488734		Screw, 6-32 X .175		Appelez-nous	-
32	488624		Screw, 8 X 3/8		Appelez-nous	-
33	997388		Ground Wire		Appelez-nous	-
34	953040		Wall, Dividing		Appelez-nous	-
35	997221		Door, Exhaust		Appelez-nous	-
36	647883		Wire, Control (blue)		Appelez-nous	-
36	1162615		Wire, Control (red)		Appelez-nous	-
37	859369		Spring, Exhaust Door		Appelez-nous	-
38	947072		Clamp, Cable (2)		Appelez-nous	-
40	997223		Actuator, Door		Appelez-nous	-
41	997269		Cover, Evaporator		Appelez-nous	-
43	1159315		Pan, Condensate (includes No.49)		Appelez-nous	-
45	997266		Seal, Condenser Cover (side)		Appelez-nous	-
45	WP854334		Seal, Condenser Cover (rear)   (Replaces: 997267)				$ 12.55
47	WP488729		Screw, 8 X 1/2   (Replaces: 487910)			Immediately	$ 7.45
48	948234		Insulation, Evaporator Cover		Appelez-nous	-
49	1161423		Adapter, Evaporator Header Plate		Appelez-nous	-
50	1155423		Extension Assembly, Divider Wall		Appelez-nous	-
53	648791		Clamp, Cable		Appelez-nous	-
