SELECT A DIAGRAM

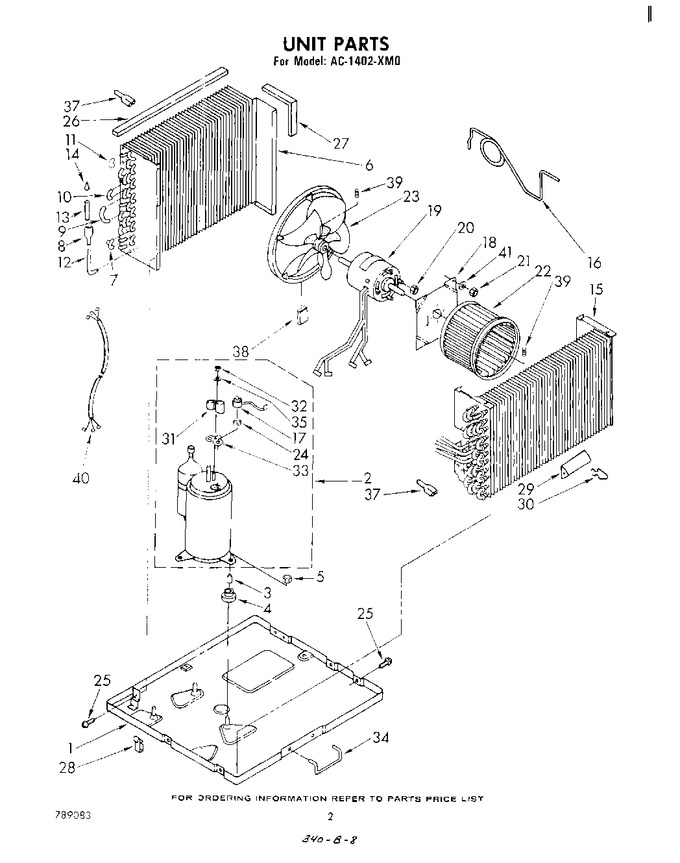

02 - Unit


03 - Air Flow And Control, Lit/optional


04 - Cabinet


05 - Accessory Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	950365		Base		Appelez-nous	-
2	876785		Compressor		Appelez-nous	-
3	950020		Sleeve (3)		Appelez-nous	-
4	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
5	858121		Locknut (3)		Appelez-nous	-
6	950813		Condenser		Appelez-nous	-
7	948810		Bend, Return (3-way)		Appelez-nous	-
8	466527		Tube, Flow Divider		Appelez-nous	-
9	997669		Bend, Return (12)		Appelez-nous	-
10	855199		Bend, Return (16)		Appelez-nous	-
11	998682		Bend, Return (3)		Appelez-nous	-
12	950814		Tube, 90~ Connect		Appelez-nous	-
13	484230		Tube, Strainer Assembly (includes Illus. 14)		Appelez-nous	-
14	49599		Strainer		Appelez-nous	-
15	947359		Evaporator		Appelez-nous	-
16	950812		Tube, Restrictor (3) (length 44.0``)		Appelez-nous	-
17	950031		Overload		Appelez-nous	-
18	998024		Plate, Fan Motor		Appelez-nous	-
19	947187		Motor, Fan		Appelez-nous	-
20	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
21	858122		Locknut (4)		Appelez-nous	-
22	855608		Wheel, Blower		Appelez-nous	-
23	949536		Blade, Fan		Appelez-nous	-
24	950032		Spring, Overload		Appelez-nous	-
25	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
26	649609		Seal		Appelez-nous	-
27	649610		Seal		Appelez-nous	-
28	642684		Clamp, Tube		Appelez-nous	-
29	996773		Anticipator, Temperature		Appelez-nous	-
30	475577		Clip, Anticipator		Appelez-nous	-
31	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
32	WP950027		Retainer, Cover   (Replaces: 950027)				$ 5.20
33	WP950035		Gasket, Cover   (Replaces: 950035)				$ 78.01
34	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
35	950037		Gasket, Nut		Appelez-nous	-
37	947364		Tube, Flow Divider		Appelez-nous	-
38	485334		Clip, Balancing		Appelez-nous	-
39	595085		Setscrew, 5/16 X 1/4 (2)		Appelez-nous	-
40	484136		Harness, Wiring		Appelez-nous	-
41	978030		Valve, Access (3/4``)				$ 123.53
41	978026		Valve, Access (5/16``)			Immediately	$ 121.04
41	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
41	978028		Valve, Access (1/2)		Appelez-nous	-
41	978029		Valve Access (5/8``)				$ 93.85
41	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
41	470280		Washer, Shim (4)		Appelez-nous	-
41	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
41	505168		No Drip Tape (for Sweating Tubes)		Appelez-nous	-
41	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
