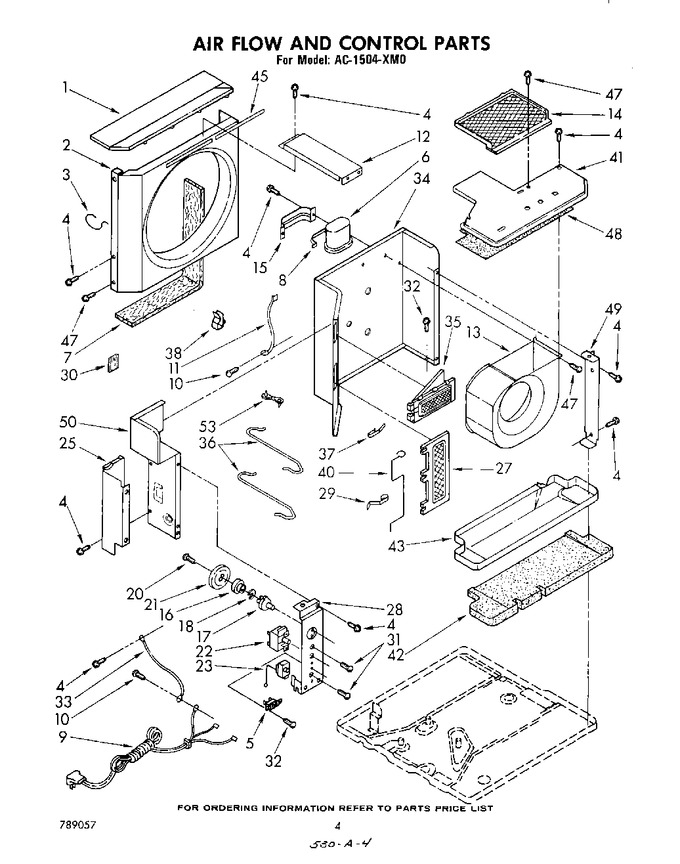

03 - Airflow And Control , Lit/optional


04 - Cabinet


05 - Accessory Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	997264		Cover, Condenser Shroud		Appelez-nous	-
2	997224		Shroud, Condenser (requires Insulation No. 469938)		Appelez-nous	-
3	477442		Clip, Shroud (2)		Appelez-nous	-
4	WP308685		Screw, Repair   (Replaces: 488861)			Immediately	$ 7.08
4	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
5	950529		Switch, Sliding		Appelez-nous	-
6	948043		Capacitor, Running		Appelez-nous	-
7	948600		Seal, Condenser Fin		Appelez-nous	-
8	475844		Bracket		Appelez-nous	-
9	649070		Cable, Appliance		Appelez-nous	-
10	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
11	998177		Ground Wire		Appelez-nous	-
12	997262		Support, Unit		Appelez-nous	-
13	997220		Housing, Blower Wheel		Appelez-nous	-
14	856506		Guard, Evaporator Impeller		Appelez-nous	-
15	852992		Bracket		Appelez-nous	-
16	647879		Bushing		Appelez-nous	-
17	852669		Shaft, Control		Appelez-nous	-
18	00647881		Spring, Washer   (Replaces: 647881)				$ 366.51
20	489092		Screw, Sems 7-18 X 5/8		Appelez-nous	-
21	647882		Cam		Appelez-nous	-
22	950522		Switch, Rotary		Appelez-nous	-
23	949297		Control, Temperature		Appelez-nous	-
25	997278		Cover, Control Access		Appelez-nous	-
27	997222		Door, Fresh Air		Appelez-nous	-
28	950545		Panel, Control		Appelez-nous	-
29	998178		Spring, Fresh Air Door		Appelez-nous	-
30	948519		Seal, Evaporator Outlet Tube		Appelez-nous	-
31	488734		Screw, 6-32 X .175		Appelez-nous	-
32	488624		Screw, 8 X 3/8		Appelez-nous	-
33	997388		Ground Wire		Appelez-nous	-
34	997208		Wall, Dividing (requires Insulation No. 469938)		Appelez-nous	-
35	997221		Door, Exhaust		Appelez-nous	-
36	859370		Wire, Control (fresh Air)		Appelez-nous	-
36	647883		Wire, Control Exhaust		Appelez-nous	-
37	859369		Spring, Exhaust Door		Appelez-nous	-
38	947072		Clamp, Cable (2)		Appelez-nous	-
40	997223		Actuator, Door		Appelez-nous	-
41	997269		Cover, Evaporator (requires Insulation No. 469938)		Appelez-nous	-
42	997237		Insulation, Condensate Pan		Appelez-nous	-
43	997238		Pan, Condensate		Appelez-nous	-
45	WP854334		Seal, Condenser Cover (rear)   (Replaces: 997267)				$ 12.55
45	997265		Seal, Condenser Cover (front)		Appelez-nous	-
45	997266		Seal, Condenser Cover (side)		Appelez-nous	-
47	WP488729		Screw, 8 X 1/2   (Replaces: 487910)			Immediately	$ 7.45
48	948234		Insulation, Evaporator Cover		Appelez-nous	-
49	997239		Adapter, Evaporator Header Plate		Appelez-nous	-
50	997342		Extension Assembly, Divider Wall		Appelez-nous	-
53	950355		Guide, Use & Care		Appelez-nous	-
53	789057		List, Parts		Appelez-nous	-
53	950801		Guide, Consumer`s Buy		Appelez-nous	-
53	950901		Guide, Energy		Appelez-nous	-
53	648791		Clamp, Cable		Appelez-nous	-
53	978317		Adhesive, To Attach Insulation (24 Oz.)		Appelez-nous	-
53	212643		Sealer, Gum (cabinets & Windows)   (Replaces: 470168)			Immediately	$ 86.78
53	997236		Insulation, Base		Appelez-nous	-
53	855438		Insulation, Cabinet (top)		Appelez-nous	-
53	854937		Insulation, Cabinet (rigth Side)		Appelez-nous	-
53	854938		Insulation, Cabinet (left Side)		Appelez-nous	-
53	998179		Flange, Seal Packet		Appelez-nous	-
53	47261		Wire, Black (25 Ft.)		Appelez-nous	-
53	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
53	47263		Wire, White (25 Ft.)		Appelez-nous	-
53	485426		Lacquer, Starlite Gray (1/2 Pt. Uncut)		Appelez-nous	-
53	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
53	484069		Cover, Winter				$ 62.49
53	950899		Sheet, Tech		Appelez-nous	-
