SELECT A DIAGRAM

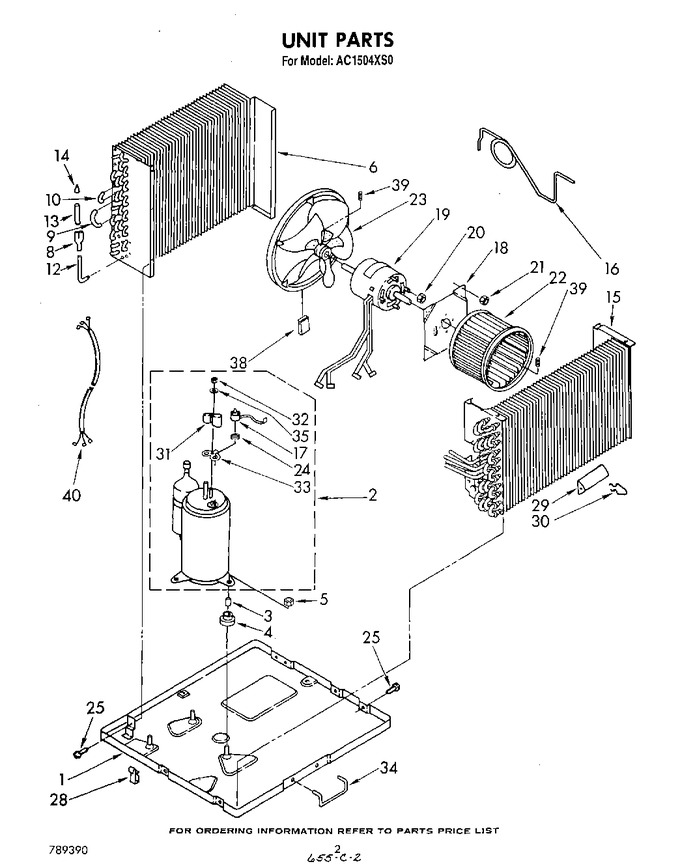

02 - Unit


03 - Air Flow And Control


04 - Cabinet


05 - Accessory Kit


06 - Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	950364		Base		Appelez-nous	-
2	813640		Compressor		Appelez-nous	-
3	950020		Sleeve (3)		Appelez-nous	-
4	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
5	858121		Locknut (3)		Appelez-nous	-
6	951296		Condenser		Appelez-nous	-
8	947364		Tube, Flow Divider		Appelez-nous	-
9	997669		Bend, Return (2)		Appelez-nous	-
10	855199		Bend, Return (22)		Appelez-nous	-
12	950814		Tube, 90~ Connect		Appelez-nous	-
13	484230		Tube, Strainer Assembly (includes Illus. 14)		Appelez-nous	-
14	49599		Strainer		Appelez-nous	-
15	947382		Evaporator		Appelez-nous	-
16	951295		Tube, Restrictor (2) (length 34.5``)		Appelez-nous	-
17	951300		Overload		Appelez-nous	-
18	998024		Plate, Fan Motor		Appelez-nous	-
19	952072		Motor, Fan		Appelez-nous	-
20	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
21	858122		Locknut (4)		Appelez-nous	-
22	647618		Wheel, Blower		Appelez-nous	-
23	997226		Blade, Fan		Appelez-nous	-
24	950032		Spring, Overload		Appelez-nous	-
25	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
28	642684		Clamp, Tube		Appelez-nous	-
29	472046		Anticipator, Temperature		Appelez-nous	-
30	472047		Clip, Anticipator		Appelez-nous	-
31	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
32	WP950027		Retainer, Cover   (Replaces: 950027)				$ 5.20
33	WP950035		Gasket, Cover   (Replaces: 950035)				$ 78.01
34	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
35	950037		Gasket, Nut		Appelez-nous	-
38	876034		Clip, Balancing		Appelez-nous	-
39	595085		Setscrew, 5/16 X 1/4 (2)		Appelez-nous	-
40	484136		Harness, Wiring		Appelez-nous	-
	LIT789390		List, Repair Parts		Appelez-nous	-
	LIT1155953		Guide, Energy		Appelez-nous	-
	LIT950355		Manual, Owners		Appelez-nous	-
	LIT951335		Sheet, Tech And Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
