1 - Freezer Door
2 - Fresh Food Door
3 - Freezer Section
4 - Fresh Food Section
5 - Fresh Food Shelves
6 - Unit Parts
7 - Icemaker Wr30x0327
SELECT A DIAGRAM
New Model Search:

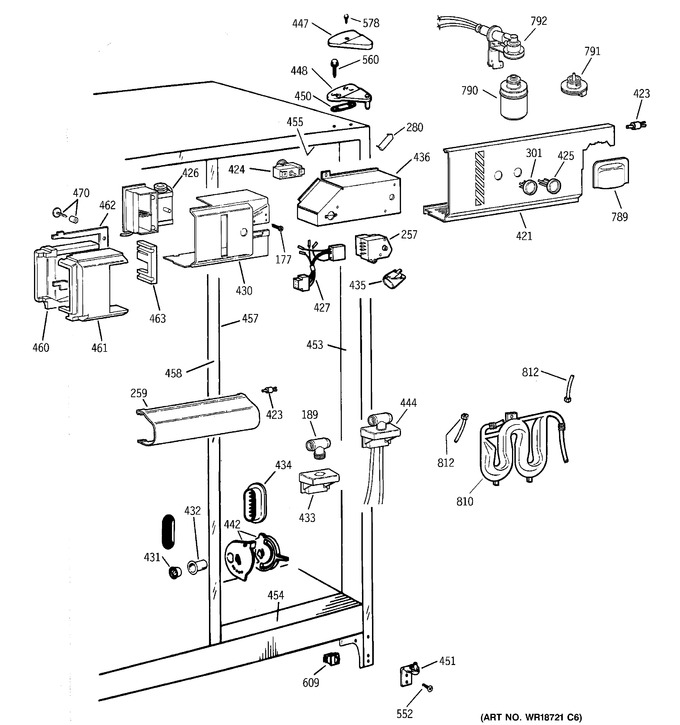

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 177 | WR1X5034 | Screw 8-18 A Hx 1/2 S |
|
- | |||||
| 189 | WR2X9243 | Socket Light |
|
- | |||||
| 257 | WG04F00202 | Control Defrost (Replaces: WR9X489) |
|
Immediately | $ 76.65 | ||||
| 259 | WR17X3909 | Shield Light Lower Ff |
|
- | |||||
| 280 | WR2X8524 | Cap Corner Oc (bk) |
|
- | |||||
| 301 | WR02X10429 | Knob Temp Cont |
|
- | |||||
| 421 | WR17X10555 | Shield Light Ff |
|
- | |||||
| 423 | WR02X10050 | Grommet Suppt Lt Shield |
|
- | |||||
| 423 | WR2X6347 | Support Shield Top |
|
- | |||||
| 424 | WR2X8914 | Sleeve Vinyl |
|
- | |||||
| 424 | WR9X599 | Control Temp |
|
- | |||||
| 425 | WR02X10430 | Knob Temp Cont |
|
- | |||||
| 426 | WR9X522 | Damper Control Ff |
|
- | |||||
| 427 | WR23X489 | Harness Control Mod |
|
- | |||||
| 430 | WR17X3416 | Housing Control |
|
- | |||||
| 431 | WR2X9299 | Cap Mullion Duct |
|
- | |||||
| 432 | WR2X8654 | Duct Mullion |
|
- | |||||
| 433 | WR2X9239 | Housing Lamp Socket |
|
- | |||||
| 434 | WR2X9431 | Duct Air Return Asm Ff |
|
- | |||||
| 435 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 7.51 | |||||
| 435 | 60A | Lamp 60w Appl |
|
- | |||||
| 435 | STD372402 | Lamp 40 W |
|
- | |||||
| 436 | WR2X8909 | Bracket Control Mod |
|
- | |||||
| 442 | WR2X9432 | Control Meat Pan Asm |
|
- | |||||
| 444 | WR23X10129 | Housing Light Lwr Asm |
|
- | |||||
| 447 | WR2X8846 | Cover Hinge Fz Bk |
|
- | |||||
| 447 | WR2X8845 | Cover Hinge Ff Bk |
|
- | |||||
| 448 | WR13X659 | Hinge Top Asm |
|
$ 119.11 | |||||
| 450 | WR2X4194 | Shim Hinge Top |
|
- | |||||
| 451 | WG03L00144 | Hinge Btm Pin & Cam Asm (Replaces: WR13X10020) |
|
Immediately | $ 72.68 | ||||
| 453 | WR40X1734 | Breaker Strip R/s Ff |
|
- | |||||
| 454 | WR40X1735 | Breaker Strip Btm Ff |
|
- | |||||
| 455 | WR40X1736 | Breaker Strip Top Ff |
|
- | |||||
| 457 | WR40X10029 | Breaker Strip L/s Ff |
|
- | |||||
| 458 | WR40X1739 | Mullion Bk |
|
- | |||||
| 458 | WR02X10334 | Clip Mullion Btm |
|
- | |||||
| 458 | WR2X9376 | Bracket Mullion Top |
|
- | |||||
| 460 | WR2X8911 | Duct Air Rear |
|
- | |||||
| 461 | WZ06X0136 | Scr 8-18 Ab Hxw 1/2 S |
|
- | |||||
| 461 | WR2X8910 | Duct Air Front |
|
- | |||||
| 462 | WR14X442 | Gasket Air Duct |
|
- | |||||
| 463 | WR82X338 | Insulation Bellows |
|
- | |||||
| 470 | WR1X1929 | Spacer Screw |
|
- | |||||
| 470 | WR14X465 | Gasket Pan Cvr Rear |
|
- | |||||
| 552 | WR01X10034 | Scr 12-24 Tt Ih .975 S |
|
- | |||||
| 560 | WR1X2140 | Screw |
|
- | |||||
| 578 | WZ02X0464 | Screw 8-32 X 3/8 |
|
- | |||||
| 609 | WG03F09086 | Switch Light (Replaces: WR23X10130) |
|
Immediately | $ 10.01 | ||||
| 789 | WR17X10132 | Cover Filter |
|
- | |||||
| 790 | FXRC | Canister Water Filter |
|
$ 95.29 | |||||
| 791 | WR02X10173 | Filter Plug Asm |
|
- | |||||
| 792 | WR17X10450 | Filter Head & Brkt Asm |
|
- | |||||
| 810 | WR17X10507 | Water Tank Disp Asm |
|
- | |||||
| 812 | WG03F00482 | Tube Plastic (Replaces: WR17X2891) |
|
Immediately | $ 35.73 |
