SELECT A DIAGRAM

1 - Freezer Door

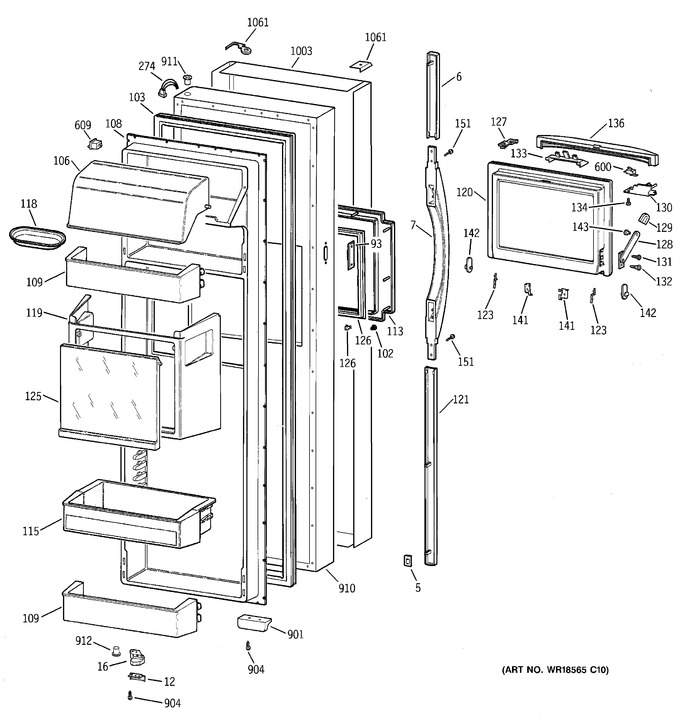

2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Unit Parts


8 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR02X10432		Dart Clip		Appelez-nous	-
6	WR12X10151		Tail Handle Sxs Bk		Appelez-nous	-
7	WR12X10132		Handle Sxs Asm Bk		Appelez-nous	-
12	WR02X10028		Stop Door Bk		Appelez-nous	-
16	WR2X9246		Cam Closure Bk Ff		Appelez-nous	-
93	WR23X10021		Sensor Door Asm Ff Bk		Appelez-nous	-
102	WR2X8162		Fastener Tubular		Appelez-nous	-
103	WR24X562		Gasket Door Ff Bk		Appelez-nous	-
106	WR22X524		Door Dairy Clear		Appelez-nous	-
108	WR77X10002		Door Inner Ff Cmk		Appelez-nous	-
109	WR71X10204		Module & Trim Asm		Appelez-nous	-
113	WR38X10125		Trim Cmk Door Bk		Appelez-nous	-
115	WR71X10205		Bin & Label Asm		Appelez-nous	-
118	WR19X37		Dish Butter Glass		Appelez-nous	-
119	WR17X10051		Cover Access Cmk		Appelez-nous	-
120	WR17X10265		Door Foam Asm Cmk Bk		Appelez-nous	-
121	WR12X10192		Tail Handle Sxs Bk		Appelez-nous	-
123	WR02X10039		Spring Leaf Rh		Appelez-nous	-
123	WR02X10038		Spring Leaf Lh		Appelez-nous	-
125	WR17X10052		Door Access Cover		Appelez-nous	-
126	WR24X10002		Gasket Cmk Door		Appelez-nous	-
126	WR02X10040		Fastener Rectangular		Appelez-nous	-
127	WR02X10034		Latch Cmk Frame		Appelez-nous	-
128	WR13X10005		Hinge Arm Asm Cmk		Appelez-nous	-
129	WR02X10035		Cap Hinge Arm		Appelez-nous	-
130	WR02X10032		Bracket Switch Cmk		Appelez-nous	-
131	WR1X1707		Screw		Appelez-nous	-
132	WR02X10037		Stop Hinge Arm		Appelez-nous	-
133	WR02X10033		Trigger Cmk Door		Appelez-nous	-
134	WR01X10019		Scr 6-10 Pl Flp 1/2 S		Appelez-nous	-
136	WR17X10266		Handle Cmk Door Bk		Appelez-nous	-
141	WR01X10017		Bracket Retainer Lh		Appelez-nous	-
141	WR01X10018		Bracket Retainer Rh		Appelez-nous	-
142	WR02X10045		Bushing Cmk Door Bk		Appelez-nous	-
143	WR02X10041		Stud Hinge Arm		Appelez-nous	-
151	WR1X1554		Screw 8-18 Ab Ihw 9/16 S		Appelez-nous	-
274	WR23X10038		Harness Ff Lt Sw		Appelez-nous	-
600	WR23X10027		Micro Switch		Appelez-nous	-
609	WR23X426		Switch Light Ff		Appelez-nous	-
901	WR10X126		Strike Magnet Asm Bk		Appelez-nous	-
904	WR1X2134		Scr 10-32 Pnt 1.0 S Lw		Appelez-nous	-
910	WR78X10173		Door Foam Asm Ff Bk		Appelez-nous	-
911	WR1X2041		Thimble Door Top Bk		Appelez-nous	-
912	WR1X2132		Thimble Door Btm Ff Bk		Appelez-nous	-
1003	WR99X10007		Door Outer Ff Clad Ss		Appelez-nous	-
1061	WR02X10131		Cap Corner Mullion Ff		Appelez-nous	-
1061	WR02X10129		Cap Corner Hinge Ff		Appelez-nous	-
