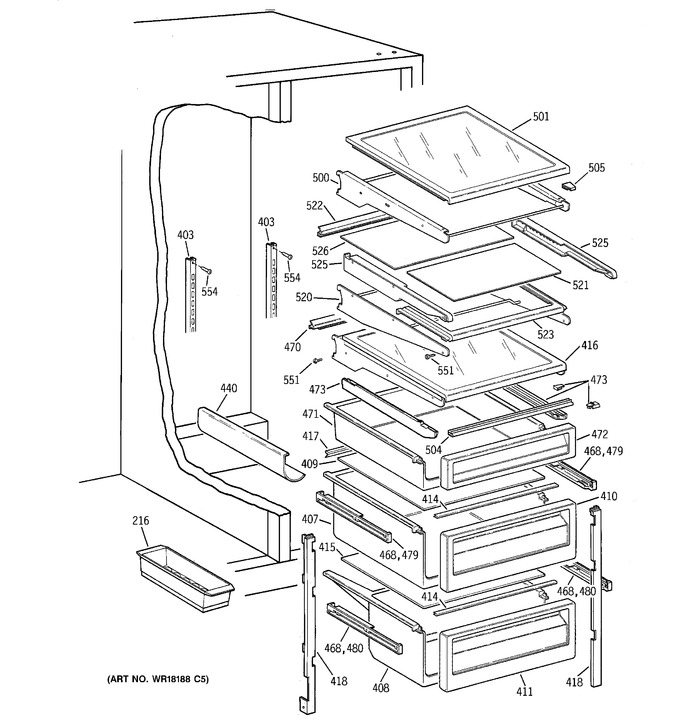

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 216 | WR32X1435 | Bucket Egg |
|
- | |||||
| 403 | WR72X249 | Track Cant Shelf |
|
- | |||||
| 407 | WR32X1461 | Pan Veg Clear Upper |
|
- | |||||
| 408 | WR32X1459 | Pan Meat Clear Lower |
|
- | |||||
| 409 | WR32X1456 | Cover Pan Glass |
|
- | |||||
| 410 | WR17X4083 | Frame Asm Pan |
|
- | |||||
| 411 | WR17X4081 | Frame Asm Pan |
|
- | |||||
| 414 | WR14X431 | Gasket Pan Cover Frt |
|
- | |||||
| 415 | WR32X1457 | Cover Pan Glass |
|
- | |||||
| 416 | WR32X1572 | Shelf Cant Sp Cvr |
|
- | |||||
| 417 | WR14X466 | Gasket Shield Lower |
|
- | |||||
| 418 | WR17X4085 | Trim Pan Lh |
|
- | |||||
| 418 | WR17X4086 | Trim Pan Rh |
|
- | |||||
| 440 | WR17X4094 | Wine Rack Pack Asm |
|
- | |||||
| 470 | WR14X465 | Gasket Pan Cvr Rear |
|
- | |||||
| 471 | WR32X1460 | Pan Snack Clear |
|
- | |||||
| 472 | WR17X4082 | Frame Asm Pan |
|
- | |||||
| 473 | WR1X2049 | Bearing Slide Rh |
|
- | |||||
| 473 | WR72X283 | Slide Snack Rh |
|
- | |||||
| 473 | WR72X282 | Slide Snack Lh |
|
- | |||||
| 473 | WR1X2048 | Bearing Slide Lh |
|
- | |||||
| 479 | WR01F03334 | Slide Asm Lh (Replaces: WR72X239) |
|
$ 100.56 | |||||
| 479 | WR01F03335 | Slide Asm Rh (Replaces: WR72X240) |
|
$ 78.51 | |||||
| 480 | WG03F00961 | Slide Asm Lh (Replaces: WR72X241) |
|
$ 95.65 | |||||
| 480 | WG03F00962 | Slide Asm Rh (Replaces: WR72X242) |
|
$ 81.27 | |||||
| 500 | WR71X2559 | Shelf Cant Spillprf |
|
- | |||||
| 501 | WR32X1561 | Shelf Encap Slideout |
|
- | |||||
| 504 | WR14X474 | Gasket Pan Cover Frt |
|
- | |||||
| 505 | WR1X2080 | Stop Shelf |
|
- | |||||
| 520 | WR71X2246 | Shelf Cant Tuckaway |
|
- | |||||
| 521 | WR32X1503 | Shelf Glass Tuckaway |
|
- | |||||
| 522 | WR38X2240 | Reflector Tuckaway |
|
- | |||||
| 523 | WR71X2494 | Shelf Frame Tuckaway |
|
- | |||||
| 525 | WR72X219 | Slide Tuckaway Lh |
|
- | |||||
| 525 | WR72X218 | Slide Tuckaway Rh |
|
- | |||||
| 526 | WR32X1268 | Shelf Glss Tuckaway Rear |
|
- | |||||
| 551 | WZ04X0244 | Scr 8-18 Ab Rndw 5/8 Ss |
|
- | |||||
| 554 | WR1X2141 | Scr 10-24 Tr Hxw I S |
|
- |
