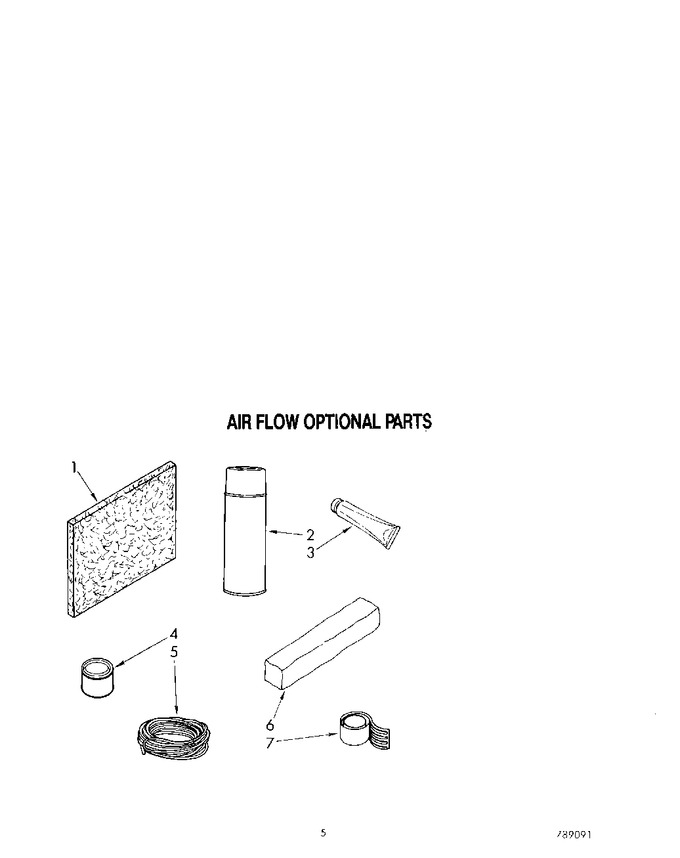

05 - Air Flow Optional
06 - Cabinet, Lit/optional
07 - Accessory Kit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 1 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 1 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 1 | 242826 | Wire, 25`` Roll (white 14 Ga.) |
|
- | |||||
| 1 | 47261 | Wire, 25`` Roll (black 12 Ga.) |
|
- | |||||
| 1 | 299885 | Wire, 25` Roll (red 12 Ga.) |
|
- | |||||
| 1 | 47263 | Wire, 25`` Roll (white 12 Ga.) |
|
- | |||||
| 2 | 813684 | Adhesive, Insulation (24 Oz. Spray) |
|
- | |||||
| 3 | WP279368 | Adhesive, Insulation (2oz Tube) (Replaces: 279368) |
|
Immediately | $ 104.81 | ||||
| 4 | 485426 | Paint, Touch-up Starlight Gray 1/2 Pint (lacquer) |
|
- | |||||
| 5 | 4318168 | Sealer, Permagum 1 Lb. Bar (Replaces: 99344) |
|
Immediately | $ 74.82 | ||||
| 6 | 212643 | Sealer, Permagum 4 - 1` Strip |
|
Immediately | $ 86.78 | ||||
| 7 | 649939 | Insulation, Cabinet (top) |
|
- | |||||
| 7 | 469938 | Insulation, Cabinet (side (2)) |
|
- | |||||
| 7 | 484069 | Cover, Winter |
|
$ 62.49 | |||||
| 7 | 813610 | Cord, Retainer (winter, Cover) |
|
$ 5.71 |
