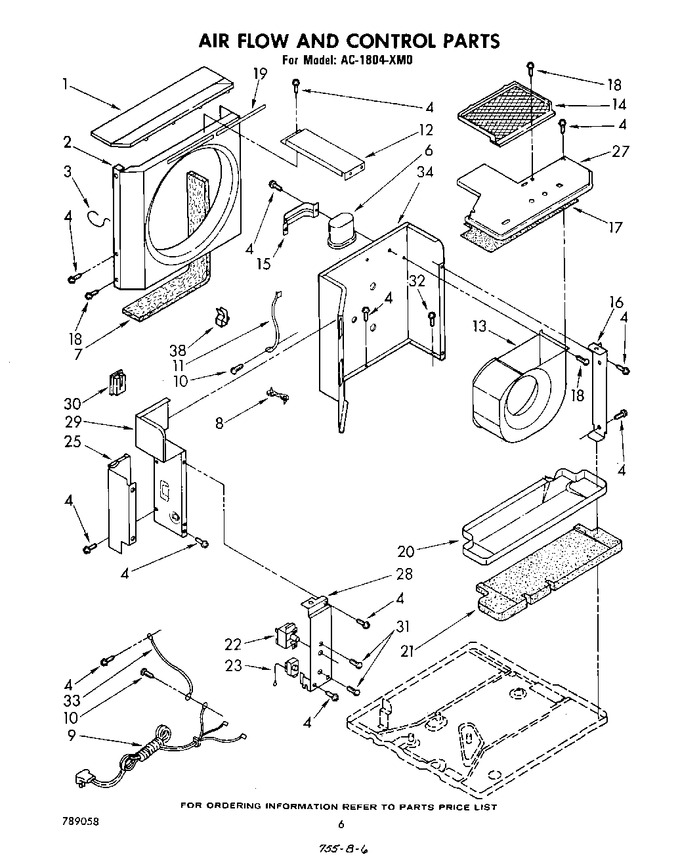

04 - Airflow And Control , Lit/optional


05 - Accessory Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	997264		Cover, Condenser Shroud		Appelez-nous	-
2	997224		Shroud, Condenser		Appelez-nous	-
3	477442		Clip, Shroud (2)		Appelez-nous	-
4	WP308685		Screw, Sm No.10 X 1/2   (Replaces: 488861)			Immediately	$ 7.08
4	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
6	950629		Capacitor, Running		Appelez-nous	-
7	948600		Seal, Condenser Fin		Appelez-nous	-
8	648791		Clamp, Cable		Appelez-nous	-
9	649125		Cable, Appliance		Appelez-nous	-
10	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
11	998177		Wire, Ground		Appelez-nous	-
12	997262		Support, Unit		Appelez-nous	-
13	997220		Housing, Blower Wheel		Appelez-nous	-
14	856506		Guard, Evaporator Impeller		Appelez-nous	-
15	950093		Bracket, Capacitor		Appelez-nous	-
16	997239		Adapter, Evaporator Header Plate		Appelez-nous	-
17	948236		Insulation, Evaporator Cover		Appelez-nous	-
18	WP488729		Screw, Sm No.8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
19	997266		Seal, Side Condenser		Appelez-nous	-
19	WP854334		Rear   (Replaces: 997267)				$ 12.55
20	997238		Pan, Condensate		Appelez-nous	-
21	997237		Insulation, Pan		Appelez-nous	-
22	950524		Switch, Rotary		Appelez-nous	-
23	949297		Control, Temperature		Appelez-nous	-
25	997278		Cover, Control Access		Appelez-nous	-
27	997269		Cover, Evaporator		Appelez-nous	-
28	852219		Panel, Control		Appelez-nous	-
29	997342		Extension, Dividing Wall		Appelez-nous	-
30	948520		Seal, Tube		Appelez-nous	-
31	488734		Screw, 6-32 X .175		Appelez-nous	-
32	488624		Screw, Sm No.8 X 3/8		Appelez-nous	-
33	997388		Ground Wire		Appelez-nous	-
34	997393		Wall, Dividing (requires Insulation No. 469938)		Appelez-nous	-
38	950692		Guide, Energy		Appelez-nous	-
38	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
38	484069		Cover, Winter				$ 62.49
38	950688		Sheet, Service Tech (service Information)		Appelez-nous	-
38	950693		Guide, Consumer Buy		Appelez-nous	-
38	950354		Guide, Use & Care		Appelez-nous	-
38	789058		List, Repair Parts		Appelez-nous	-
38	947072		Clamp, Cable (2)		Appelez-nous	-
38	212643		Sealer, Gum (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
38	854937		Insulation, Cabinet (rigth Side)		Appelez-nous	-
38	854938		Insulation, Cabinet (left Side)		Appelez-nous	-
38	855438		Insulation, Cabinet (top)		Appelez-nous	-
38	997236		Insulation, Base		Appelez-nous	-
38	WP279368		Adhesive, To Attach Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
38	47261		Wire, Black (25 Ft.)		Appelez-nous	-
38	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
38	47263		Wire, White (25 Ft.)		Appelez-nous	-
38	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
