02 - Unit, Lit/optional
03 - Air Flow And Control
04 - Cabinet
05 - Accessory
06 - Optional
SELECT A DIAGRAM
New Model Search:

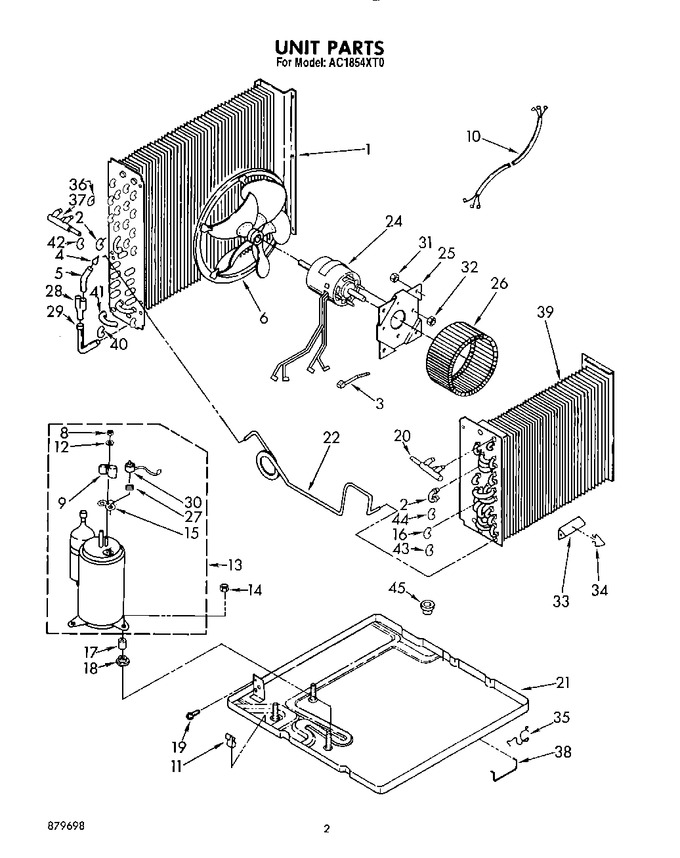

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1156327 | Condenser |
|
- | |||||
| 2 | 855199 | Bend, Return (8) |
|
- | |||||
| 3 | WPW10339879 | Tie, Cable (8) (Replaces: 612805) |
|
$ 7.47 | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 1155598 | Tube & Strainer (includes Illus. 4) |
|
- | |||||
| 6 | 1158987 | Blade, Fan |
|
- | |||||
| 8 | WP950027 | Nut, Cover (Replaces: 950027) |
|
$ 5.20 | |||||
| 9 | WP950036 | Cover, Terminal (Replaces: 950036) |
|
$ 9.83 | |||||
| 10 | 484136 | Harness, Wiring |
|
- | |||||
| 11 | 642684 | Clamp, Tube (2) |
|
- | |||||
| 12 | 950037 | Washer, Cover |
|
- | |||||
| 13 | 819230 | Compressor |
|
- | |||||
| 14 | 858121 | Locknut (4) |
|
- | |||||
| 15 | WP950035 | Gasket, Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 16 | 997669 | Bend, Return (11) |
|
- | |||||
| 17 | 950020 | Sleeve (4) |
|
- | |||||
| 18 | WP950021 | Grommet (4) (Replaces: 950021) |
|
$ 78.99 | |||||
| 19 | WP488729 | Screw, S.m. No. 8 X 1/2 (Replaces: 487910) |
|
Immediately | $ 7.45 | ||||
| 20 | 1155510 | Tube, Maniflod Header |
|
- | |||||
| 21 | 950364 | Base |
|
- | |||||
| 22 | 1156440 | Tube, Restrictor (length 46.0``) |
|
$ 6,949.23 | |||||
| 24 | 952072 | Motor, Fan |
|
- | |||||
| 25 | 998024 | Plate, Mounting |
|
- | |||||
| 26 | 1158443 | Wheel, Blower |
|
- | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | 947364 | Tube, Flow Divider |
|
- | |||||
| 29 | 1155580 | Tube, 90~ Connect |
|
- | |||||
| 30 | WP1161170 | Overload (Replaces: 1155605) |
|
$ 84.72 | |||||
| 31 | 858122 | Locknut |
|
- | |||||
| 32 | WP488130 | Nut, 8-32 (Replaces: 488130) |
|
$ 6.59 | |||||
| 33 | 996773 | Anticipator |
|
- | |||||
| 34 | 475577 | Clip |
|
- | |||||
| 35 | 852272 | Clip, Front Mtg (2) |
|
- | |||||
| 36 | 708532 | Bend, Retrun (12) |
|
- | |||||
| 37 | 1156330 | Tube, Maniflod |
|
- | |||||
| 38 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 39 | 1156493 | Evaporator |
|
- | |||||
| 40 | 708531 | Bend, Return (7) |
|
- | |||||
| 41 | 1156107 | Bend, Return |
|
- | |||||
| 42 | 1156329 | Bend Return (2) |
|
- | |||||
| 43 | 1156529 | Bend, Return |
|
- | |||||
| 44 | 1156531 | Tube Riser |
|
- | |||||
| 45 | 948130 | Bushing, Base To Condenser |
|
- | |||||
| LIT1159154 | Guide, Energy |
|
- | ||||||
| LIT879698 | List, Repair Parts |
|
- | ||||||
| LIT950355 | Guide, Use And Care |
|
- | ||||||
| LIT1156476 | Sheet, Tech And Wiring Diagram |
|
- |
