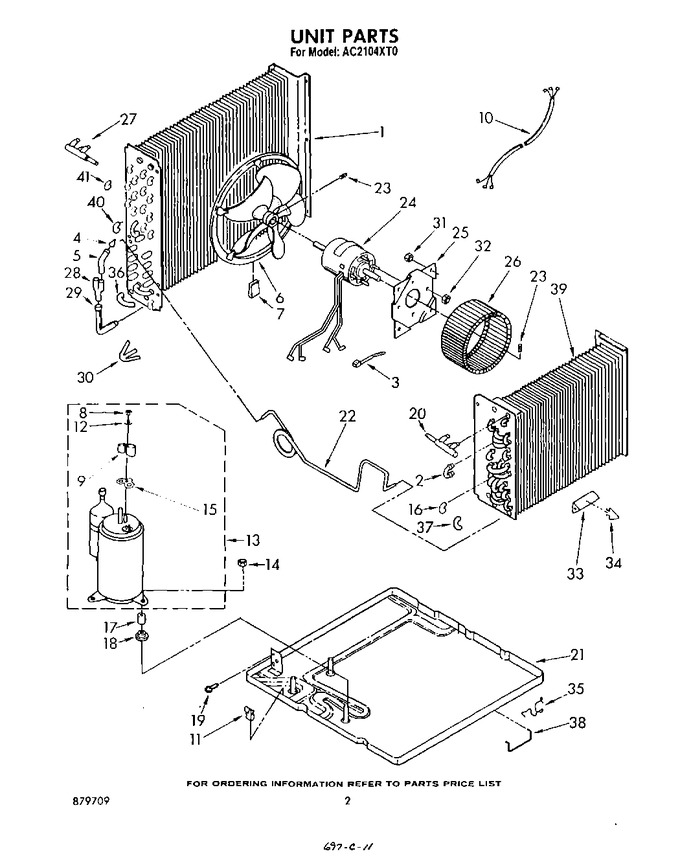

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1155492		Condenser		Appelez-nous	-
2	855199		Bend, Return Evaporator (7)		Appelez-nous	-
3	WPW10339879		Tie, Cable   (Replaces: 612805)				$ 7.47
4	49599		Strainer		Appelez-nous	-
5	484230		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	997226		Blade, Fan		Appelez-nous	-
7	876034		Clip, Balancing		Appelez-nous	-
8	WP950027		Nut, Cover   (Replaces: 950027)				$ 5.20
9	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
10	484136		Harness, Wiring		Appelez-nous	-
11	642684		Clamp, Tube (2)		Appelez-nous	-
12	950037		Washer, Cover		Appelez-nous	-
13	819492		Compressor		Appelez-nous	-
14	858121		Locknut (4)		Appelez-nous	-
15	WP950035		Gasket, Cover   (Replaces: 950035)				$ 78.01
16	997669		Bend, Return Evaporator (16)		Appelez-nous	-
17	950020		Sleeve (4)		Appelez-nous	-
18	WP950021		Grommet (4)   (Replaces: 950021)				$ 78.99
19	WP488729		Screw, S.m. No. 8 X 1/2   (Replaces: 487910)			Immediately	$ 7.45
20	1155510		Tube, Maniflod Header		Appelez-nous	-
21	950364		Base		Appelez-nous	-
22	1156254		Tube, Restrictir (length 55.0``)		Appelez-nous	-
23	595085		Screw, Set 5/16 X 1/4		Appelez-nous	-
24	952072		Motor, Fan		Appelez-nous	-
25	998024		Plate, Mounting		Appelez-nous	-
26	647618		Wheel, Blower		Appelez-nous	-
27	1155511		Tube, Manifold		Appelez-nous	-
28	947364		Tube, Flow Divider		Appelez-nous	-
29	1155580		Tube, 90~ Connect		Appelez-nous	-
30	1156107		Bend, Return (3-way)		Appelez-nous	-
31	858122		Locknut		Appelez-nous	-
32	WP488130		Nut, 8-32   (Replaces: 488130)				$ 6.59
33	996773		Anticipator		Appelez-nous	-
34	949564		Clip		Appelez-nous	-
35	852272		Clip, Front Mtg (2)		Appelez-nous	-
36	1155512		Tube, Crossover		Appelez-nous	-
37	998683		Bend, Return (2)		Appelez-nous	-
38	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
39	1155435		Evaporator (includes No.20)		Appelez-nous	-
40	708531		Bend Return (4)		Appelez-nous	-
41	LIT879709		Literature Parts (list, Repair Parts)		Appelez-nous	-
41	708532		Bend Return (25)		Appelez-nous	-
41	LIT1156198		Sheet, Tech And Wiring Diagram		Appelez-nous	-
41	LIT1156362		Guide, Energy		Appelez-nous	-
41	LIT950355		Literature Parts (guide, Use And Care)		Appelez-nous	-
