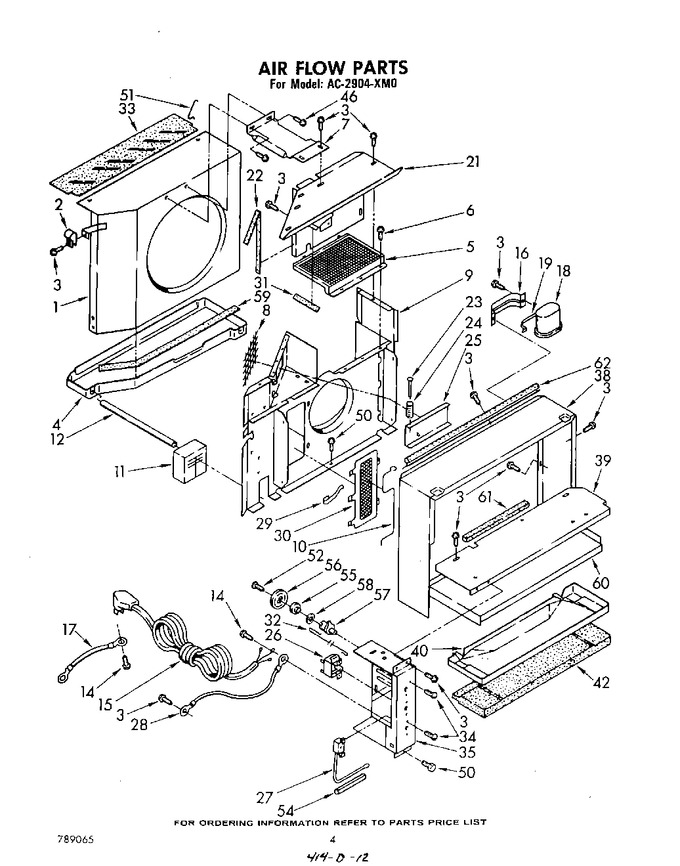

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 475716 | Xshroud, Condenser |
|
- | |||||
| 2 | 43996 | Clamp |
|
- | |||||
| 3 | WP308685 | Screw, Repair (Replaces: 488861) |
|
Immediately | $ 7.08 | ||||
| 3 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 4 | 475709 | Pan, Condenser (includes Illus. 59) |
|
- | |||||
| 5 | 856507 | Guard, Evaporator Impeller |
|
- | |||||
| 6 | WP488729 | Screw, 8 X 1/2 (2) (Replaces: 487910) |
|
Immediately | $ 7.45 | ||||
| 7 | 475742 | Support, Unit |
|
- | |||||
| 8 | 470986 | Screen |
|
- | |||||
| 9 | 998313 | Wall, Dividing |
|
- | |||||
| 10 | 648138 | Actuator, Fresh Air Door |
|
- | |||||
| 11 | 856916 | Seal, Tube |
|
- | |||||
| 12 | 475710 | Tube, Left |
|
- | |||||
| 12 | 477542 | Tube, Right |
|
- | |||||
| 14 | WPW10141604 | Screw, 8-32 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 15 | 644176 | Cable, Appliance |
|
- | |||||
| 16 | 997218 | Bracket |
|
- | |||||
| 17 | 998010 | Ground Wire |
|
- | |||||
| 18 | 998595 | Capacitor, Running |
|
- | |||||
| 19 | 997215 | Bracket |
|
- | |||||
| 21 | 998324 | Plate, Back |
|
- | |||||
| 22 | 475741 | Seal, Top (l.s.) |
|
- | |||||
| 22 | 475740 | Seal, Lower (r.s.) |
|
- | |||||
| 23 | 471108 | Pin |
|
- | |||||
| 24 | 471109 | Spring |
|
- | |||||
| 25 | 473781 | Door, Exhaust |
|
- | |||||
| 26 | 950520 | Switch, Rotary |
|
- | |||||
| 27 | 649422 | Control, Temperature |
|
- | |||||
| 28 | 856509 | Wire, Ground |
|
- | |||||
| 29 | 649428 | Spring, Fresh Air & Exhaust Door |
|
- | |||||
| 30 | 648137 | Door, Fresh Air |
|
- | |||||
| 31 | WP854334 | Seal, Cut-off Flange (Replaces: 854528) |
|
$ 12.55 | |||||
| 32 | 648321 | Wire, Exhaust Control |
|
- | |||||
| 32 | 648322 | Wire, Fresh Air Control |
|
- | |||||
| 33 | 855213 | Insulation, Condenser Shroud |
|
- | |||||
| 34 | 488734 | Screw, 6-32 X .175 |
|
- | |||||
| 35 | 950551 | Box, Control |
|
- | |||||
| 38 | 475730 | Cover, Air Duct |
|
- | |||||
| 39 | 648319 | Cover, Evaporator |
|
- | |||||
| 40 | 475708 | Pan, Evaporator |
|
- | |||||
| 42 | 856917 | Insulation |
|
- | |||||
| 46 | 488624 | Screw, 8 X 3/8 |
|
- | |||||
| 50 | WP965173 | Screw, 8 X 3/8 (6) (Replaces: 487415) |
|
Immediately | $ 10.68 | ||||
| 51 | 477442 | Clip, Shroud (2) |
|
- | |||||
| 52 | 489092 | Screw, 7-18 X 5/8 |
|
- | |||||
| 54 | 475841 | Sleeve |
|
- | |||||
| 55 | 647879 | Bushing, Fresh Air & Exhaust |
|
- | |||||
| 56 | 648131 | Cam, Fresh Air & Exhaust |
|
- | |||||
| 57 | 648130 | Shaft & Exhaust |
|
- | |||||
| 58 | 00647881 | Washer, Spring (Replaces: 647881) |
|
$ 366.51 | |||||
| 59 | 476089 | Seal (2) |
|
- | |||||
| 60 | 475711 | Cover (includes Illus. 61) |
|
- | |||||
| 61 | 476099 | Strip, Seal (2) |
|
- | |||||
| 62 | 789065 | List, Repair Parts |
|
- | |||||
| 62 | 950355 | Guide, Use & Care |
|
- | |||||
| 62 | 951026 | Sheet, Service Tech (service Information) |
|
- | |||||
| 62 | 951028 | Guide, Energy |
|
- | |||||
| 62 | 475733 | Seal, Cabinet Top |
|
- | |||||
| 62 | 212643 | Sealer For Cabinets & Windows (gum Type) (Replaces: 470168) |
|
Immediately | $ 86.78 | ||||
| 62 | 469938 | Insulation, Fiberglass (1/4`` X 24`` X 48``) |
|
- | |||||
| 62 | 649939 | Insulation, Cabinet (5/8`` X 25-11/16`` X 13``) |
|
- | |||||
| 62 | WP279368 | Cement, Attach Insulation) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 62 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 62 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 62 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 62 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 62 | 47263 | Wire, White (25 Ft.) |
|
- | |||||
| 62 | 484066 | Cover, Winter |
|
$ 86.51 | |||||
| 62 | 950804 | Guide, Consumer Buy |
|
- |
