SELECT A DIAGRAM

02 - Unit


03 - Airflow And Control


04 - Cabinet, Lit/optional


05 - Installation


06 - Optional

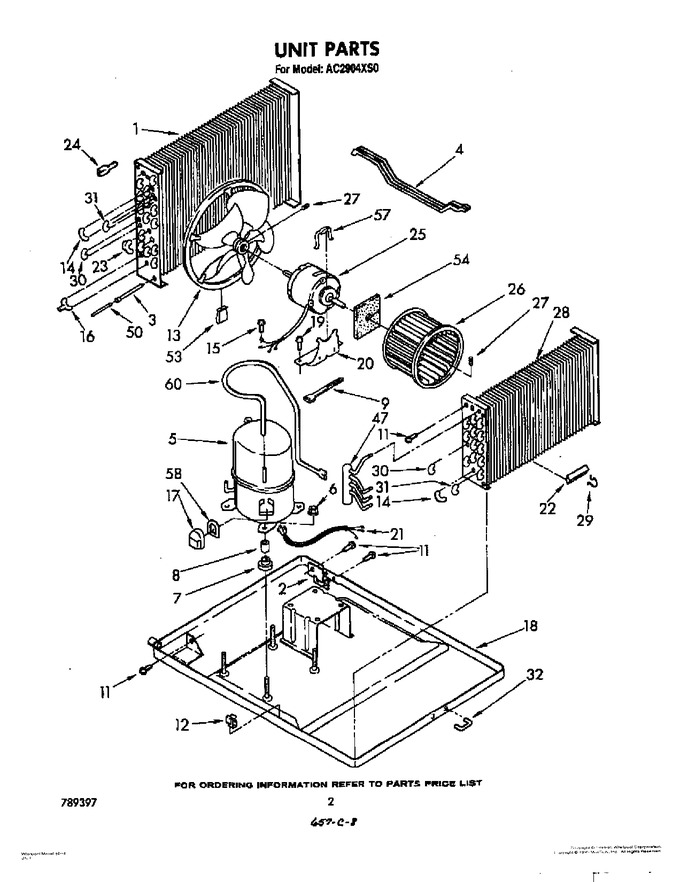

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1159260		Condenser		Appelez-nous	-
2	856028		Support, Condenser (r01.)		Appelez-nous	-
4	1158318		Tube, Restrictor (4)		Appelez-nous	-
5	1159644		Compressor		Appelez-nous	-
6	858121		Locknut (4)		Appelez-nous	-
7	475041		Grommet (4)		Appelez-nous	-
8	858116		Sleeve (4)		Appelez-nous	-
9	WPW10339879		Tie, Cable (8)   (Replaces: 612805)				$ 7.47
10	1159302		Strainer, Tube		Appelez-nous	-
11	WP489069		Screw   (Replaces: 488480)			Immediately	$ 7.56
12	471088		Clamp (2)		Appelez-nous	-
13	477616		Blade, Fan		Appelez-nous	-
14	855644		Bend, Return Condenser (1) Evaporator (2)		Appelez-nous	-
15	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
17	1159290		Cover, Terminal		Appelez-nous	-
18	856498		Base, Unit		Appelez-nous	-
19	488311		Screw, 1/4 X 5/8 (4)		Appelez-nous	-
20	471719		Cradle, Motor (2)		Appelez-nous	-
21	484136		Harness, Wiring (compressor Service)		Appelez-nous	-
22	472046		Anticipator		Appelez-nous	-
23	953169		Bend, Return (3-way)		Appelez-nous	-
25	948544		Motor, Fan		Appelez-nous	-
26	855934		Wheel, Blower		Appelez-nous	-
28	952685		Evaporator		Appelez-nous	-
29	472047		Clip (2)		Appelez-nous	-
30	855199		Bend, Return Condenser (32 Evaporator (12)		Appelez-nous	-
31	854624		Bend, Return Condenser (5 Evaporator (18)		Appelez-nous	-
32	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
34	476719		Seal, Shaft		Appelez-nous	-
35	WPY015825		Clip, Motor (2)   (Replaces: 49633)				$ 22.65
36	1159291		Gasket, Terminal Cover		Appelez-nous	-
37	1159326		Tube, Suction		Appelez-nous	-
38	952691		Tube, Manifold (evaporator)		Appelez-nous	-
39	1159264		Tube, Discharge		Appelez-nous	-
