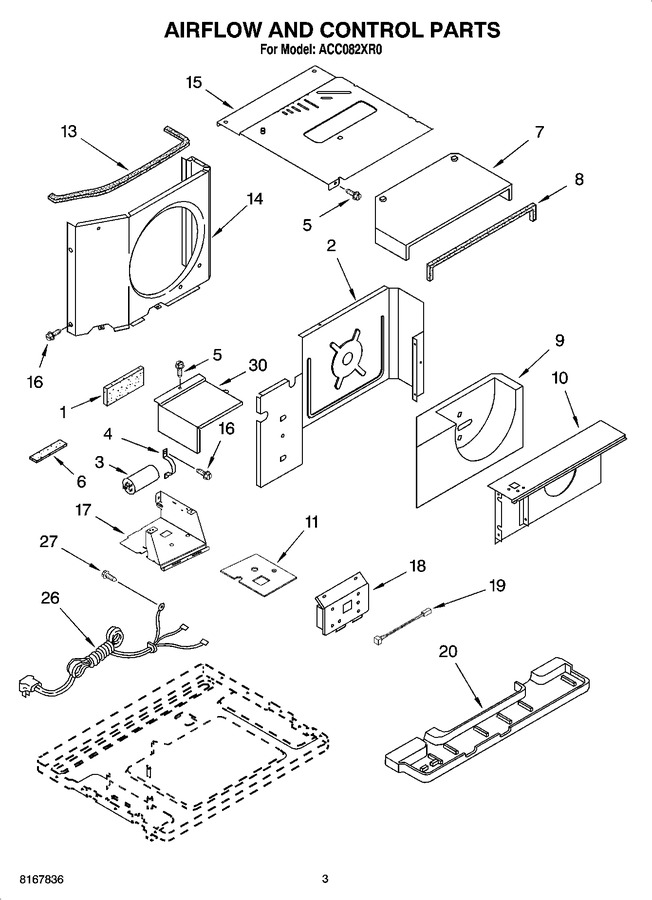

SELECT A DIAGRAM

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1187084		Seal, Anti-rub		Appelez-nous	-
2	8031104		Wall, Dividing		Appelez-nous	-
3	1187482		Capacitor, Running		Appelez-nous	-
4	1167611		Bracket, Running Capacitor		Appelez-nous	-
5	WP3196557		Screw   (Replaces: 1168744)			Immediately	$ 7.16
6	1187047		Seal, Electronic Control Box		Appelez-nous	-
7	8031570		Hood, Air Housing		Appelez-nous	-
8	WP854334		Seal, Hood   (Replaces: 1180698)				$ 12.55
9	8031586		Housing, Air		Appelez-nous	-
10	1188388		Shroud, Evaporator		Appelez-nous	-
11	1188257		Seal, Control Box		Appelez-nous	-
13	8031312		Seal, Condenser Shroud		Appelez-nous	-
14	8031110		Shroud, Condenser		Appelez-nous	-
15	1186766		Cover, Unit		Appelez-nous	-
16	488624		Screw, 8-15 X .375		Appelez-nous	-
17	1187819		Box, Control		Appelez-nous	-
18	1187925		Control, Electronic		Appelez-nous	-
19	1188387		Thermistor		Appelez-nous	-
20	8031111		Pan, Drain		Appelez-nous	-
26	1187836		Cable, Appliance		Appelez-nous	-
27	1159222		Screw		Appelez-nous	-
30	1186666		Cover, Control Box		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
