SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Fresh Food Section

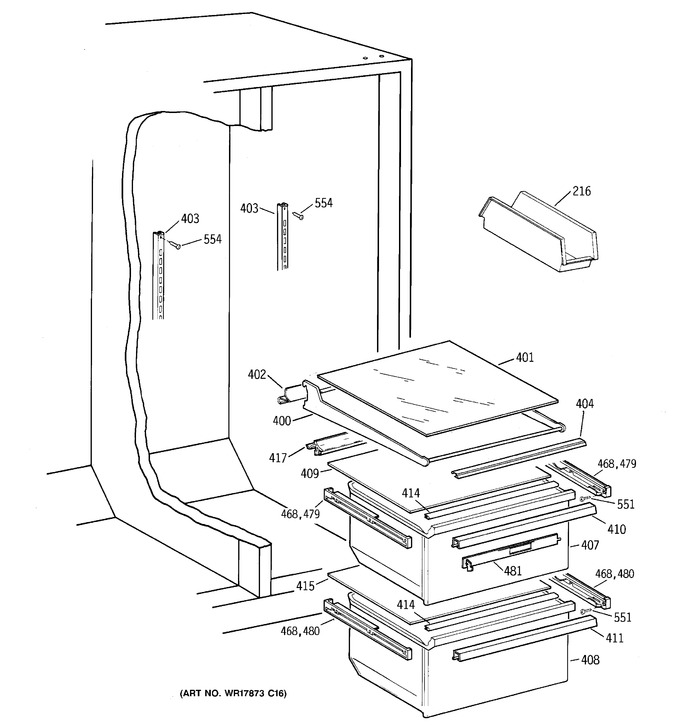

5 - Fresh Food Shelves


6 - Unit Parts


7 - Icemaker Wr30x0327


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
216	WR32X1575		Bucket Utility Clr		Appelez-nous	-
400	WR71X2292		Shelf Cant		Appelez-nous	-
401	WR32X1501		Shelf Cant Glass		Appelez-nous	-
402	WR38X2146		Reflector Glass Shelf		Appelez-nous	-
403	WR72X254		Track Cant Shelf		Appelez-nous	-
404	WR38X2150		Trim Shelf Glass		Appelez-nous	-
407	WR32X1492		Veg Pan Upper		Appelez-nous	-
408	WR32X1493		Veg Pan Lower		Appelez-nous	-
409	WR32X1500		Cover Pan Glass		Appelez-nous	-
410	WR17X3950		Handle Pan		Appelez-nous	-
411	WR17X3951		Handle Veg Pan		Appelez-nous	-
414	WR14X431		Gasket Pan Cover Frt		Appelez-nous	-
415	WR32X1473		Cover Pan Glass		Appelez-nous	-
417	WR14X10032		Gasket Shield Lower		Appelez-nous	-
468	WR1X2048		Bearing Slide Lh		Appelez-nous	-
479	WR01F03335		Slide Asm Rh   (Replaces: WR72X240)				$ 78.51
479	WR01F03334		Slide Asm Lh   (Replaces: WR72X239)				$ 100.56
480	WR72X253		Slide Asm Rh		Appelez-nous	-
480	WR72X252		Slide Asm Lh		Appelez-nous	-
481	WR1X2079		Slide Pan Front		Appelez-nous	-
551	WZ04X0244		Scr 8-18 Ab Rndw 5/8 Ss		Appelez-nous	-
554	WR1X2141		Scr 10-24 Tr Hxw I S		Appelez-nous	-
