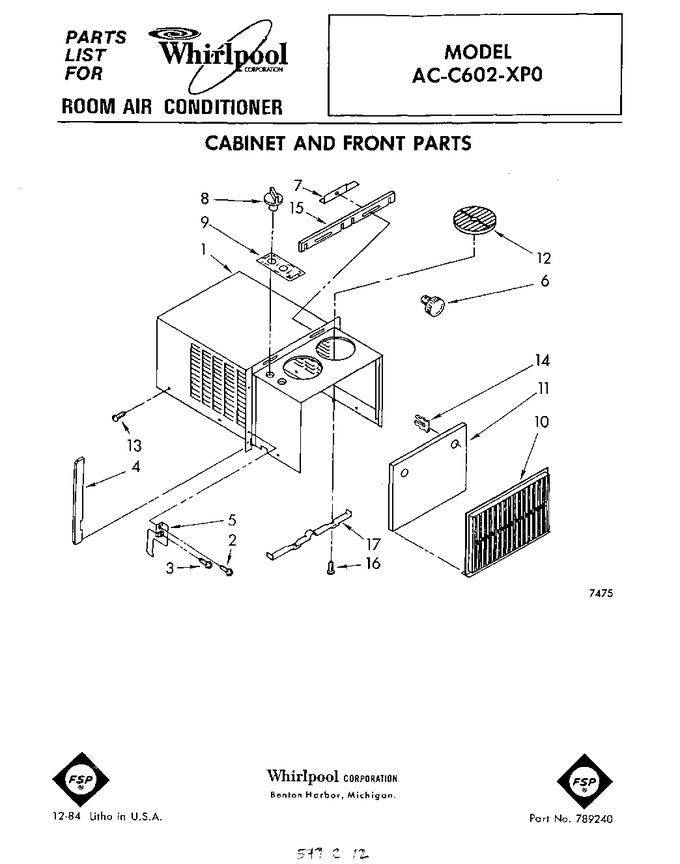

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 980714 | Cabinet |
|
- | |||||
| 2 | 487470 | Screw, No.10 X 3/8 (2) |
|
- | |||||
| 3 | 487336 | Screw, No.10 X 3/8 (2) |
|
- | |||||
| 4 | 798342 | Seal, L.h. Cabinet |
|
- | |||||
| 4 | 798341 | Seal, R.h. Cabinet |
|
- | |||||
| 5 | 798348 | Clip, Window L.h. |
|
- | |||||
| 5 | 798347 | Clip, Window R.h. |
|
- | |||||
| 6 | 832105 | Knob, Top Slide Adjustable (2) |
|
- | |||||
| 7 | 798350 | Slide, Top R.h. |
|
- | |||||
| 7 | 798349 | Slide, Top L.h. |
|
- | |||||
| 8 | 977949 | Knob, Control (2) |
|
- | |||||
| 9 | 980925 | Escutcheon, Control |
|
- | |||||
| 10 | 980926 | Frame, Front |
|
- | |||||
| 11 | 977866 | Filter, Air |
|
- | |||||
| 12 | 832104 | Wheel, Air Deflection (2) |
|
- | |||||
| 13 | WP965173 | Screw, No.8 X 3/8 (6) (Replaces: 487358) |
|
Immediately | $ 10.68 | ||||
| 14 | 977850 | Clip, Filter (2) |
|
- | |||||
| 15 | 798344 | Seal, Top Cabinet |
|
- | |||||
| 16 | 488331 | Screw, 6-20 X 3/8 (2) |
|
- | |||||
| 17 | 798315 | Retainer, Deflector |
|
- |
