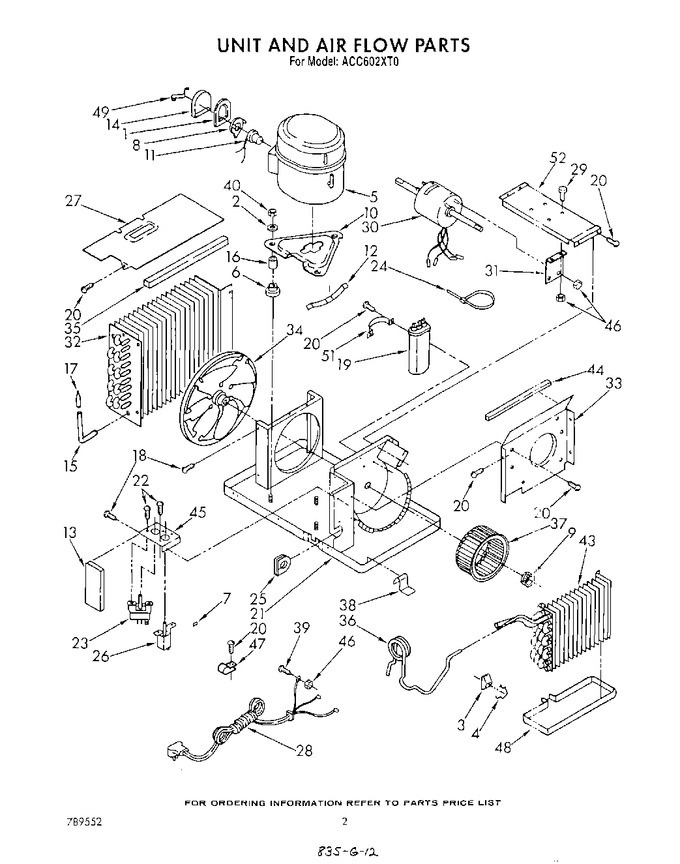

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 977833 | Gasket, Cover |
|
- | |||||
| 2 | WP486255 | Washer, 5/16 (3) (Replaces: 486529) |
|
$ 5.82 | |||||
| 3 | 832245 | Anticipator, Temperature |
|
- | |||||
| 4 | 832246 | Clip, Anticipator |
|
- | |||||
| 5 | 485595 | Compressor |
|
- | |||||
| 6 | 798392 | Grommet (3) |
|
$ 11.33 | |||||
| 7 | 977636 | Pad, Protector |
|
- | |||||
| 8 | 977832 | Spring, Overload |
|
- | |||||
| 9 | 977874 | Clip, Locking |
|
- | |||||
| 10 | 832187 | Base, Mounting |
|
- | |||||
| 11 | 980946 | Overload |
|
- | |||||
| 12 | 977440 | Spring, Mounting |
|
- | |||||
| 13 | 977692 | Seal, Strip |
|
- | |||||
| 14 | 977834 | Cover, Terminal |
|
- | |||||
| 15 | 484230 | Tube, Outlet (includes Item 17) |
|
- | |||||
| 16 | 798393 | Sleeve (3) |
|
- | |||||
| 17 | 49599 | Strainer |
|
- | |||||
| 18 | WP965173 | Screw, S.m. No.8 X 3/8 (Replaces: 487358) |
|
Immediately | $ 10.68 | ||||
| 19 | 980949 | Capacitor |
|
- | |||||
| 20 | WP488729 | Screw, S.m. No.8 X 1/2 (Replaces: 487895) |
|
Immediately | $ 7.45 | ||||
| 21 | 977972 | Base Assembly |
|
- | |||||
| 22 | 977838 | Screw, Mach 6-32 X 1/4 |
|
- | |||||
| 23 | 977944 | Switch, Rotary |
|
- | |||||
| 24 | 977378 | Tie, Motor Lead (2) |
|
- | |||||
| 25 | 465055 | Grommet, Tube |
|
- | |||||
| 26 | 977945 | Control, Temperature |
|
- | |||||
| 27 | 977942 | Cover, Shroud Condenser |
|
- | |||||
| 28 | 980713 | Cord, Power |
|
- | |||||
| 29 | WP999367 | Screw, 10-32 X 3/8 (Replaces: 977823) |
|
$ 7.70 | |||||
| 30 | 980710 | Motor, Fan |
|
- | |||||
| 31 | 977939 | Bracket, Motor |
|
- | |||||
| 32 | 980947 | Condenser |
|
- | |||||
| 33 | 977377 | Cover, Housing |
|
- | |||||
| 34 | 832003 | Fan, Slinger |
|
- | |||||
| 35 | 977943 | Seal, Strip |
|
- | |||||
| 36 | 789553 | Tube, Restrictor |
|
- | |||||
| 37 | 977861 | Wheel, Blower |
|
- | |||||
| 38 | 798307 | Clip, Front Mtg (2) |
|
- | |||||
| 39 | WP489128 | Screw, 6 X 7/8 (Replaces: 977726) |
|
$ 10.26 | |||||
| 40 | 977792 | Nut, 5/16-18 |
|
- | |||||
| 43 | 977936 | Evaporator |
|
- | |||||
| 44 | 798339 | Seal, Cabinet Bottom |
|
- | |||||
| 45 | 977966 | Plate, Switch |
|
- | |||||
| 46 | WP488130 | Nut, 8-32 (Replaces: 977776) |
|
$ 6.59 | |||||
| 47 | 977378 | Clamp, Cord |
|
- | |||||
| 48 | 977549 | Pan, Condensate |
|
- | |||||
| 49 | 977835 | Retainer, Cover |
|
- | |||||
| 51 | 980950 | Bracket, Capacitor |
|
- | |||||
| 52 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 52 | 977938 | Support, Motor |
|
- | |||||
| 52 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 52 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 52 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 52 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 52 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 52 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 52 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 52 | 469938 | Insulation, Fiberglass (1/4`` X 24`` X 48``) |
|
- | |||||
| 52 | WP279368 | Cement, Attach Insulation) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 52 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 52 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 52 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 52 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 52 | 47263 | Wire, White (25 Ft.) |
|
- | |||||
| 52 | 212643 | Sealer, Gum Type (cabinet & Windows) (Replaces: 470168) |
|
Immediately | $ 86.78 | ||||
| LIT789554 | Guide, Use & Care |
|
- | ||||||
| LIT789555 | Sheet, Service Tech (service Information) |
|
- | ||||||
| LIT789552 | List, Repair Parts |
|
- | ||||||
| LIT789556 | Guide, Energy |
|
- |
