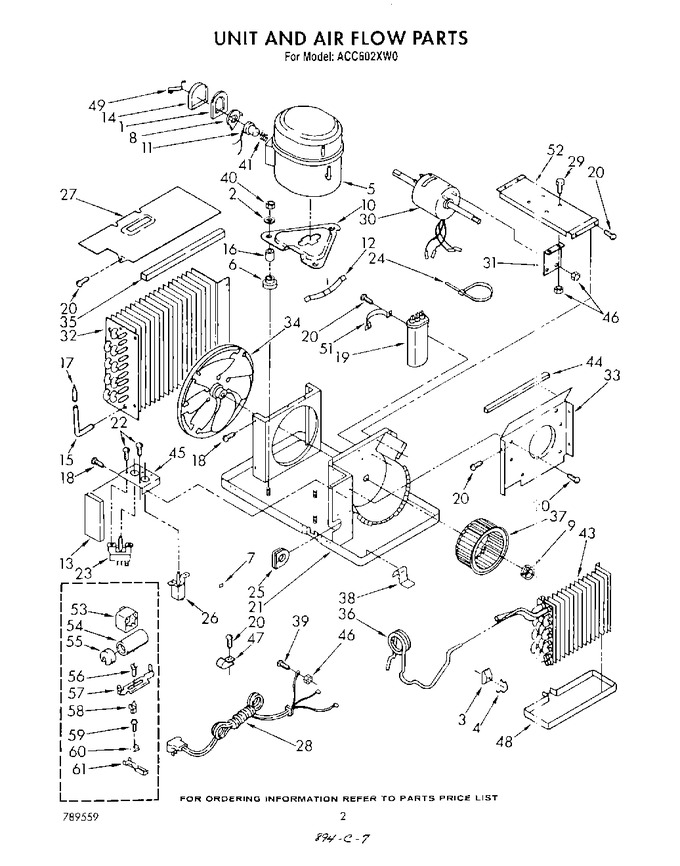

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	977833		Gasket, Cover		Appelez-nous	-
2	WP486255		Washer, 5/16 (3)   (Replaces: 486529)				$ 5.82
3	832245		Anticipator, Temperature		Appelez-nous	-
4	832246		Clip, Anticipator		Appelez-nous	-
5	485595		Compressor		Appelez-nous	-
6	798392		Grommet (3)				$ 11.33
7	977636		Pad, Protector		Appelez-nous	-
8	977832		Spring, Overload		Appelez-nous	-
9	977874		Clip, Locking		Appelez-nous	-
10	832187		Base, Mounting		Appelez-nous	-
11	980946		Overload		Appelez-nous	-
12	977440		Spring, Mounting		Appelez-nous	-
13	977692		Seal, Strip		Appelez-nous	-
14	977834		Cover, Terminal		Appelez-nous	-
15	484230		Tube, Outlet (includes Item 17)		Appelez-nous	-
16	798393		Sleeve (3)		Appelez-nous	-
17	49599		Strainer		Appelez-nous	-
18	WP965173		Screw, S.m. No.8 X 3/8   (Replaces: 487358)			Immediately	$ 10.68
19	789562		Capacitor		Appelez-nous	-
20	WP488729		Screw, S.m. No.8 X 1/2   (Replaces: 487895)			Immediately	$ 7.45
21	977972		Base Assembly		Appelez-nous	-
22	977838		Screw, Mach 6-32 X 1/4		Appelez-nous	-
23	977944		Switch, Rotary		Appelez-nous	-
24	977378		Tie, Motor Lead (2)		Appelez-nous	-
25	465055		Grommet, Tube		Appelez-nous	-
26	977945		Control, Temperature		Appelez-nous	-
27	977942		Cover, Shroud Condenser		Appelez-nous	-
28	980713		Cord, Power		Appelez-nous	-
29	WP999367		Screw, 10-32 X 3/8   (Replaces: 977823)				$ 7.70
30	980710		Motor, Fan		Appelez-nous	-
31	977939		Bracket, Motor		Appelez-nous	-
32	789560		Condenser		Appelez-nous	-
33	977377		Cover, Housing		Appelez-nous	-
34	832003		Fan, Slinger		Appelez-nous	-
35	977943		Seal, Strip		Appelez-nous	-
36	789561		Tube, Restrictor		Appelez-nous	-
37	977861		Wheel, Blower		Appelez-nous	-
38	798307		Clip, Front Mtg (2)		Appelez-nous	-
39	WP489128		Screw, 6 X 7/8   (Replaces: 977726)				$ 10.26
40	977792		Nut, 5/16-18		Appelez-nous	-
41	994171		Spring, Overload		Appelez-nous	-
43	789558		Evaporator		Appelez-nous	-
44	798339		Seal, Cabinet Bottom		Appelez-nous	-
45	977966		Plate, Switch		Appelez-nous	-
46	WP488130		Nut, 8-32   (Replaces: 977776)				$ 6.59
47	977378		Clamp, Cord		Appelez-nous	-
48	977549		Pan, Condensate		Appelez-nous	-
49	977835		Retainer, Cover		Appelez-nous	-
51	980950		Bracket, Capacitor		Appelez-nous	-
52	977938		Support, Motor		Appelez-nous	-
53	484177		Relay		Appelez-nous	-
54	467614		Capacitor		Appelez-nous	-
55	791869		Cap, Capacitor		Appelez-nous	-
56	487780		Screw		Appelez-nous	-
57	35564		Bracket, Capacitor				$ 472.30
58	90654		Multiplier, Terminal		Appelez-nous	-
59	WP965173		Screw, 8 X 3/8   (Replaces: 487869)			Immediately	$ 10.68
60	488660		Nut, Speed   (Replaces: 486197)		Appelez-nous	-
61	845884		Kit, Compressor Start		Appelez-nous	-
61	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
61	45571		Clip, Terminal		Appelez-nous	-
61	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
61	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
61	978026		Valve, Access (5/16``)			Immediately	$ 121.04
61	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
61	978028		Valve, Access (1/2)		Appelez-nous	-
61	978029		Valve Access (5/8``)				$ 93.85
61	978030		Valve, Access (3/4``)				$ 123.53
61	469938		Insulation, Fiberglass (1/4`` X 24`` X 48``)		Appelez-nous	-
61	WP279368		Cement, Attach Insulation)   (Replaces: 797403)			Immediately	$ 104.81
61	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
61	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
61	47261		Wire, Black (25 Ft.)		Appelez-nous	-
61	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
61	47263		Wire, White (25 Ft.)		Appelez-nous	-
61	212643		Sealer, Gum Type (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
61	484220		Start Assit Kit		Appelez-nous	-
	LIT789555		Sheet, Service Tech (service Information)		Appelez-nous	-
	LIT789559		List, Repair Parts		Appelez-nous	-
	LIT789556		Guide, Energy		Appelez-nous	-
	LIT789554		Guide, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
