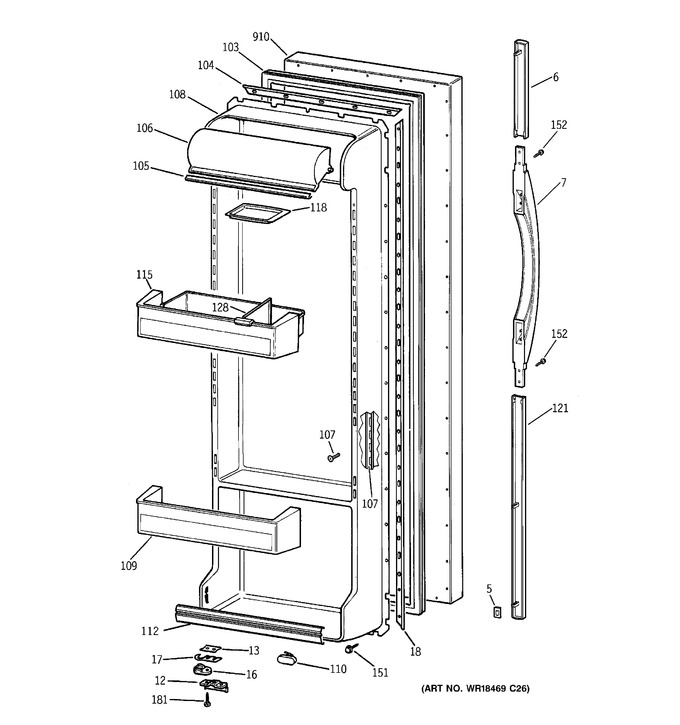

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Section


5 - Fresh Food Section


6 - Unit Parts


7 - Icemaker Wr30x0327


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR02X10431		Dart Clip		Appelez-nous	-
6	WR12X10162		Tail Handle Sxs Ad		Appelez-nous	-
7	WR12X10331		Handle Sxs Ad		Appelez-nous	-
12	WR2X9302		Stop Door Ad		Appelez-nous	-
13	WG03L01596		Shim Cam Door Stop   (Replaces: WR2X7490)				$ 12.40
16	WG03F00083		Hinge Cam Riser   (Replaces: WR02X10140)				$ 11.44
17	WR2X7491		Shim Riser Cam .031		Appelez-nous	-
17	WR2X9147		Shim Riser Cam .093		Appelez-nous	-
18	WR17X2092		Retainer Strip		Appelez-nous	-
103	WR24X526		Gasket Door Ff Wh		Appelez-nous	-
104	WR17X1168		Retainer Strip		Appelez-nous	-
105	WR38X2147		Trim Dairy Door		Appelez-nous	-
106	WR22X383		Door Dairy		Appelez-nous	-
107	WR72X10036		Track Door Inner		Appelez-nous	-
107	WR01X10163		Scr 8-18 Ab Trt15 5/8		Appelez-nous	-
108	WR77X10024		Door Inner Ff		Appelez-nous	-
109	WR71X10194		Shelf Door Removable Asm		Appelez-nous	-
110	WR2X8989		Support Twist Bumper		Appelez-nous	-
112	WR17X10433		Front Door Shelf		Appelez-nous	-
115	WR71X10193		Shelf Door Module Asm		Appelez-nous	-
118	WR19X5003		Butter Dish		Appelez-nous	-
121	WR12X10102		Tail Handle Sxs Ad		Appelez-nous	-
128	WR2X7971		Snugger Module		Appelez-nous	-
151	WR1X1554		Screw 8-18 Ab Ihw 9/16 S		Appelez-nous	-
152	WR01A01241		Scr 8-18 Ab Fltr 5/8 S   (Replaces: WR01X10038)				$ 3.57
181	WR01X10161		Scr 10-32 Gx Ihxw 13/16s		Appelez-nous	-
910	WR78X10200		Door Foam Asm Ff Ad		Appelez-nous	-
