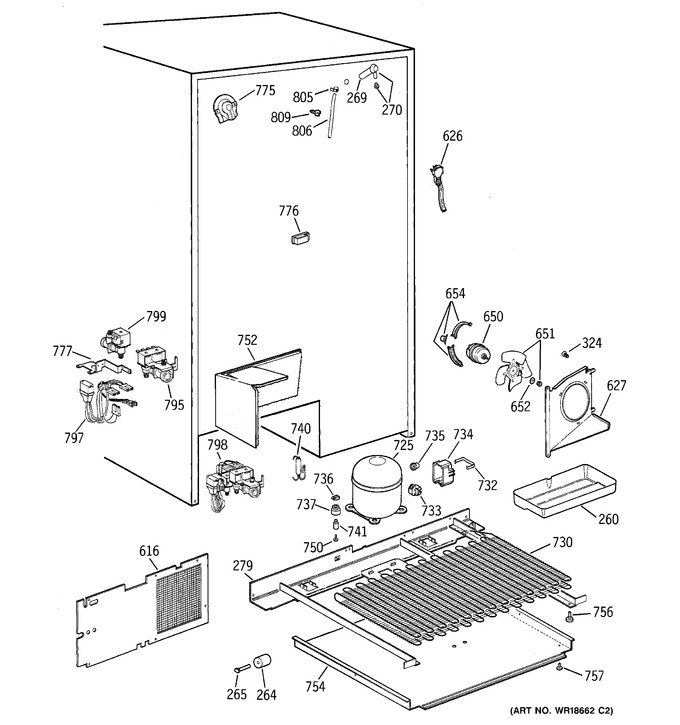

1 - Freezer Door
2 - Fresh Food Door
3 - Freezer Section
4 - Freezer Shelves
5 - Fresh Food Section
6 - Fresh Food Shelves
7 - Unit Parts
8 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 260 | WR32X10011 | Pan Water Disposal |
|
- | |||||
| 264 | WR2X8838 | Wheel Mobility Rear |
|
- | |||||
| 265 | WR1X2050 | Axle Wheel |
|
- | |||||
| 269 | WR2X7927 | Tube Water Fill I/m |
|
- | |||||
| 270 | WR1X5223 | Clamp Hose |
|
- | |||||
| 270 | WR2X8474 | Grommet Water Fill |
|
- | |||||
| 279 | WR17X10483 | Rail Mtg Asm |
|
- | |||||
| 324 | WG03F01629 | Plug Button Sm Wh (Replaces: WR2X7051) |
|
$ 4.78 | |||||
| 616 | WR82X10050 | Cover Access Asm |
|
- | |||||
| 626 | WR1X5278 | Clamp Cable |
|
- | |||||
| 626 | WR23X420 | Cord Power Asm |
|
- | |||||
| 627 | WR17X10189 | Housing Cond Fan |
|
- | |||||
| 650 | SM5211 | Motor Cond Fan (Replaces: WR60X10010) |
|
Immediately | $ 70.30 | ||||
| 651 | WR60X234 | Blade Cond Fan Asm |
|
- | |||||
| 651 | WR1X1515 | Nut Locking |
|
- | |||||
| 652 | WR1X1714 | Washer |
|
- | |||||
| 654 | WR2X9240 | Leg Cond Fan Hsg |
|
- | |||||
| 654 | WR1X2019 | Grommet Cond Fan Leg |
|
- | |||||
| 725 | WR87X10010 | Comp Repl Kit |
|
- | |||||
| 730 | WR84X213 | Cond Asm |
|
- | |||||
| 732 | WR2X7226 | Clamp-cover |
|
- | |||||
| 733 | WR7X277 | Ptcr |
|
- | |||||
| 734 | WR2X7834 | Cover Relay |
|
- | |||||
| 735 | WR08X10006 | Overload |
|
- | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 740 | WG03A03157 | Dryer Bifurcated Xh9 (Replaces: WR86X96) |
|
Immediately | $ 138.06 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 750 | WR1X1786 | Screw |
|
- | |||||
| 752 | WR82X10028 | Insulation |
|
- | |||||
| 754 | WR82X10054 | Floor |
|
- | |||||
| 756 | WR1X2021 | Pad |
|
- | |||||
| 757 | WR1X2035 | Fastener Push |
|
- | |||||
| 775 | WR02X10047 | Cover Water Line |
|
- | |||||
| 776 | WR02X10048 | Clamp Tube |
|
- | |||||
| 777 | WR02X10251 | Bracket Water Valve |
|
- | |||||
| 795 | WG03F00683 | Water Valve Asm (Replaces: WR57X10023) |
|
$ 105.46 | |||||
| 797 | WR23X10108 | Harness |
|
- | |||||
| 798 | WR57X10022 | Bracket & Valve Asm |
|
- | |||||
| 799 | WG03F00684 | Water Valve Asm (Replaces: WR57X10024) |
|
$ 115.25 | |||||
| 805 | WR2X3736 | Clamp Tube |
|
- | |||||
| 806 | WR02X10252 | Tube Plastic |
|
- | |||||
| 809 | WR1X1936 | Fastener Water Tube |
|
$ 7.35 |
