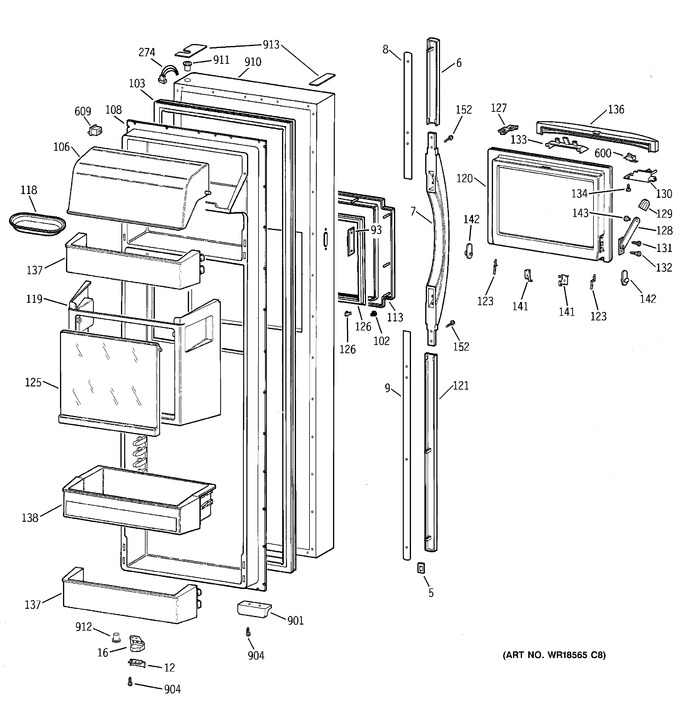

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Unit Parts


8 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR02X10432		Dart Clip		Appelez-nous	-
6	WR12X10323		Tail Handle Sxs Bq		Appelez-nous	-
7	WR12X10322		Handle Sxs Asm Bq		Appelez-nous	-
8	WR12X10150		Trim Handle Sxs		Appelez-nous	-
9	WR12X10190		Trim Handle Sxs		Appelez-nous	-
12	WR2X9244		Stop Door		Appelez-nous	-
16	WR02X10411		Cam Closure Bq Ff		Appelez-nous	-
93	WR23X10136		Sensor Door Asm Ff Bq		Appelez-nous	-
102	WR2X8162		Fastener Tubular		Appelez-nous	-
103	WR24X560		Gasket Door Ff Wh		Appelez-nous	-
106	WR22X524		Door Dairy Clear		Appelez-nous	-
108	WR77X10002		Door Inner Ff Cmk		Appelez-nous	-
113	WR38X10188		Trim Cmk Door		Appelez-nous	-
118	WR19X37		Dish Butter Glass		Appelez-nous	-
119	WR17X10051		Cover Access Cmk		Appelez-nous	-
120	WR17X10637		Door Foam Asm Cmk Bq		Appelez-nous	-
121	WR12X10324		Tail Handle Sxs Bq		Appelez-nous	-
123	WR02X10038		Spring Leaf Lh		Appelez-nous	-
123	WR02X10039		Spring Leaf Rh		Appelez-nous	-
125	WR17X10052		Door Access Cover		Appelez-nous	-
126	WR02X10040		Fastener Rectangular		Appelez-nous	-
126	WR24X10002		Gasket Cmk Door		Appelez-nous	-
127	WR02X10034		Latch Cmk Frame		Appelez-nous	-
128	WR13X10005		Hinge Arm Asm Cmk		Appelez-nous	-
129	WR02X10035		Cap Hinge Arm		Appelez-nous	-
130	WR02X10032		Bracket Switch Cmk		Appelez-nous	-
131	WR1X1707		Screw		Appelez-nous	-
132	WR02X10037		Stop Hinge Arm		Appelez-nous	-
133	WR02X10033		Trigger Cmk Door		Appelez-nous	-
134	WR01X10019		Scr 6-10 Pl Flp 1/2 S		Appelez-nous	-
136	WR17X10638		Handle Cmk Door		Appelez-nous	-
137	WR71X10204		Module & Trim Asm		Appelez-nous	-
138	WR71X10205		Bin & Label Asm		Appelez-nous	-
141	WR01X10017		Bracket Retainer Lh		Appelez-nous	-
141	WR01X10018		Bracket Retainer Rh		Appelez-nous	-
142	WR02X10465		Bushing Cmk Door		Appelez-nous	-
143	WR02X10041		Stud Hinge Arm		Appelez-nous	-
152	WR01A01241		Scr 8-18 Ab Fltr 5/8 S   (Replaces: WR01X10038)				$ 3.57
274	WR23X10038		Harness Ff Lt Sw		Appelez-nous	-
600	WR23X10027		Micro Switch		Appelez-nous	-
609	WR23X426		Switch Light Ff		Appelez-nous	-
901	WR10X10004		Strike Magnet Asm Bq		Appelez-nous	-
904	WR1X2134		Scr 10-32 Pnt 1.0 S Lw		Appelez-nous	-
910	WR78X10300		Door Foam Asm Ff Bq		Appelez-nous	-
911	WR01X10154		Thimble Door Top Bq		Appelez-nous	-
912	WR01X10156		Thimble Door Btm Ff Bq		Appelez-nous	-
913	WR01X10157		Corner Cover Ff Bq		Appelez-nous	-
