SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Unit Parts


8 - Ice Maker

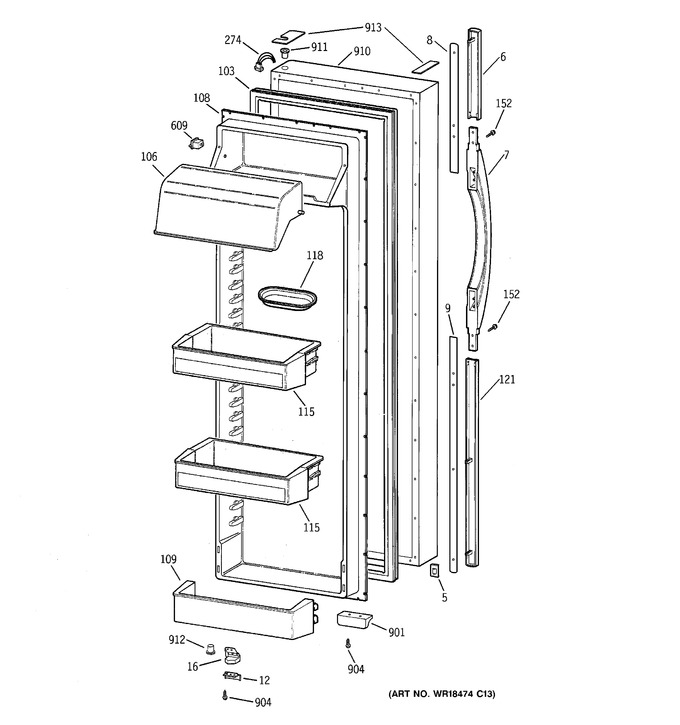

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR02X10432		Dart Clip		Appelez-nous	-
6	WR12X10323		Tail Handle Sxs Bq		Appelez-nous	-
7	WR12X10322		Handle Sxs Asm Bq		Appelez-nous	-
8	WR12X10150		Trim Handle Sxs		Appelez-nous	-
9	WR12X10190		Trim Handle Sxs		Appelez-nous	-
12	WR2X9244		Stop Door		Appelez-nous	-
16	WR02X10411		Cam Closure Bq Ff		Appelez-nous	-
103	WR24X560		Gasket Door Ff Wh		Appelez-nous	-
106	WR22X524		Door Dairy Clear		Appelez-nous	-
108	WR77X675		Door Inner Ff		Appelez-nous	-
109	WR71X10204		Module & Trim Asm		Appelez-nous	-
115	WR71X10212		Module & Trim Asm		Appelez-nous	-
118	WR19X37		Dish Butter Glass		Appelez-nous	-
121	WR12X10324		Tail Handle Sxs Bq		Appelez-nous	-
152	WR01A01241		Scr 8-18 Ab Fltr 5/8 S   (Replaces: WR01X10038)				$ 3.57
274	WR23X10041		Harness Ff Lt Sw		Appelez-nous	-
609	WR23X426		Switch Light Ff		Appelez-nous	-
901	WR10X10004		Strike Magnet Asm Bq		Appelez-nous	-
904	WR1X2134		Scr 10-32 Pnt 1.0 S Lw		Appelez-nous	-
910	WR78X10281		Door Foam Asm Ff Bq		Appelez-nous	-
911	WR01X10154		Thimble Door Top Bq		Appelez-nous	-
912	WR01X10156		Thimble Door Btm Ff Bq		Appelez-nous	-
913	WR01X10157		Corner Cover Ff Bq		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
