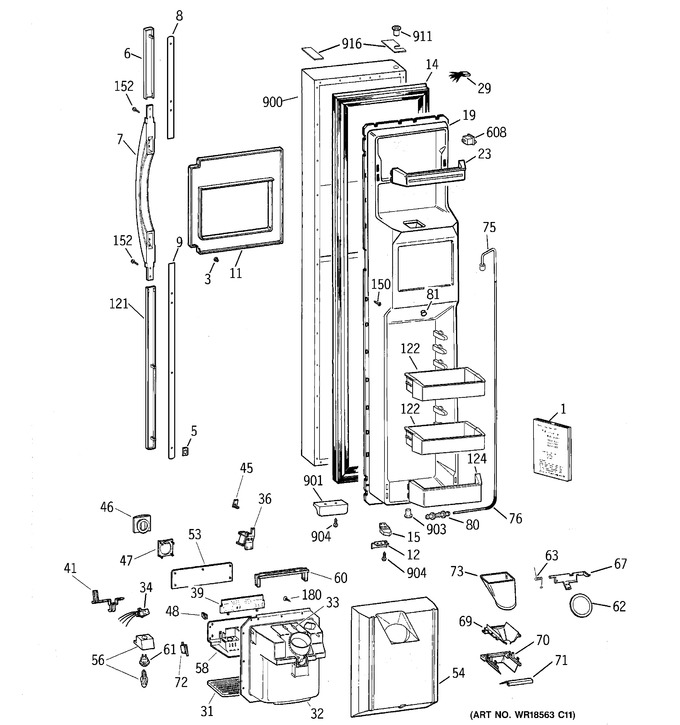

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51280		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60064		Pm Guide Owners		Appelez-nous	-
3	WR2X8669		Fastener Tubular		Appelez-nous	-
5	WR02X10432		Dart Clip		Appelez-nous	-
6	WR12X10151		Tail Handle Sxs Bk		Appelez-nous	-
7	WR12X10132		Handle Sxs Asm Bk		Appelez-nous	-
8	WR12X10150		Trim Handle Sxs		Appelez-nous	-
9	WR12X10190		Trim Handle Sxs		Appelez-nous	-
11	WR38X10123		Trim Recess Disp Bk		Appelez-nous	-
12	WR2X9244		Stop Door		Appelez-nous	-
14	WR24X561		Gasket Door Fz Bk		Appelez-nous	-
15	WR2X9247		Cam Closure Bk Fz		Appelez-nous	-
19	WR77X10003		Door Inner Fz		Appelez-nous	-
23	WR71X2619		Module Asm Fz		Appelez-nous	-
29	WR23X10118		Harness Dr Hinge Fz		Appelez-nous	-
31	WR17X4152		Grille Recess Bk		Appelez-nous	-
32	WR17X10514		Recess Disp Bk		Appelez-nous	-
33	WR51X420		Heater Recess		Appelez-nous	-
34	WR23X456		Harness Light Sw.		Appelez-nous	-
36	WR62X78		Solenoid Asm		Appelez-nous	-
39	WR55X129		Module Time Delay		Appelez-nous	-
41	WR17X3493		Cradle Actuator		Appelez-nous	-
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
46	WG03A00194		Pad Actuator Bk   (Replaces: WR2X8702)				$ 15.72
47	WR2X8681		Support Actuator Pad Bk		Appelez-nous	-
48	WR2X8676		Knob Recess Disp Bk		Appelez-nous	-
53	WR17X10077		Nameplate Recess Bk		Appelez-nous	-
54	WR17X3980		Insulation Recess		Appelez-nous	-
56	STD372071		Lamp 7c7		Appelez-nous	-
56	WR2X8686		Reflector Lamp Socket		Appelez-nous	-
58	WR17X3156		Shield Recess Disp Bk		Appelez-nous	-
60	WR2X8685		Cover Elect		Appelez-nous	-
61	WR2X9561		Socket Lamp E12		Appelez-nous	-
62	WR01L01914		Door Recess Asm   (Replaces: WR17X3093)				$ 58.69
63	WR2X8663		Spring Recess Door		Appelez-nous	-
67	WR17X3089		Crank Door Recess		Appelez-nous	-
69	WR17X3095		Funnel Recess Shield Bk		Appelez-nous	-
70	WR2X8943		Supt. Funnel Guard Bk		Appelez-nous	-
71	WR17X10282		Deflector Ice Bk		Appelez-nous	-
72	WG03L00633		Switch Cradle Actuator   (Replaces: WR23X366)				$ 58.69
73	WR17X3832		Chute Ice		Appelez-nous	-
75	WR17X3670		Grommet Tube Asm		Appelez-nous	-
76	WR2X8933		Sleeve Water Line		Appelez-nous	-
80	WG03A00026		Nut & Union Asm   (Replaces: WR2X8545)				$ 15.72
81	WR1X2077		Plug Button		Appelez-nous	-
121	WR12X10192		Tail Handle Sxs Bk		Appelez-nous	-
122	WR71X10203		Module Asm		Appelez-nous	-
124	WR71X10201		Module Asm		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
152	WR01A01241		Scr 8-18 Ab Fltr 5/8 S   (Replaces: WR01X10038)				$ 3.57
180	WR1X1966		Screw 6-32 Pl Ihw 3/8		Appelez-nous	-
608	WR01L07654		Switch Light Fz   (Replaces: WR23X427)				$ 27.16
900	WR78X10115		Door Foam Asm Fz Bk		Appelez-nous	-
901	WR10X126		Strike Magnet Asm Bk		Appelez-nous	-
903	WR1X2039		Thimble Door Btm Fz Bk		Appelez-nous	-
904	WR1X2134		Scr 10-32 Pnt 1.0 S Lw		Appelez-nous	-
911	WR1X2041		Thimble Door Top Bk		Appelez-nous	-
916	WR1X2038		Corner Cover Fz Bk		Appelez-nous	-
