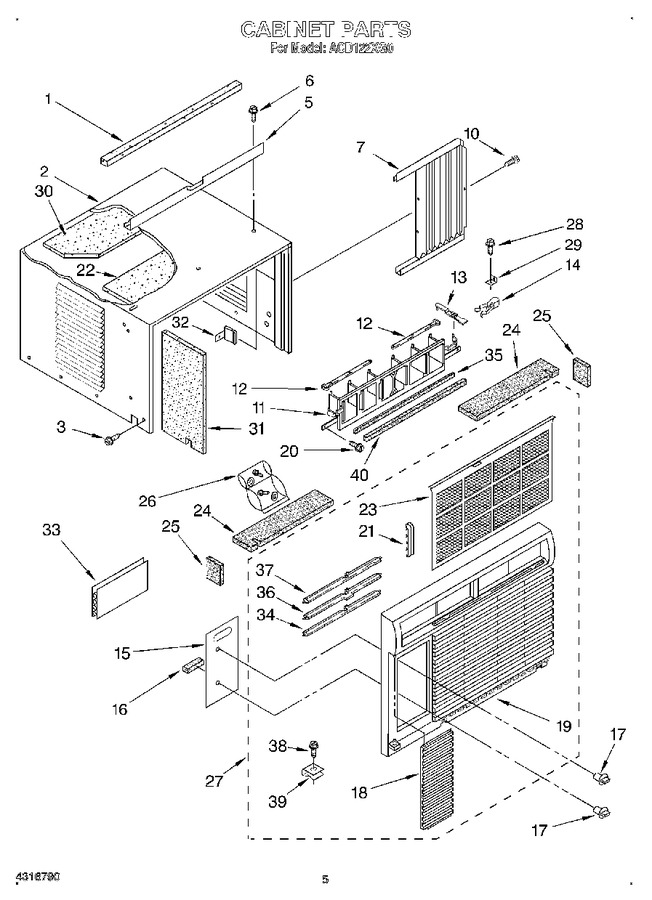

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 469877 | Seal, Meeting Rail |
|
- | |||||
| 2 | 1163513 | Cabinet |
|
- | |||||
| 3 | WP489069 | Screw, St 8 X 3/8 (8) (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 5 | 1169001 | Channel, Top Mounting |
|
- | |||||
| 6 | WP308685 | Screw, Sm No.10 X 1/2ab (3) (Replaces: 488720) |
|
Immediately | $ 7.08 | ||||
| 7 | 1164155 | Housing, Curtain (right Side) |
|
- | |||||
| 7 | 1164154 | Housing, Curtain (left Side) |
|
- | |||||
| 10 | 1161561 | Screw 3/8 Sg |
|
- | |||||
| 11 | 1159980 | Louver, Vertical (includes Nos. 12, 13, 14 And 35) |
|
- | |||||
| 12 | 855158 | Link, Vertical Louver (2) |
|
- | |||||
| 13 | 1161636 | Handle, Vertical Louver (2) |
|
- | |||||
| 14 | 644006 | Spring, Detent (2) |
|
- | |||||
| 15 | 1182071 | Plate, Escutcheon |
|
- | |||||
| 16 | 470036 | Spacer, Escutcheon Plate (2) |
|
- | |||||
| 17 | 1167618 | Knob, Control (2) |
|
- | |||||
| 18 | 1166720 | Door, Control |
|
- | |||||
| 19 | 1182104 | Front, Cabinet |
|
- | |||||
| 20 | 1159222 | Screw |
|
- | |||||
| 21 | 1166722 | Link, Horizontal Louver (2) |
|
- | |||||
| 22 | 1163429 | Insulation Cabinet Top |
|
- | |||||
| 23 | 1167300 | Filter, Air |
|
$ 27.62 | |||||
| 24 | 1167159 | Seal, (2) (front Top) |
|
- | |||||
| 25 | 1167158 | Seal, (2) (front Side) |
|
- | |||||
| 26 | 476180 | Bag, Accessory |
|
- | |||||
| 27 | 1182106 | Front, Complete |
|
- | |||||
| 28 | 488255 | Screw, Round Head Wood No.8 X 3/4 (1) |
|
- | |||||
| 29 | 644228 | Bracket, Window Lock |
|
- | |||||
| 30 | 1158501 | Insulation, Cabinet (top) |
|
- | |||||
| 31 | 1163431 | Insulation, Cab. (left, Side) |
|
- | |||||
| 31 | 1163430 | Insulation, Cab. (right, Side) |
|
- | |||||
| 32 | 1158294 | Clip, Louver |
|
- | |||||
| 33 | 212643 | Sealer, Gum Type (Replaces: 470168) |
|
Immediately | $ 86.78 | ||||
| 34 | 1166723 | Louver, Horizontal (6) |
|
- | |||||
| 35 | 855238 | Seal, Vertical Louver (back) |
|
- | |||||
| 36 | 1166724 | Louver, Horizontal (handle) (2) |
|
- | |||||
| 37 | 1166726 | Louver, Horizontal (notch Left) |
|
- | |||||
| 37 | 1166725 | Louver, Horizontal (notch Right) |
|
- | |||||
| 38 | 1157141 | Screw |
|
- | |||||
| 39 | 1157140 | Clip, Cabinet Front (2) |
|
- | |||||
| 40 | 1157622 | Seal (front, Vertical Louver) |
|
- |
