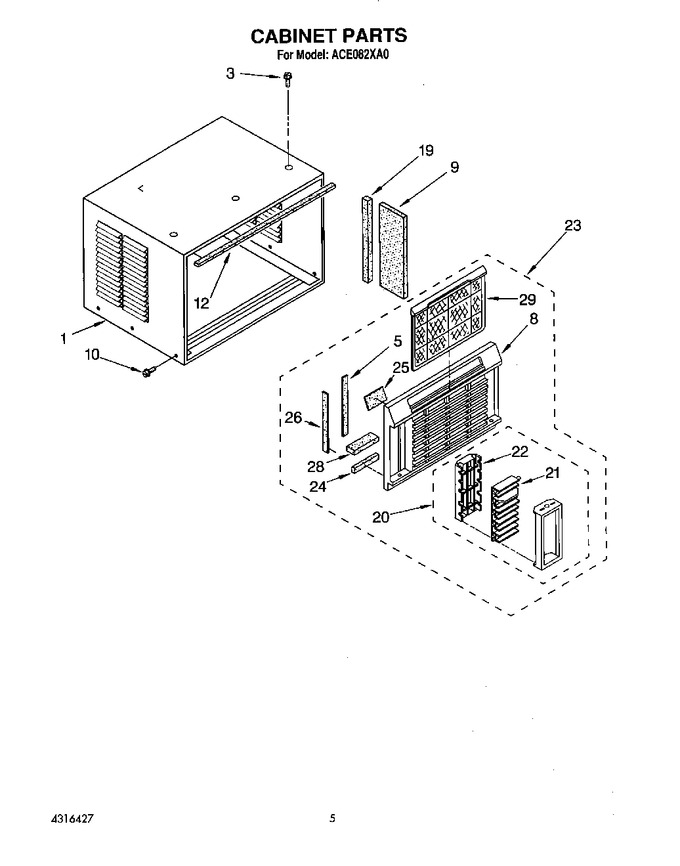

SELECT A DIAGRAM

01 - Unit, Literature


02 - Airflow And Control


03 - Cabinet


04 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1163055		Cabinet		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
5	1161747		Insulation, Side (2)		Appelez-nous	-
8	1156971		Cabinet Front		Appelez-nous	-
9	1161748		Insulation (2)		Appelez-nous	-
10	WP489069		Screw, 8 X 7/16 (6)   (Replaces: 1157158)			Immediately	$ 7.56
12	1158593		Seal, Cabinet Top		Appelez-nous	-
19	1159254		Seal, Strip		Appelez-nous	-
20	1156972		Cartridge, Complete		Appelez-nous	-
21	1156974		Horzontal Louver		Appelez-nous	-
22	1156975		Ribs, Vertical		Appelez-nous	-
23	1161557		Front, Complete		Appelez-nous	-
24	1161746		Seal, (2)		Appelez-nous	-
25	1159081		Seal		Appelez-nous	-
26	1159079		Seal (2)		Appelez-nous	-
28	1161205		Seal (2)		Appelez-nous	-
29	1156976		Filter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
