SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Unit Parts


8 - Icemaker Wr30x0328

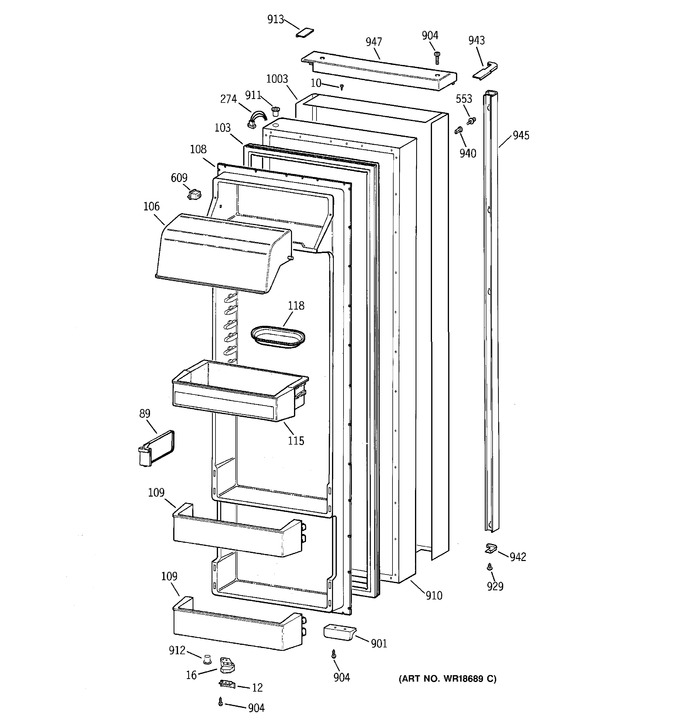

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR01X10065		Scr 8-18 Ba Por 5/8 Ss		Appelez-nous	-
12	WR02X10028		Stop Door Bk		Appelez-nous	-
16	WR2X9246		Cam Closure Bk Ff		Appelez-nous	-
89	WR2X9444		Snugger Module		Appelez-nous	-
103	WR24X562		Gasket Door Ff Bk		Appelez-nous	-
106	WR22X524		Door Dairy Clear		Appelez-nous	-
108	WR77X675		Door Inner Ff		Appelez-nous	-
109	WR71X2700		Module Asm		Appelez-nous	-
115	WR71X2702		Module Asm		Appelez-nous	-
118	WR19X37		Dish Butter Glass		Appelez-nous	-
274	WR23X10041		Harness Ff Lt Sw		Appelez-nous	-
553	WR01X10150		Screw Handle Mtg		Appelez-nous	-
609	WR23X426		Switch Light Ff		Appelez-nous	-
901	WR10X126		Strike Magnet Asm Bk		Appelez-nous	-
904	WR1X2134		Scr 10-32 Pnt 1.0 S Lw		Appelez-nous	-
910	WR78X10171		Door Foam Asm Ff Bk		Appelez-nous	-
911	WR1X2041		Thimble Door Top Bk		Appelez-nous	-
912	WR1X2132		Thimble Door Btm Ff Bk		Appelez-nous	-
913	WR17X10480		Cap Corner Hinge Ff		Appelez-nous	-
929	WR01X10151		Screw		Appelez-nous	-
940	WR02X10404		Fastener		Appelez-nous	-
942	WR17X10477		Cap Handle Bottom Ff		Appelez-nous	-
943	WR17X10479		Handle Top Cap Ff		Appelez-nous	-
945	WR12X10320		Handle Ff		Appelez-nous	-
947	WR17X10474		Trim Door Top Ff		Appelez-nous	-
1003	WR99X10010		Door Outer Ff Clad Ss		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
