SELECT A DIAGRAM

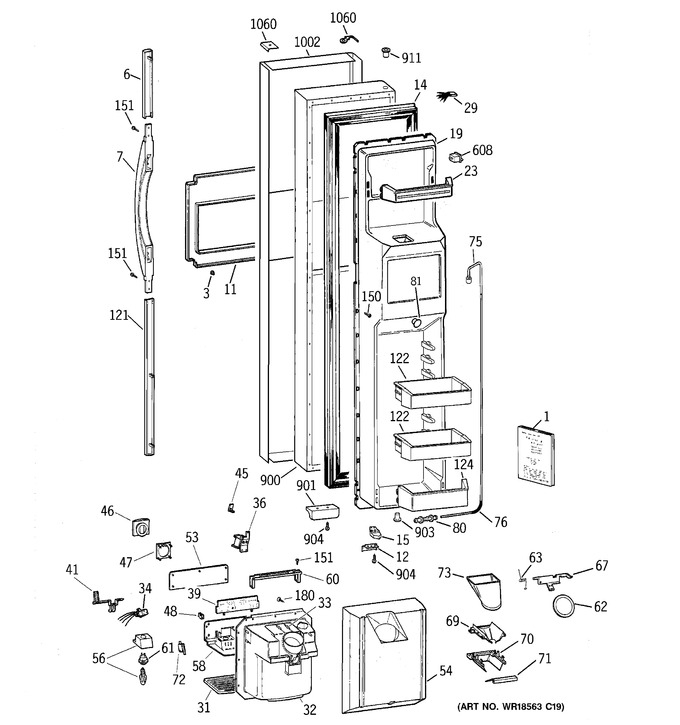

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Unit Parts


8 - Icemaker Wr30x0328


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60021		Pm Guide Owners		Appelez-nous	-
1	31-51255		Mini Manual Wiring		Appelez-nous	-
3	WR2X8669		Fastener Tubular		Appelez-nous	-
6	WR12X10151		Tail Handle Sxs Bk		Appelez-nous	-
7	WR12X10132		Handle Sxs Asm Bk		Appelez-nous	-
10	WR01X10065		Scr 8-18 Ba Por 5/8 Ss		Appelez-nous	-
11	WR38X10123		Trim Recess Disp Bk		Appelez-nous	-
12	WR02X10028		Stop Door Bk		Appelez-nous	-
14	WR24X561		Gasket Door Fz Bk		Appelez-nous	-
15	WR2X9247		Cam Closure Bk Fz		Appelez-nous	-
19	WR77X10001		Door Inner Fz		Appelez-nous	-
23	WR71X2619		Module Asm Fz		Appelez-nous	-
29	WR23X10118		Harness Dr Hinge Fz		Appelez-nous	-
31	WR17X4152		Grille Recess Bk		Appelez-nous	-
32	WR17X10514		Recess Disp Bk		Appelez-nous	-
33	WR51X420		Heater Recess		Appelez-nous	-
34	WR23X456		Harness Light Sw.		Appelez-nous	-
36	WR62X78		Solenoid Asm		Appelez-nous	-
39	WR55X129		Module Time Delay		Appelez-nous	-
41	WR17X3493		Cradle Actuator		Appelez-nous	-
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
46	WG03A00194		Pad Actuator Bk   (Replaces: WR2X8702)				$ 15.72
47	WR2X8681		Support Actuator Pad Bk		Appelez-nous	-
48	WR2X8676		Knob Recess Disp Bk		Appelez-nous	-
53	WR17X10077		Nameplate Recess Bk		Appelez-nous	-
54	WR17X4208		Insulation Recess		Appelez-nous	-
56	STD372071		Lamp 7c7		Appelez-nous	-
56	WR2X8686		Reflector Lamp Socket		Appelez-nous	-
58	WR17X3156		Shield Recess Disp Bk		Appelez-nous	-
60	WR2X8685		Cover Elect		Appelez-nous	-
61	WR2X9561		Socket Lamp E12		Appelez-nous	-
62	WR01L01914		Door Recess Asm   (Replaces: WR17X3093)				$ 58.69
63	WR2X8663		Spring Recess Door		Appelez-nous	-
67	WR17X3089		Crank Door Recess		Appelez-nous	-
69	WR17X3095		Funnel Recess Shield Bk		Appelez-nous	-
70	WR2X8943		Supt. Funnel Guard Bk		Appelez-nous	-
71	WR17X10282		Deflector Ice Bk		Appelez-nous	-
72	WG03L00633		Switch Cradle Actuator   (Replaces: WR23X366)				$ 58.69
73	WR17X4206		Chute Ice		Appelez-nous	-
75	WR17X3670		Grommet Tube Asm		Appelez-nous	-
76	WR2X8933		Sleeve Water Line		Appelez-nous	-
80	WG03A00026		Nut & Union Asm   (Replaces: WR2X8545)				$ 15.72
81	WR1X2077		Plug Button		Appelez-nous	-
86	WH2X940		Scr 8-32 Tt Fl 1/2 S		Appelez-nous	-
87	WZ04X0241		Scr 8-15 Ab Tr 1/2 Ss		Appelez-nous	-
121	WR12X10192		Tail Handle Sxs Bk		Appelez-nous	-
122	WG03F00953		Module Asm   (Replaces: WR71X2703)				$ 35.91
124	WR71X2701		Module Asm		Appelez-nous	-
134	WR01X10019		Scr 6-10 Pl Flp 1/2 S		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
151	WR1X1554		Screw 8-18 Ab Ihw 9/16 S		Appelez-nous	-
180	WR1X1966		Screw 6-32 Pl Ihw 3/8		Appelez-nous	-
303	WD1X1440		Housing Terminal		Appelez-nous	-
564	WR1X1194		Scr 1/4 14 Ba Hx 3/4 Sn		Appelez-nous	-
608	WR01L07654		Switch Light Fz   (Replaces: WR23X427)				$ 27.16
676	WZ04X0263		Scr 10-16 Ab Hxw 1/2		Appelez-nous	-
680	WR01X10123		Scr 6-19 Hi/lo Hxw 1/2 S		Appelez-nous	-
683	WR1X1825		Scr 8-32 Tt Pt 3/8		Appelez-nous	-
689	WZ05X0246		Scr 8-32 Spec Drill Pt		Appelez-nous	-
758	WD2X323		Screw 8-32 X 3/8 Sph		Appelez-nous	-
782	WB17X5060		Terminal Blk Asm (2 Pin)		Appelez-nous	-
862	WB1X1178		Screw		Appelez-nous	-
900	WR78X10172		Door Foam Asm Fz Bk		Appelez-nous	-
901	WR10X126		Strike Magnet Asm Bk		Appelez-nous	-
903	WR1X2039		Thimble Door Btm Fz Bk		Appelez-nous	-
904	WR1X2134		Scr 10-32 Pnt 1.0 S Lw		Appelez-nous	-
911	WR1X2041		Thimble Door Top Bk		Appelez-nous	-
1002	WR99X10006		Door Outer Fz Clad Ss		Appelez-nous	-
1060	WR02X10130		Cap Corner Hinge Fz		Appelez-nous	-
1060	WR02X10132		Cap Corner Mullion Fz		Appelez-nous	-
1064	WR01X10066		Scr 10-24 Tr Tpt 1/2 Ss		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
